Metalux®

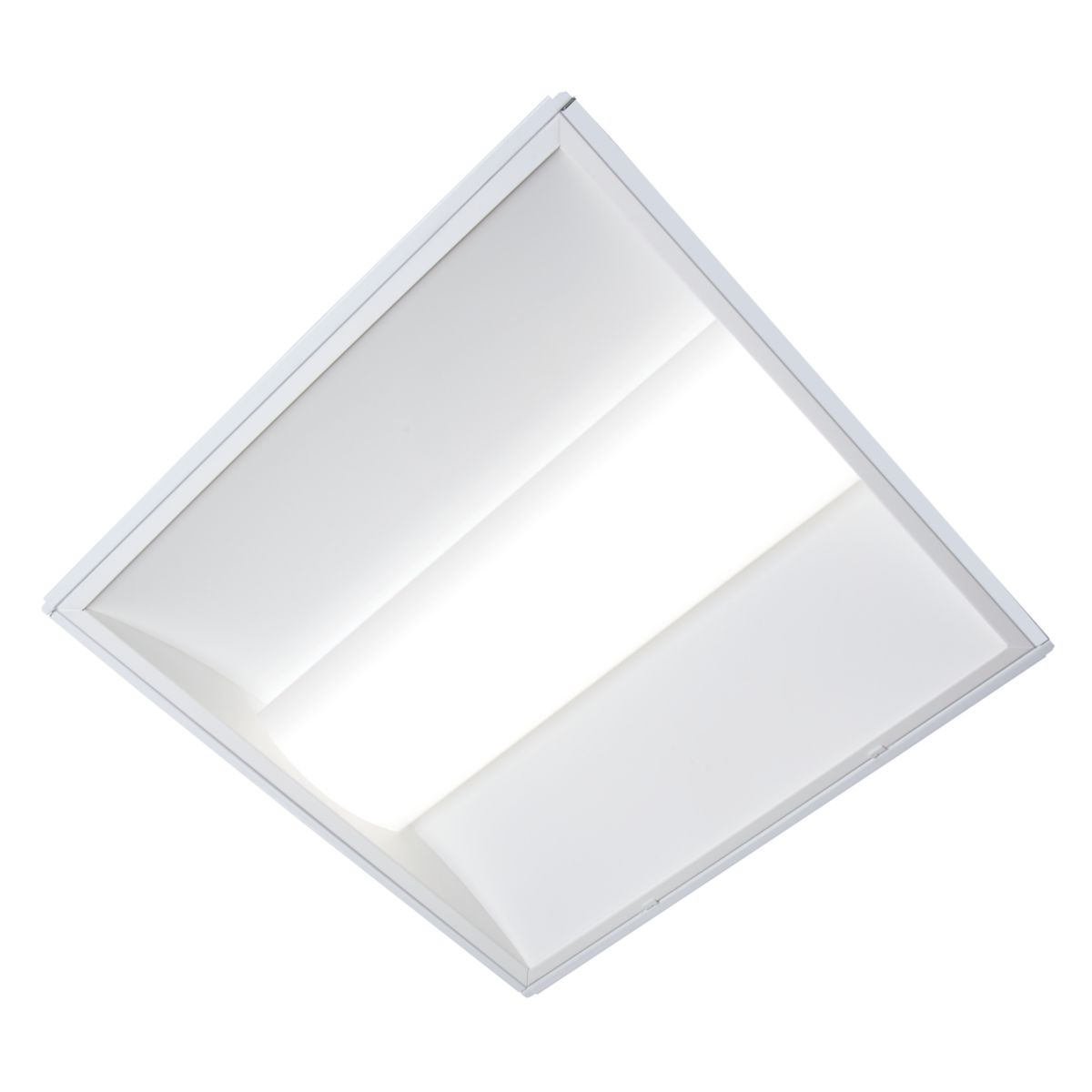

Metalux 22CZ-LD5-34-UNV-L835-CD1-U 2x2 Cruze Direct/Indirect Specification Grade Specification Recessed Troffer, LED 5.0 Lamp, 29.4 W Fixt
Metalux®
Metalux 22CZ-LD5-34-UNV-L835-CD1-U 2x2 Cruze Direct/Indirect Specification Grade Specification Recessed Troffer, LED 5.0 Lamp, 29.4 W Fixt
SKU1023924
MFGR #22CZ-LD5-34-UNV-L835-CD1-U
Your Cost: $128.22/ea
Metalux Specification Recessed Troffer, Direct/Indirect Specification Grade, Series: 2x2 Cruze, 120 to 277 VAC, 29.4 W Fixture, 0.106 A, LED 5.0 Lamp, 119 Lumens/W Light Output, 60000 hr Average Life, 3500 K Color Temperature, 85 CRI, 0 to 10 VDC Dimmable Ballast, Frosted Ribbed Acrylic Lens, 3400 Lumens, Ceiling Mounting, Cold Rolled Steel Housing Material, 24-1/2 in L x 24 in W x 3-1/2 in H Dimensions
Metalux Specification Recessed Troffer, Direct/Indirect Specification Grade, Series: 2x2 Cruze, 120 to 277 VAC, 29.4 W Fixture, 0.106 A, LED 5.0 Lamp, 119 Lumens/W Light Output, 60000 hr Average Life, 3500 K Color Temperature, 85 CRI, 0 to 10 VDC Dimmable Ballast, Frosted Ribbed Acrylic Lens, 3400 Lumens, Ceiling Mounting, Cold Rolled Steel Housing Material, 24-1/2 in L x 24 in W x 3-1/2 in H Dimensions
Amperage Rating .106 at 277V Application Commercial Office Spaces, Schools, Hospitals, Retail Merchandising Areas, Lighting Applications ARRA Compliant C Ballast Type N/A Buy American Compliant C Catalog Number 22CZ-LD5-34-UNV-L835-CD1-U Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 16.1000 lb Gross Weight per Pack Metric 7.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9405116020 Height 3.75 in Height [Metric] 9.5250 cm Length 24.81 in Length [Metric] 63.0250 cm Lumens 3.4k lm Material Steel Mounting Recessed Number Of Lamps 1 Power Sources N/A Size 24.813 IN Length 24.312 IN Width 3.75 IN Height Standard UL/cUL Listed - Damp Location;DLC Qualified Sub Brand Cruze SB Type Recessed Direct / Indirect UNSPSC 39112507 UPC 11 08008379650 UPC 12 080083796502 Wattage 29.4 W Width 24.31 in Width [Metric] 61.7525 cm Stock Status NONSTOCK Brand Metalux® Manufacturer Cooper Lighting Solutions Lamp Type LED Voltage Rating 120/277 V Commercial Office Spaces, Schools, Hospitals, Retail Merchandising Areas, Lighting Applications Matte white door provides access to drivers and LED from below The Cruze series features efficiency, quality and performance Rigid housing is die formed of code gauge prime cold rolled steel and features full lengt Side flanges are hemmed Innovative design provides superior lens brightness uniformity and visual comfort Unibody endplates are securely attached with interlocking tabs and screws Four auxiliary fixture end suspension points provided 0.106 A at 277 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | .106 at 277V |
| Application | Commercial Office Spaces, Schools, Hospitals, Retail Merchandising Areas, Lighting Applications |
| ARRA Compliant | C |
| Ballast Type | N/A |
| Buy American Compliant | C |
| Catalog Number | 22CZ-LD5-34-UNV-L835-CD1-U |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 16.1000 lb |
| Gross Weight per Pack Metric | 7.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9405116020 |
| Height | 3.75 in |
| Height [Metric] | 9.5250 cm |
| Length | 24.81 in |
| Length [Metric] | 63.0250 cm |
| Lumens | 3.4k lm |
| Material | Steel |
| Mounting | Recessed |
| Number Of Lamps | 1 |
| Power Sources | N/A |
| Size | 24.813 IN Length 24.312 IN Width 3.75 IN Height |
| Standard | UL/cUL Listed - Damp Location;DLC Qualified |
| Sub Brand | Cruze SB |
| Type | Recessed Direct / Indirect |
| UNSPSC | 39112507 |
| UPC 11 | 08008379650 |
| UPC 12 | 080083796502 |
| Wattage | 29.4 W |
| Width | 24.31 in |
| Width [Metric] | 61.7525 cm |
| Stock Status | NONSTOCK |
| Brand | Metalux® |
| Manufacturer | Cooper Lighting Solutions |
| Lamp Type | LED |
| Voltage Rating | 120/277 V |
| Commercial Office Spaces, Schools, Hospitals, Retail Merchandising Areas, Lighting Applications |
| Matte white door provides access to drivers and LED from below |
| The Cruze series features efficiency, quality and performance |
| Rigid housing is die formed of code gauge prime cold rolled steel and features full lengt |
| Side flanges are hemmed |
| Innovative design provides superior lens brightness uniformity and visual comfort |
| Unibody endplates are securely attached with interlocking tabs and screws |
| Four auxiliary fixture end suspension points provided |
| 0.106 A at 277 VAC |
