Metalux®

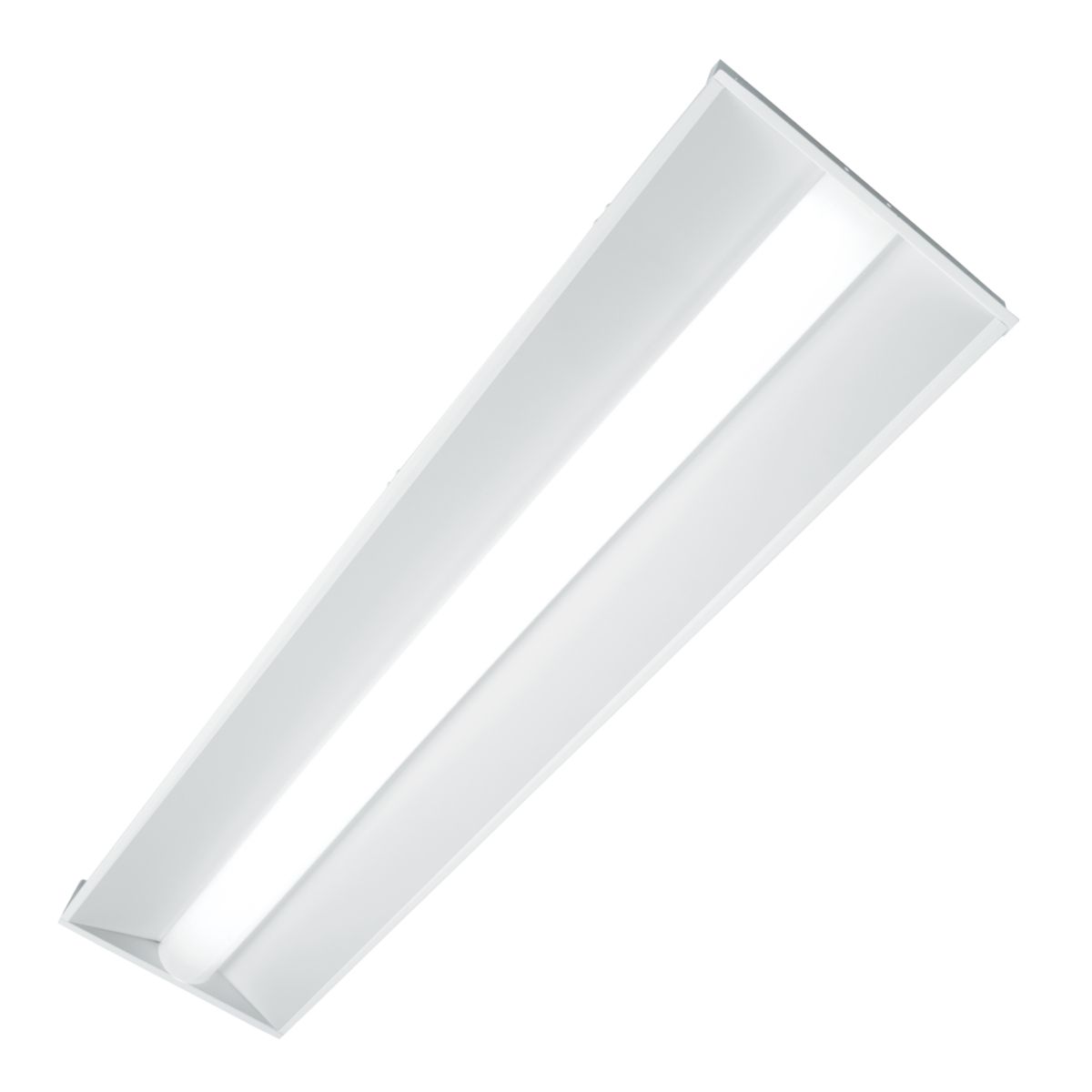

Metalux 14RTC3440 RTC Blank Commercial Recessed Troffer, LED Lamp, 120/277 VAC, Cold Rolled Steel Housing
Custom_Product_Images_Illustration
Metalux®
Metalux 14RTC3440 RTC Blank Commercial Recessed Troffer, LED Lamp, 120/277 VAC, Cold Rolled Steel Housing
SKUPDW~12647015
MFGR #14RTC3440
Price Not Available
Metalux Commercial Recessed Troffer, Blank, Series: RTC, 120/277 VAC, 0.103 A, LED Lamp, 28.6 W Lamp, 123 Lumens/W Light Output, 60000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimmable Ballast, Frosted Polycarbonate Lens, 3400 Lumens, Ceiling Mounting, Cold Rolled Steel Housing Material, 4 ft L x 1 ft W x 3-7/8 in H Dimensions
Metalux Commercial Recessed Troffer, Blank, Series: RTC, 120/277 VAC, 0.103 A, LED Lamp, 28.6 W Lamp, 123 Lumens/W Light Output, 60000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimmable Ballast, Frosted Polycarbonate Lens, 3400 Lumens, Ceiling Mounting, Cold Rolled Steel Housing Material, 4 ft L x 1 ft W x 3-7/8 in H Dimensions
Amperage Rating 0.103@277V A Application For both new construction, remodel, replacement of fluorescent troffers in commercial office sp ARRA Compliant C Buy American Compliant C Catalog Number 14RTC3440 Country of Origin CN Currency USD EU RoHS Indicator C Gross Weight Per Pack 19.0000 lb Gross Weight per Pack Metric 8.62 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9405106020 Height 3.88 in Height [Metric] 9.8425 cm Length 50.44 in Length [Metric] 128.1125 cm Mounting Recessed Standard DLC Certified;DLC Premium;ISO Certified;IC Rated;cULus Listed - Damp Location;RoHS Compliant;LM79/LM80 Compliant;TM21 standards;California Title 24;NEMA 410 Compliant Style (blank) Sub Brand RTC LED Center Basket Series Type Recessed UNSPSC 39111534 UPC 11 08008380257 UPC 12 080083802579 Wattage 29 W Width 13.88 in Width [Metric] 35.2425 cm Brand Metalux® Manufacturer Cooper Lighting Solutions Lamp Type LED Voltage Rating 120/277 V For both new construction, remodel, replacement of fluorescent troffers in commercial office sp Shallow plenum - under 2.5" deep RTC fits the most challenging spaces Shallow plenum under 2-1/2 in D RTC fits the most challenging spaces Up to 133 Lumens/W delivering up to 56% energy savings Lumen maintenance L75, 60000 hrs Impact-resistant polycarbonate lens with linear prisms for uniformity Easy to install - standard access plate and linear disconnect included Unibody matte white paint after fabrication finish 0.25 A at 120 VAC, 0.103 A at 277 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 0.103@277V A |
| Application | For both new construction, remodel, replacement of fluorescent troffers in commercial office sp |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 14RTC3440 |
| Country of Origin | CN |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 19.0000 lb |
| Gross Weight per Pack Metric | 8.62 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9405106020 |
| Height | 3.88 in |
| Height [Metric] | 9.8425 cm |
| Length | 50.44 in |
| Length [Metric] | 128.1125 cm |
| Mounting | Recessed |
| Standard | DLC Certified;DLC Premium;ISO Certified;IC Rated;cULus Listed - Damp Location;RoHS Compliant;LM79/LM80 Compliant;TM21 standards;California Title 24;NEMA 410 Compliant |
| Style | (blank) |
| Sub Brand | RTC LED Center Basket Series |
| Type | Recessed |
| UNSPSC | 39111534 |
| UPC 11 | 08008380257 |
| UPC 12 | 080083802579 |
| Wattage | 29 W |
| Width | 13.88 in |
| Width [Metric] | 35.2425 cm |
| Brand | Metalux® |
| Manufacturer | Cooper Lighting Solutions |
| Lamp Type | LED |
| Voltage Rating | 120/277 V |
| For both new construction, remodel, replacement of fluorescent troffers in commercial office sp |
| Shallow plenum - under 2.5" deep RTC fits the most challenging spaces |
| Shallow plenum under 2-1/2 in D RTC fits the most challenging spaces |
| Up to 133 Lumens/W delivering up to 56% energy savings |
| Lumen maintenance L75, 60000 hrs |
| Impact-resistant polycarbonate lens with linear prisms for uniformity |
| Easy to install - standard access plate and linear disconnect included |
| Unibody matte white paint after fabrication finish |
| 0.25 A at 120 VAC, 0.103 A at 277 VAC |
