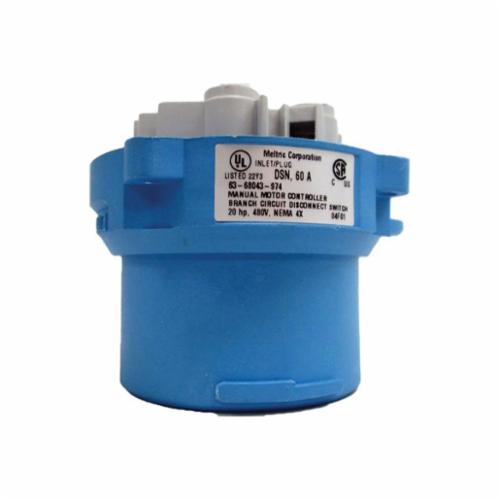

Meltric Decontactor™ 63-68047 DSN60 Pin and Sleeve Inlet, 277/480 VAC, 60 A, 3 Poles, Blue
Pin & Sleeve Inlets
631437
MFG #: 63-68047
Meltric
291.65000
/ ea
DSN series products are switch and hp rated for quick, safe equipment changeouts. DSNs are ideal for wet environments since they offer Type 4X watertightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
- 5 Years(WEB WARRANTY URL)
- Video - http://www.meltric.com/html/decontactor-video.html(Video)
- WEB BROCHURE URL - 2011-dsn.pdf(WEB BROCHURE URL)
- WEB CATALOG URL - IDW_DOCUMENT_5ab10d579c2afa48bfed9bd43acb84dd75773c3ebd9f3d51845c7e47becb768d.pdf(WEB CATALOG URL)
- WEB INSTALL INSTR URL - MELTRIC_63_38072_Installation_Instructions.pdf(WEB INSTALL INSTR URL)
- WEB SELLER HOME PAGE URL - index.html(WEB SELLER HOME PAGE URL)
- WEB TECH DRAWING URL - MELTRIC_63_68043_Technical_Drawing.pdf(WEB TECH DRAWING URL)
- Features
| 12 to 4 AWG /14 AWG auxiliary contacts |
| Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance |
| Lockout tagout provisions allows plug or receptacle to be easily locked out and tagged |
| Features: Switch Ratings (AC Only): Branch Circuit & Motor Circuit Disconnect Switching; Short Circuit Rating: 100 KAMP Close & Withstand Testing Was Performed With RK1 Current Limiting Fuses Sized At 400 PEC Of The Highest Full Load Motor Ampacity Associated With The Devices HP Rating; Listings: UL, CSA, IEC, CE Contact Customer Service; Horsepower Ratings: 20 HP At 3 PH, 480 V; Polarity: 3P+N+G; Temperature Rating: -40 To 140 DEG F |
