MELTRIC

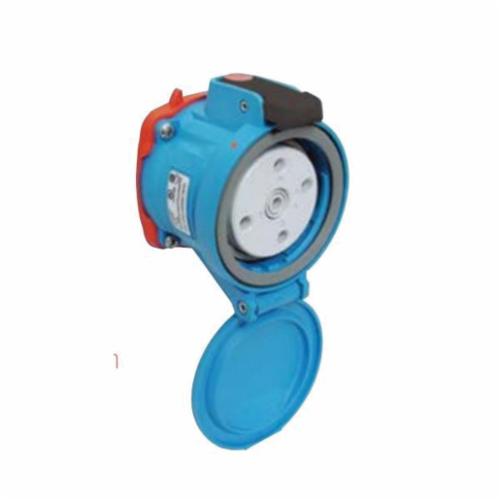

Meltric Decontactor™ 63-64163 DSN60 Pin and Sleeve Receptacle, 208 VAC, 60 A, 3 Poles, 4 Wires, Blue
MELTRIC
Meltric Decontactor™ 63-64163 DSN60 Pin and Sleeve Receptacle, 208 VAC, 60 A, 3 Poles, 4 Wires, Blue
SKU547042
MFGR #63-64163
Your Cost: $459.84/ea
List: DSN Series products are switch and hp rated for quick, safe equipment changeouts. DSN's are ideal for wet environments since they offer Type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
DSN Series products are switch and hp rated for quick, safe equipment changeouts. DSN's are ideal for wet environments since they offer Type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
Catalog Number 63-64163 Country of Origin USA Environmental Conditions -40 to 140 ° F Gross Weight Per Pack 1.0220 lb Material Polyester NEMA Rating NEMA 4X, IP66/IP67 Number Of Poles 3 Phase 3 Size 3.23 DIA X 3.83 in Standard UL, CSA, NOM, IEC, CE, NFPA 70E Standards CE Marked, CSA Certified, IEC Rated, NFPA 70E, NOM Certified, RoHS Complaint, UL Listed Sub Brand Decontactor Type Receptacle UNSPSC 39121406 UPC 11 78447454773 UPC 12 78447454773 Wire Size 12 to 4 AWG Stock Status NONSTOCK Brand MELTRIC Manufacturer Meltric Corporation Amperage Rating 60 A Color Blue Number of Wires 4 Voltage Rating 208 V With Ground, Horsepower Rating 7 1/2 HP at 208 V, Short Circuit Rating 100 KAMP 3P+G 12 to 4 AWG 100 kA short circuit rating 3 phase Switch rated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Catalog Number | 63-64163 |
| Country of Origin | USA |
| Environmental Conditions | -40 to 140 ° F |
| Gross Weight Per Pack | 1.0220 lb |
| Material | Polyester |
| NEMA Rating | NEMA 4X, IP66/IP67 |
| Number Of Poles | 3 |
| Phase | 3 |
| Size | 3.23 DIA X 3.83 in |
| Standard | UL, CSA, NOM, IEC, CE, NFPA 70E |
| Standards | CE Marked, CSA Certified, IEC Rated, NFPA 70E, NOM Certified, RoHS Complaint, UL Listed |
| Sub Brand | Decontactor |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78447454773 |
| UPC 12 | 78447454773 |
| Wire Size | 12 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | MELTRIC |
| Manufacturer | Meltric Corporation |
| Amperage Rating | 60 A |
| Color | Blue |
| Number of Wires | 4 |
| Voltage Rating | 208 V |
| With Ground, Horsepower Rating 7 1/2 HP at 208 V, Short Circuit Rating 100 KAMP |
| 3P+G |
| 12 to 4 AWG |
| 100 kA short circuit rating |
| 3 phase |
| Switch rated |
