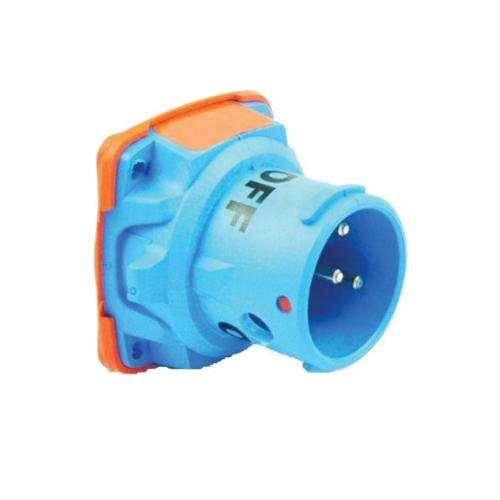

Meltric Decontactor™ 63-18162 DSN20 Pin and Sleeve Inlet, 208 VAC, 20 A, 2 Poles, Blue
Custom_Product_Images_Illustration
Meltric Decontactor™ 63-18162 DSN20 Pin and Sleeve Inlet, 208 VAC, 20 A, 2 Poles, Blue
SKU489265
MFGR #63-18162
Your Cost: $48.13/ea
DSN series products are switch and hp rated for quick, safe equipment changeouts. DSNs are ideal for wet environments since they offer Type 4X watertightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
DSN series products are switch and hp rated for quick, safe equipment changeouts. DSNs are ideal for wet environments since they offer Type 4X watertightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
Catalog Number 63-18162 Country of Origin USA Dimensions 2.24 in Dia x 1.97 in L Enclosure IP66/IP67/IP69k Frequency Rating 60 Hz Gross Weight Per Pack 0.2530 lb Horsepower 1/2 hp, 2 hp Material Polyester NEMA Rating NEMA 4X Number Of Poles 2 Series DSN20 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682UL 1682CSA 182.1CE MarkedNOM CertifiedIEC CertifiedNFPA 70E Temperature Rating -40 to 140 °F Terminal Type Screw Type Switch Rated UNSPSC 39121402 UPC 11 78447454678 UPC 12 78447454678 Stock Status NONSTOCK Brand MELTRIC Manufacturer Meltric Corporation Amperage Rating 20 A Color Blue Number of Wires 3 Voltage Rating 120/127/208/220 VAC Enclosure NEMA 4X, IP66/IP67, Wiring Capacity 14 To 12 AWG, Horsepower Rating 2 HP At 208 V 3 Phase, Polarity 2 Pole, Ground, Short Circuit Rating 100 KAMP Switch and horsepower rated (AC only 14 to 12 AWG 100 kA short circuit rating Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions Lockout tagout provisions allows plug or receptacle to be easily locked out and tagged 14 to 12 AWG wire 2 hp at 208 VAC 3 phase
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Catalog Number | 63-18162 |
| Country of Origin | USA |
| Dimensions | 2.24 in Dia x 1.97 in L |
| Enclosure | IP66/IP67/IP69k |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 0.2530 lb |
| Horsepower | 1/2 hp, 2 hp |
| Material | Polyester |
| NEMA Rating | NEMA 4X |
| Number Of Poles | 2 |
| Series | DSN20 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682UL 1682CSA 182.1CE MarkedNOM CertifiedIEC CertifiedNFPA 70E |
| Temperature Rating | -40 to 140 °F |
| Terminal Type | Screw |
| Type | Switch Rated |
| UNSPSC | 39121402 |
| UPC 11 | 78447454678 |
| UPC 12 | 78447454678 |
| Stock Status | NONSTOCK |
| Brand | MELTRIC |
| Manufacturer | Meltric Corporation |
| Amperage Rating | 20 A |
| Color | Blue |
| Number of Wires | 3 |
| Voltage Rating | 120/127/208/220 VAC |
| Enclosure NEMA 4X, IP66/IP67, Wiring Capacity 14 To 12 AWG, Horsepower Rating 2 HP At 208 V 3 Phase, Polarity 2 Pole, Ground, Short Circuit Rating 100 KAMP |
| Switch and horsepower rated (AC only |
| 14 to 12 AWG |
| 100 kA short circuit rating |
| Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance |
| Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions |
| Lockout tagout provisions allows plug or receptacle to be easily locked out and tagged |
| 14 to 12 AWG wire |
| 2 hp at 208 VAC 3 phase |
