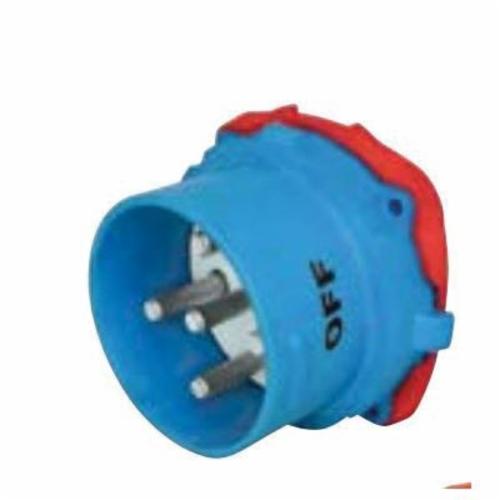

Meltric Decontactor™ 33-98163 DS100 Pin and Sleeve Inlet, 208 VAC, 100 A, 3 Poles, Blue
Pin & Sleeve Inlets
652466
MFG #: 33-98163
Meltric
530.47000
/ ea
DS series Decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DSs environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
- Applications
- Features
| Metal, Quarry, Automotive, Mining Industries, Heavy Industry and High Amperage Equipment Applications |
| Switch and horsepower rated (AC only |
| 65 to 100 kA short circuit rated |
| Up to 200 A amperage rating |
| Up to 4 auxiliary contacts |
| Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions |
| Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance |
| 4 to 2/0 AWG wiring capacity |
| 3 hp at 120 VAC, 7-1/2 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 30 hp at 480 VAC 3-phase horsepower rating |
| Enclosure NEMA 3R, IP54/IP55, Wiring Capacity 4 To 2/0 AWG, Polarity 3 Pole, Ground, Short Circuit Rating 65 KAMP |
