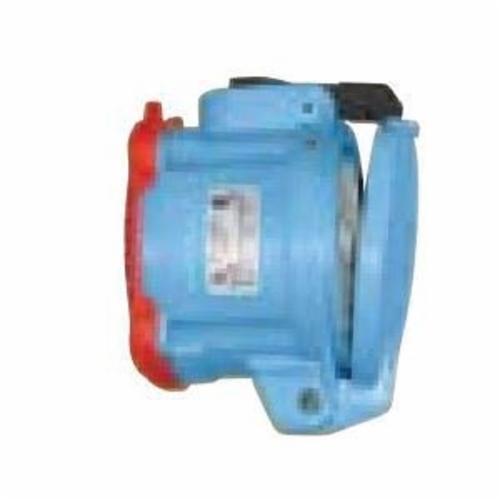

Meltric Decontactor™ 33-64043-NC DS60 Pin and Sleeve Receptacle, 480 VAC, 60 A, 3 Poles, 4 Wires, Blue
Meltric Decontactor™ 33-64043-NC DS60 Pin and Sleeve Receptacle, 480 VAC, 60 A, 3 Poles, 4 Wires, Blue
SKU290136
MFGR #33-64043-NC
Your Cost: $561.11/ea
List: DS Series Decontactor™s provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
DS Series Decontactor™s provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
Catalog Number 33-64043-NC Country of Origin USA Dimensions 3.86 in Dia x 4.06 in L Enclosure IP54/IP55 Frequency Rating 60 Hz Gross Weight Per Pack 1.5060 lb Horsepower 25 hp Material Polyester NEMA Rating NEMA 3R Number Of Poles 3 Series DS60 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682/1682CSA 182.1CE CertifiedNOM CertifiedIEC CertifiedNFPA 70E Temperature Rating -40 to 140 °F Terminal Type Screw Type Switch Rated UNSPSC 39121406 UPC 11 78447454906 UPC 12 78447454906 Stock Status NONSTOCK Brand MELTRIC Manufacturer Meltric Corporation Amperage Rating 60 A Color Blue Number of Wires 4 Voltage Rating 255/277/440/480 VAC With Ground, Horsepower Rating 20 HP at 480 V, Includes Closed Lid Configuration, Short Circuit Rating 100 KAMP Switch and hp rated (AC only) 65 to 100 kA short circuit rated Amperage rating up to 200 A Up to 6 auxiliary contacts Spring assisted screw terminals patented design assures ''tighten and forget'' confidence Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations Lid provides Type 3R water protection (4X optional) for additional protection in harsh environments OFF button press to de-energize and provides push button circuit disconnection Dead front/safety shutter assures safety by preventing user access to live parts 3 hp at 120 VAC, 5 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 25 hp at 480/600 VAC 3-phase horsepower rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Catalog Number | 33-64043-NC |
| Country of Origin | USA |
| Dimensions | 3.86 in Dia x 4.06 in L |
| Enclosure | IP54/IP55 |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 1.5060 lb |
| Horsepower | 25 hp |
| Material | Polyester |
| NEMA Rating | NEMA 3R |
| Number Of Poles | 3 |
| Series | DS60 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682/1682CSA 182.1CE CertifiedNOM CertifiedIEC CertifiedNFPA 70E |
| Temperature Rating | -40 to 140 °F |
| Terminal Type | Screw |
| Type | Switch Rated |
| UNSPSC | 39121406 |
| UPC 11 | 78447454906 |
| UPC 12 | 78447454906 |
| Stock Status | NONSTOCK |
| Brand | MELTRIC |
| Manufacturer | Meltric Corporation |
| Amperage Rating | 60 A |
| Color | Blue |
| Number of Wires | 4 |
| Voltage Rating | 255/277/440/480 VAC |
| With Ground, Horsepower Rating 20 HP at 480 V, Includes Closed Lid Configuration, Short Circuit Rating 100 KAMP |
| Switch and hp rated (AC only) |
| 65 to 100 kA short circuit rated |
| Amperage rating up to 200 A |
| Up to 6 auxiliary contacts |
| Spring assisted screw terminals patented design assures ''tighten and forget'' confidence |
| Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations |
| Lid provides Type 3R water protection (4X optional) for additional protection in harsh environments |
| OFF button press to de-energize and provides push button circuit disconnection |
| Dead front/safety shutter assures safety by preventing user access to live parts |
| 3 hp at 120 VAC, 5 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 25 hp at 480/600 VAC 3-phase horsepower rating |
