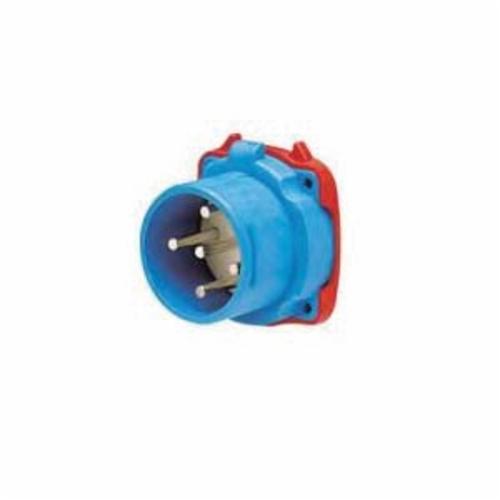

Meltric Decontactor™ 33-38143 DS30 Pin and Sleeve Inlet, 600 VAC, 30 A, 3 Poles, 4 Wires, Blue

Pin & Sleeve Inlets
1169875 MFG #: 33-38143
Meltric
179.45000 / ea
DS series decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DSs environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
QTY
  • Applications
  • Features
Metal, Quarry, Automotive, Mining Industries, Heavy Industry and High Amperage Equipment Applications
Switch and horsepower rated (AC only
65 to 100 kA short circuit rated
Up to 200 A amperage rating
Up to 4 auxiliary contacts
Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
14 to 6 AWG wiring capacity
1-1/2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 15 hp at 480/600 VAC 3-phase horsepower rating
Enclosure NEMA 3R, IP54/IP55, Wiring Capacity 14 To 6 AWG, Polarity 3 Pole, Ground, Short Circuit Rating 100 KAMP
