MELTRIC

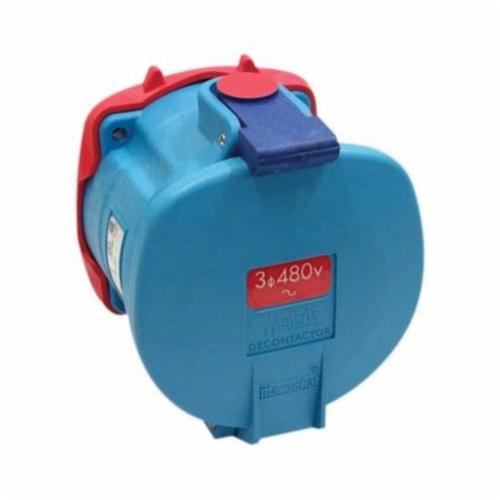

Meltric Decontactor™ 31-64243-K04 DR100 Standard Duty Pin and Sleeve Receptacle, 480 VAC, 100 A, 3 Poles, 4 Wires, Blue
Custom_Product_Images_Illustration
MELTRIC
Meltric Decontactor™ 31-64243-K04 DR100 Standard Duty Pin and Sleeve Receptacle, 480 VAC, 100 A, 3 Poles, 4 Wires, Blue
SKU1206651
MFGR #31-64243-K04
Your Cost: $577.24/ea
List: DR Series plugs and receptacles provide safe, economical and robust connections for applications up to 400A. Some DR models are non-current interrupting rated, while others are suitable for current interruption on resistive loads. The DR's spring-loaded, silver-nickel butt contacts and dead front construction provide more consistent and reliable connections and significant improvements in operator safety compared to competitive devices.
DR Series plugs and receptacles provide safe, economical and robust connections for applications up to 400A. Some DR models are non-current interrupting rated, while others are suitable for current interruption on resistive loads. The DR's spring-loaded, silver-nickel butt contacts and dead front construction provide more consistent and reliable connections and significant improvements in operator safety compared to competitive devices.
Catalog Number 31-64243-K04 Country of Origin USA Dimensions 3.86 in Dia x 4.06 in L Enclosure IP54/IP55 Frequency Rating 60 Hz Gross Weight Per Pack 1.5100 lb Material Polyester NEMA Rating NEMA 3R Number Of Poles 3 Series DR100 Standards ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA 182.1|CE Certified|IEC Certified Temperature Rating -40 to 140 °F Terminal Type Screw Type Standard Duty UNSPSC 39121406 UPC 11 78447461055 UPC 12 78447461055 Stock Status NONSTOCK Brand MELTRIC Manufacturer Meltric Corporation Amperage Rating 100 A Color Blue Number of Wires 4 Voltage Rating 255/277/440/480 VAC With Ground, Short Circuit Rating 100 KAMP High amperage capacity Up to 6 auxiliary contacts Spring assisted screw terminals patented design assures ''tighten and forget'' confidence Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations Lid provides Type 3R water protection for additional protection from harsh environments OFF button press to de-energize and provides push button circuit disconnection Dead front/safety shutter assures safety by preventing user access to live parts 100 kA short circuit rated
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Catalog Number | 31-64243-K04 |
| Country of Origin | USA |
| Dimensions | 3.86 in Dia x 4.06 in L |
| Enclosure | IP54/IP55 |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 1.5100 lb |
| Material | Polyester |
| NEMA Rating | NEMA 3R |
| Number Of Poles | 3 |
| Series | DR100 |
| Standards | ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA 182.1|CE Certified|IEC Certified |
| Temperature Rating | -40 to 140 °F |
| Terminal Type | Screw |
| Type | Standard Duty |
| UNSPSC | 39121406 |
| UPC 11 | 78447461055 |
| UPC 12 | 78447461055 |
| Stock Status | NONSTOCK |
| Brand | MELTRIC |
| Manufacturer | Meltric Corporation |
| Amperage Rating | 100 A |
| Color | Blue |
| Number of Wires | 4 |
| Voltage Rating | 255/277/440/480 VAC |
| With Ground, Short Circuit Rating 100 KAMP |
| High amperage capacity |
| Up to 6 auxiliary contacts |
| Spring assisted screw terminals patented design assures ''tighten and forget'' confidence |
| Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations |
| Lid provides Type 3R water protection for additional protection from harsh environments |
| OFF button press to de-energize and provides push button circuit disconnection |
| Dead front/safety shutter assures safety by preventing user access to live parts |
| 100 kA short circuit rated |
