MELTRIC

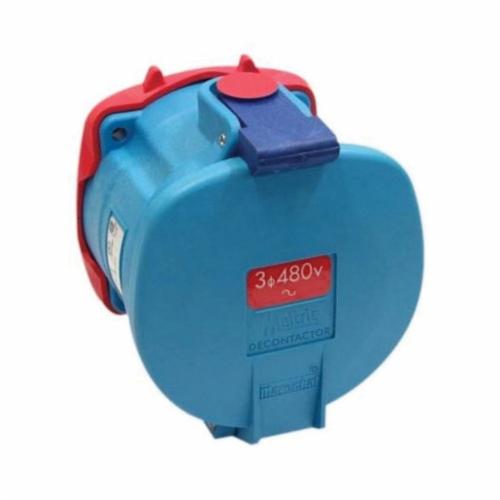

Meltric Decontactor™ 31-14243-K04 DR30 Standard Duty Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, Blue
Custom_Product_Images_Illustration
MELTRIC
Meltric Decontactor™ 31-14243-K04 DR30 Standard Duty Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, Blue
SKU330295
MFGR #31-14243-K04
Your Cost: $286.50/ea
List: DR Series plugs and receptacles provide safe, economical and robust connections for applications up to 400A. Some DR models are non-current interrupting rated, while others are suitable for current interruption on resistive loads. The DR's spring-loaded, silver-nickel butt contacts and dead front construction provide more consistent and reliable connections and significant improvements in operator safety compared to competitive devices.
DR Series plugs and receptacles provide safe, economical and robust connections for applications up to 400A. Some DR models are non-current interrupting rated, while others are suitable for current interruption on resistive loads. The DR's spring-loaded, silver-nickel butt contacts and dead front construction provide more consistent and reliable connections and significant improvements in operator safety compared to competitive devices.
Catalog Number 31-14243-K04 Country of Origin USA Dimensions 2.6 in Dia x 3.26 in L Enclosure IP54/IP55 Frequency Rating 60 Hz Gross Weight Per Pack 0.6740 lb Material Polyester NEMA Rating NEMA 3R Number Of Poles 3 Series DR30 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 1682CSA 182.1CE CertifiedIEC Certified Temperature Rating -40 to 140 °F Terminal Type Screw Type Standard Duty UNSPSC 39121406 UPC 11 78447461131 UPC 12 78447461131 Stock Status NONSTOCK Brand MELTRIC Manufacturer Meltric Corporation Amperage Rating 30 A Color Blue Number of Wires 4 Voltage Rating 255/277/440/480 VAC Features: Current Interruption Capability: For Current Interrupting Up To 250 VAC; Short Circuit Rating 100 KILO AMP: Testing Was Performed With RK1 Current Limiting Fuses Sized At At Least 100 PEC Of The Devices Ampacity Rating; Environmental Ratings: NEMA 3R, IP54/IP55* *IP54 When The Plug & Receptacle Are Mated; IP55 On The Receptacle Alone When The Lid Is Latched Closed; Wiring Capacity: Based On THHN Wire Sizes; Polarity: 3P+G High amperage capacity Up to 6 auxiliary contacts Spring assisted screw terminals patented design assures ''tighten and forget'' confidence Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations Lid provides Type 3R water protection for additional protection from harsh environments OFF button press to de-energize and provides push button circuit disconnection Dead front/safety shutter assures safety by preventing user access to live parts Not for current interrupting Short circuit rating 100 kA testing was performed with RK1 current limiting fuses sized at least 100 PEC of the devices ampacity rating IP55 on the receptacle alone when the lid is latched closed Wiring capacity is based on THHN wire sizes
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 31-14243-K04 |
| Country of Origin | USA |
| Dimensions | 2.6 in Dia x 3.26 in L |
| Enclosure | IP54/IP55 |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 0.6740 lb |
| Material | Polyester |
| NEMA Rating | NEMA 3R |
| Number Of Poles | 3 |
| Series | DR30 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 1682CSA 182.1CE CertifiedIEC Certified |
| Temperature Rating | -40 to 140 °F |
| Terminal Type | Screw |
| Type | Standard Duty |
| UNSPSC | 39121406 |
| UPC 11 | 78447461131 |
| UPC 12 | 78447461131 |
| Stock Status | NONSTOCK |
| Brand | MELTRIC |
| Manufacturer | Meltric Corporation |
| Amperage Rating | 30 A |
| Color | Blue |
| Number of Wires | 4 |
| Voltage Rating | 255/277/440/480 VAC |
| Features: Current Interruption Capability: For Current Interrupting Up To 250 VAC; Short Circuit Rating 100 KILO AMP: Testing Was Performed With RK1 Current Limiting Fuses Sized At At Least 100 PEC Of The Devices Ampacity Rating; Environmental Ratings: NEMA 3R, IP54/IP55* *IP54 When The Plug & Receptacle Are Mated; IP55 On The Receptacle Alone When The Lid Is Latched Closed; Wiring Capacity: Based On THHN Wire Sizes; Polarity: 3P+G |
| High amperage capacity |
| Up to 6 auxiliary contacts |
| Spring assisted screw terminals patented design assures ''tighten and forget'' confidence |
| Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations |
| Lid provides Type 3R water protection for additional protection from harsh environments |
| OFF button press to de-energize and provides push button circuit disconnection |
| Dead front/safety shutter assures safety by preventing user access to live parts |
| Not for current interrupting |
| Short circuit rating 100 kA testing was performed with RK1 current limiting fuses sized at least 100 PEC of the devices ampacity rating |
| IP55 on the receptacle alone when the lid is latched closed |
| Wiring capacity is based on THHN wire sizes |
