McGill®

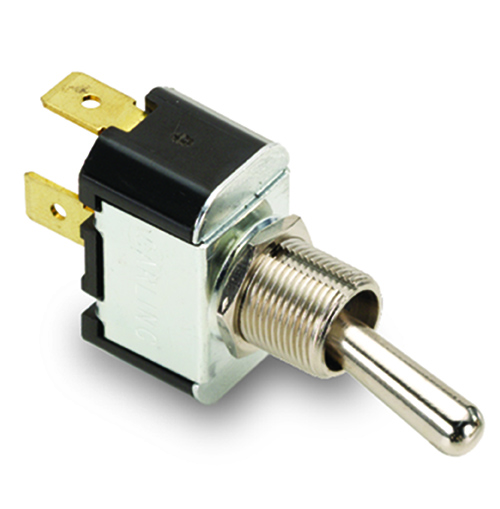

McGill® 900003N 90 Series Toggle Switch, 125 VAC/250 VAC, 20/12 A, 1 hp, SPST
Custom_Product_Images_Illustration
McGill®
McGill® 900003N 90 Series Toggle Switch, 125 VAC/250 VAC, 20/12 A, 1 hp, SPST
SKU534297
MFGR #900003N
Your Cost: $11.29/ea
McGill® Toggle Switch, Series: 90 Series, 125 VAC/250 VAC, 20/12 A, 1 hp, SPST, 1 Pole, Toggle, Surface, Quick-Connect Terminal, Phenolic, 1.13 in L x 0.63 in W x 2.18 in H
McGill® Toggle Switch, Series: 90 Series, 125 VAC/250 VAC, 20/12 A, 1 hp, SPST, 1 Pole, Toggle, Surface, Quick-Connect Terminal, Phenolic, 1.13 in L x 0.63 in W x 2.18 in H
Action ON -- OFF Actuator Toggle Application Marine, food service, generator, industrial control and office automation markets ARRA Compliant N Buy American Compliant N Catalog Number 900003N Connection 1/4" Quick Connect Terminal Country of Origin MX Currency USD Dimensions 1.13 in L x 0.63 in W x 2.18 in H EU RoHS Indicator C Gross Weight Per Pack 0.0700 lb Gross Weight per Pack Metric 0.03 Gross Weight UOM Metric kg Height 0.24 in Height [Metric] 6.0960 mm Length 6.10 in Length [Metric] 15.4940 cm Material Phenolic Number Of Poles 1 Series 90 Series Size 1.13 long x .63 wide in Standard UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant Standards RoHS CompliantUL File No. E335442UL Standard 1054Guide WORY2CSA File No. 249055CSA C22.2 No.55UL Listed Switch Type Toggle Terminal Type Quick-Connect Type 90 Series Single Pole Toggle Switches UNSPSC 39122211 UPC 11 03628300149 UPC 12 036283001496 Width 4.60 in Width [Metric] 11.6840 cm Stock Status NONSTOCK Brand McGill® Manufacturer McGill Amperage Rating 20 A Contact Configuration SPST Power Rating 1 hp Voltage Rating 125 VAC Marine, food service, generator, industrial control and office automation markets Appropriate for use in low voltage Vdc applications. Base: phenolic, Bat handle: Nickel Plated Brass, Bushing: Nickel Plated Brass Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life Appropriate for use in low voltage DC applications Indicating plate is furnished for maintained ON-OFF circuits Mounting hardware consists of nickel plated hex nut and knurled nut Phenolic base, nickel plated brass bat handle and bushing 1/2 in hole mounting ON/OFF (maintained) 1 hp at 120/240 VAC 1/4 in quick connect terminal
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | ON -- OFF |
| Actuator | Toggle |
| Application | Marine, food service, generator, industrial control and office automation markets |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 900003N |
| Connection | 1/4" Quick Connect Terminal |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.13 in L x 0.63 in W x 2.18 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0700 lb |
| Gross Weight per Pack Metric | 0.03 |
| Gross Weight UOM Metric | kg |
| Height | 0.24 in |
| Height [Metric] | 6.0960 mm |
| Length | 6.10 in |
| Length [Metric] | 15.4940 cm |
| Material | Phenolic |
| Number Of Poles | 1 |
| Series | 90 Series |
| Size | 1.13 long x .63 wide in |
| Standard | UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant |
| Standards | RoHS CompliantUL File No. E335442UL Standard 1054Guide WORY2CSA File No. 249055CSA C22.2 No.55UL Listed |
| Switch Type | Toggle |
| Terminal Type | Quick-Connect |
| Type | 90 Series Single Pole Toggle Switches |
| UNSPSC | 39122211 |
| UPC 11 | 03628300149 |
| UPC 12 | 036283001496 |
| Width | 4.60 in |
| Width [Metric] | 11.6840 cm |
| Stock Status | NONSTOCK |
| Brand | McGill® |
| Manufacturer | McGill |
| Amperage Rating | 20 A |
| Contact Configuration | SPST |
| Power Rating | 1 hp |
| Voltage Rating | 125 VAC |
| Marine, food service, generator, industrial control and office automation markets |
| Appropriate for use in low voltage Vdc applications. Base: phenolic, Bat handle: Nickel Plated Brass, Bushing: Nickel Plated Brass |
| Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life |
| Appropriate for use in low voltage DC applications |
| Indicating plate is furnished for maintained ON-OFF circuits |
| Mounting hardware consists of nickel plated hex nut and knurled nut |
| Phenolic base, nickel plated brass bat handle and bushing |
| 1/2 in hole mounting |
| ON/OFF (maintained) |
| 1 hp at 120/240 VAC |
| 1/4 in quick connect terminal |
