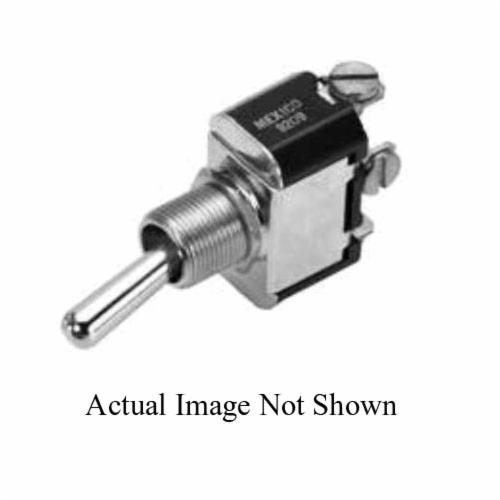

McGill® 900002N 90 Series Toggle Switch, 125 VAC/250 VAC, 20/12 A, 1 hp, SPST
McGill®
McGill® 900002N 90 Series Toggle Switch, 125 VAC/250 VAC, 20/12 A, 1 hp, SPST
SKU534295
MFGR #900002N
Your Cost: $11.29/ea
McGill® Toggle Switch, Series: 90 Series, 125 VAC/250 VAC, 20/12 A, 1 hp, SPST, 1 Pole, Toggle, Surface, Solder Terminal, Phenolic, 1.13 in L x 0.63 in W x 2.18 in H
McGill® Toggle Switch, Series: 90 Series, 125 VAC/250 VAC, 20/12 A, 1 hp, SPST, 1 Pole, Toggle, Surface, Solder Terminal, Phenolic, 1.13 in L x 0.63 in W x 2.18 in H
ARRA Compliant N Buy American Compliant N Catalog Number 900002N Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.0600 lb Gross Weight per Pack Metric 0.03 Gross Weight UOM Metric kg Height 0.23 in Height [Metric] 5.8420 mm Length 6.10 in Length [Metric] 15.4940 cm Standards CSA C22.2 No. 55 File No. 249055 Certified, RoHS Complaint, UL Recognized, UL Standard 1054, Guide WORY2, File No. E335442 Listed UNSPSC 39122211 UPC 11 03628300148 UPC 12 036283001489 Width 4.70 in Width [Metric] 11.9380 cm Stock Status NONSTOCK Brand McGill® Manufacturer McGill Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life Appropriate for use in low voltage DC applications Indicating plate is furnished for maintained ON-OFF circuits Mounting hardware consists of nickel plated hex nut and knurled nut Phenolic base, nickel plated brass bat handle and bushing 1/2 in hole mounting ON/OFF (maintained) 1 hp at 120/240 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 900002N |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0600 lb |
| Gross Weight per Pack Metric | 0.03 |
| Gross Weight UOM Metric | kg |
| Height | 0.23 in |
| Height [Metric] | 5.8420 mm |
| Length | 6.10 in |
| Length [Metric] | 15.4940 cm |
| Standards | CSA C22.2 No. 55 File No. 249055 Certified, RoHS Complaint, UL Recognized, UL Standard 1054, Guide WORY2, File No. E335442 Listed |
| UNSPSC | 39122211 |
| UPC 11 | 03628300148 |
| UPC 12 | 036283001489 |
| Width | 4.70 in |
| Width [Metric] | 11.9380 cm |
| Stock Status | NONSTOCK |
| Brand | McGill® |
| Manufacturer | McGill |
| Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life |
| Appropriate for use in low voltage DC applications |
| Indicating plate is furnished for maintained ON-OFF circuits |
| Mounting hardware consists of nickel plated hex nut and knurled nut |
| Phenolic base, nickel plated brass bat handle and bushing |
| 1/2 in hole mounting |
| ON/OFF (maintained) |
| 1 hp at 120/240 VAC |
