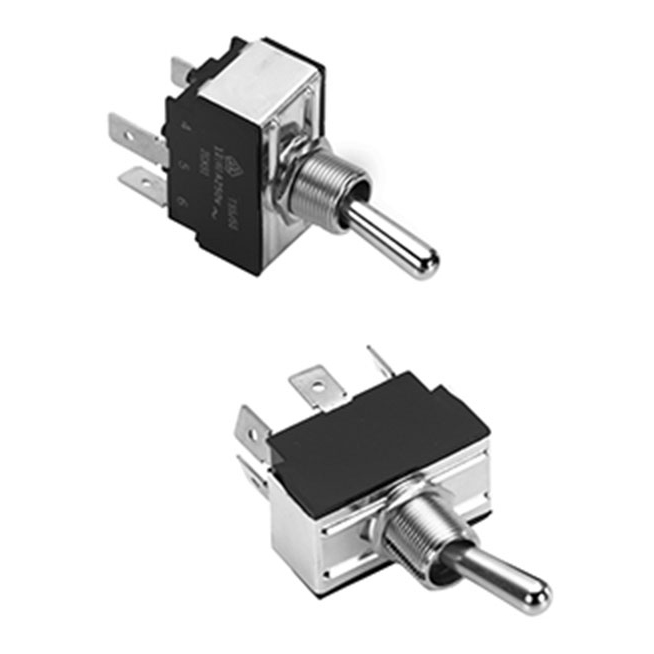

McGill® 01404003N 0140 Toggle Switch, 125 VAC/250 VAC, 15/10 A, 3/4 hp, 4PDT
Custom_Product_Images_Illustration
McGill® 01404003N 0140 Toggle Switch, 125 VAC/250 VAC, 15/10 A, 3/4 hp, 4PDT
SKU600112
MFGR #01404003N
Your Cost: $49.41/ea
McGill® Toggle Switch, Series: 0140, 125 VAC/250 VAC, 15/10 A, 3/4 hp, 4PDT, 4 Poles, Toggle, Surface, Quick-Connect Terminal, Phenolic, 1.31 in L x 1.43 in W
McGill® Toggle Switch, Series: 0140, 125 VAC/250 VAC, 15/10 A, 3/4 hp, 4PDT, 4 Poles, Toggle, Surface, Quick-Connect Terminal, Phenolic, 1.31 in L x 1.43 in W
Actuator Toggle Application Marine, food service, generator, industrial control and office automation markets ARRA Compliant N Buy American Compliant N Catalog Number 01404003N Connection 1/4" Quick Connect Terminal Country of Origin MX Currency USD Dimensions 1.31 in L x 1.43 in W EU RoHS Indicator C Gross Weight Per Pack 0.1200 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 0.24 in Height [Metric] 6.0960 mm Length 6.10 in Length [Metric] 15.4940 cm Material Phenolic Number Of Poles 4 Series 140 Size 1.31 Long x 1.43 Wide in Standard UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant Standards RoHS CompliantUL File No. E335442UL Standard 1054Guide WORY2CSA File No. 249055CSA C22.2 No.55UL Listed Switch Type Toggle Terminal Type Quick-Connect Type 0121/0140 Series Multi-Pole Toggle Switches UNSPSC 39122211 UPC 11 03628300180 UPC 12 036283001809 Width 4.70 in Width [Metric] 11.9380 cm Stock Status NONSTOCK Brand McGill® Manufacturer McGill Amperage Rating 15 A Contact Configuration ON OFF ON Power Rating 3/4 hp Voltage Rating 125 VAC Marine, food service, generator, industrial control and office automation markets Appropriate for use in low voltage Vdc applications. Base: phenolic, Bat handle: Nickel Plated Brass, Bushing: Nickel Plated Brass Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life Appropriate for use in low voltage DC applications Indicating plate is furnished for maintained ON-OFF circuits Mounting hardware consists of nickel plated hex nut and knurled nut Phenolic base, nickel plated brass bat handle and bushing 1/2 in hole mounting ON/OFF/ON (maintained) 3/4 hp at 125/250 VAC 1/4 in quick connect terminal
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Application | Marine, food service, generator, industrial control and office automation markets |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 01404003N |
| Connection | 1/4" Quick Connect Terminal |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.31 in L x 1.43 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1200 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 0.24 in |
| Height [Metric] | 6.0960 mm |
| Length | 6.10 in |
| Length [Metric] | 15.4940 cm |
| Material | Phenolic |
| Number Of Poles | 4 |
| Series | 140 |
| Size | 1.31 Long x 1.43 Wide in |
| Standard | UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant |
| Standards | RoHS CompliantUL File No. E335442UL Standard 1054Guide WORY2CSA File No. 249055CSA C22.2 No.55UL Listed |
| Switch Type | Toggle |
| Terminal Type | Quick-Connect |
| Type | 0121/0140 Series Multi-Pole Toggle Switches |
| UNSPSC | 39122211 |
| UPC 11 | 03628300180 |
| UPC 12 | 036283001809 |
| Width | 4.70 in |
| Width [Metric] | 11.9380 cm |
| Stock Status | NONSTOCK |
| Brand | McGill® |
| Manufacturer | McGill |
| Amperage Rating | 15 A |
| Contact Configuration | ON OFF ON |
| Power Rating | 3/4 hp |
| Voltage Rating | 125 VAC |
| Marine, food service, generator, industrial control and office automation markets |
| Appropriate for use in low voltage Vdc applications. Base: phenolic, Bat handle: Nickel Plated Brass, Bushing: Nickel Plated Brass |
| Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life |
| Appropriate for use in low voltage DC applications |
| Indicating plate is furnished for maintained ON-OFF circuits |
| Mounting hardware consists of nickel plated hex nut and knurled nut |
| Phenolic base, nickel plated brass bat handle and bushing |
| 1/2 in hole mounting |
| ON/OFF/ON (maintained) |
| 3/4 hp at 125/250 VAC |
| 1/4 in quick connect terminal |
