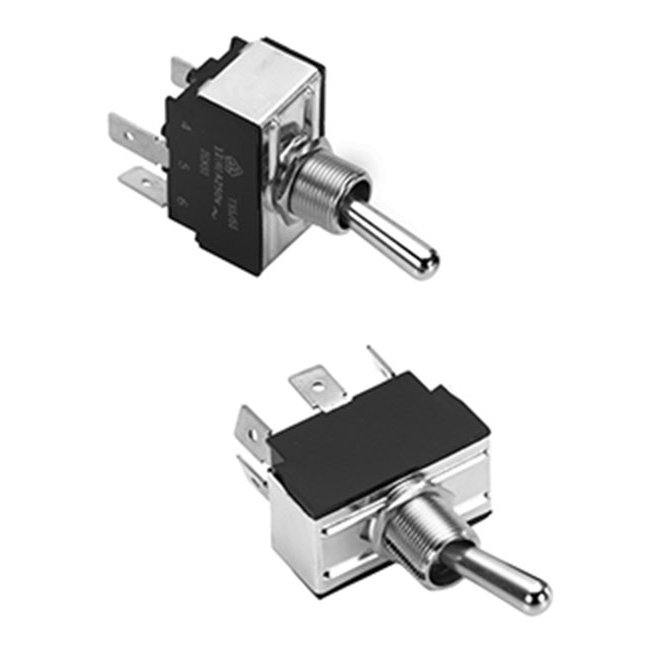

McGill® 01210011N 0121 Toggle Switch, 125 VAC/250 VAC, 15/10 A, DPDT

Toggle Switch
591291 MFG #: 01210011N
McGill
12.63000 / ea
McGill® Toggle Switch, Series: 0121, 125 VAC/250 VAC, 15/10 A, DPDT, 2 Poles, Toggle, Surface, Quick-Connect Terminal, Phenolic, 1.31 in L x 0.75 in W x 2.36 in H
QTY
  • Applications
  • Features
For Food Service, Generator, Industrial Control, Marine and Office Automation Markets
Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life
Appropriate for use in low voltage DC applications
Indicating plate is furnished for maintained ON-OFF circuits
Mounting hardware consists of nickel plated hex nut and knurled nut
Phenolic base, nickel plated brass bat handle and bushing
1/2 in hole mounting
ON/ON (maintained)
3/4 hp at 250 VAC
1/4 in quick connect terminal
Multi-Pole
Appropriate for use in low voltage Vdc applications. Base: phenolic, Bat handle: Nickel Plated Brass, Bushing: Nickel Plated Brass
