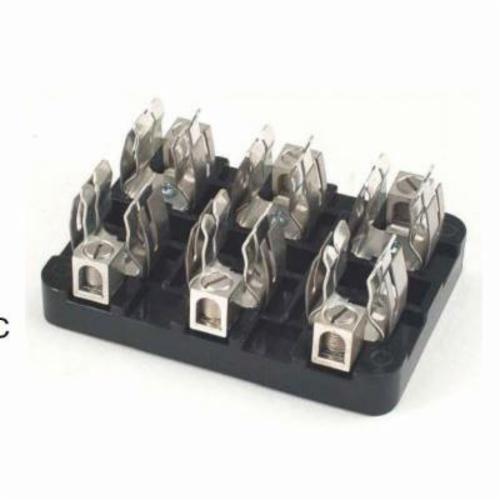

Marathon® R6T60A3B Reinforced Standard Fuse Block and Holder, 600 VAC/VDC, 60 A, 14 to 2 AWG Wire, 3 Poles
Marathon® R6T60A3B Reinforced Standard Fuse Block and Holder, 600 VAC/VDC, 60 A, 14 to 2 AWG Wire, 3 Poles
SKU28697
MFGR #R6T60A3B
Your Cost: $149.83/ea
Marathon® Fuse Block and Holder, Reinforced Standard, 600 VAC/VDC, 60 A, 3 Poles, Class: T, Box Lug, 14 to 2 AWG Wire, Panel Mount, 1-9/16 in Fuse Length, 13/16 in Fuse Dia, -40 to 302 deg F, Phenolic, 1.75 in H x 3.25 in W x 4.65 in D
Marathon® Fuse Block and Holder, Reinforced Standard, 600 VAC/VDC, 60 A, 3 Poles, Class: T, Box Lug, 14 to 2 AWG Wire, Panel Mount, 1-9/16 in Fuse Length, 13/16 in Fuse Dia, -40 to 302 deg F, Phenolic, 1.75 in H x 3.25 in W x 4.65 in D
Catalog Number R6T60A3B Class T Connection Type Box Lug Country of Origin USA Dimensions 1.75 in H x 3.25 in W x 4.65 in D Fuse Diameter 13/16 in Fuse Length 1-9/16 in Gross Weight Per Pack 1 lb Material Phenolic Mounting Type Panel Number Of Poles 3 Standards UL Listed, CSA Certified, CE Certified, RoHS Compliant Temperature Rating -40 to 302 °F Type Reinforced Standard UNSPSC 39121624 UPC 11 78433739538 UPC 12 78433739538 Stock Status NONSTOCK Brand Marathon® Manufacturer Marathon Special Products Amperage Rating 60 A Voltage Rating 600 VAC/VDC Wire Size 14 to 2 AWG 14 to 2 AWG copper/12 to 2 AWG aluminum Copper alloy and tin plated fuse clip High conductivity aluminum and tin plated box connector Aluminum and nickel plated terminal set screws Steel and zinc plated connector mounting screws Phenolic insulator base Commonly used fuses in this holder A6T, JJS, JLLS Flammability rating of insulator base UL94V-0 Approved for 10000 A withstand rating Steel and tin plated reinforcing spring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | R6T60A3B |
| Class | T |
| Connection Type | Box Lug |
| Country of Origin | USA |
| Dimensions | 1.75 in H x 3.25 in W x 4.65 in D |
| Fuse Diameter | 13/16 in |
| Fuse Length | 1-9/16 in |
| Gross Weight Per Pack | 1 lb |
| Material | Phenolic |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Standards | UL Listed, CSA Certified, CE Certified, RoHS Compliant |
| Temperature Rating | -40 to 302 °F |
| Type | Reinforced Standard |
| UNSPSC | 39121624 |
| UPC 11 | 78433739538 |
| UPC 12 | 78433739538 |
| Stock Status | NONSTOCK |
| Brand | Marathon® |
| Manufacturer | Marathon Special Products |
| Amperage Rating | 60 A |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 2 AWG |
| 14 to 2 AWG copper/12 to 2 AWG aluminum |
| Copper alloy and tin plated fuse clip |
| High conductivity aluminum and tin plated box connector |
| Aluminum and nickel plated terminal set screws |
| Steel and zinc plated connector mounting screws |
| Phenolic insulator base |
| Commonly used fuses in this holder A6T, JJS, JLLS |
| Flammability rating of insulator base UL94V-0 |
| Approved for 10000 A withstand rating |
| Steel and tin plated reinforcing spring |
