Marathon®

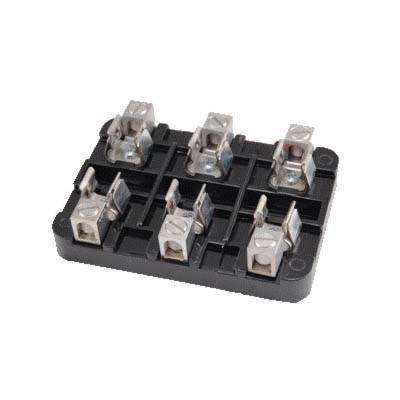

Marathon® R6T30A3B Reinforced Fuse Holder, 600 VAC/VDC, 30 A, 2 to 14 AWG/2 to 12 AWG Wire, 3 Poles
Marathon®
Marathon® R6T30A3B Reinforced Fuse Holder, 600 VAC/VDC, 30 A, 2 to 14 AWG/2 to 12 AWG Wire, 3 Poles
SKU636228
MFGR #R6T30A3B
Your Cost: $145.45/ea
Marathon® Fuse Holder, Reinforced, 600 VAC/VDC, 30 A, 3 Poles, Class: T, Box Lug, 2 to 14 AWG/2 to 12 AWG Wire, Panel Mount, 1-1/2 in Fuse Length, 9/16 in Fuse Dia, -40 to 302 deg F, For Use With: A6T, JJS and JLLS Fuses, Phenolic, 3.38 in H x 4.69 in W x 1.28 in D
Marathon® Fuse Holder, Reinforced, 600 VAC/VDC, 30 A, 3 Poles, Class: T, Box Lug, 2 to 14 AWG/2 to 12 AWG Wire, Panel Mount, 1-1/2 in Fuse Length, 9/16 in Fuse Dia, -40 to 302 deg F, For Use With: A6T, JJS and JLLS Fuses, Phenolic, 3.38 in H x 4.69 in W x 1.28 in D
Catalog Number R6T30A3B Connection Type Box Lug Country of Origin USA Dimensions 3.38 in H x 4.69 in W x 1.28 in D Fuse Diameter 9/16 in Fuse Length 1-1/2 in Gross Weight Per Pack 1 lb Material Phenolic Mounting Type Panel Number Of Poles 3 Standards CSA C22.2 NO 39-M1987/LR21455IEC 60947-1RoHS CompliantUL 4248-1/4248-15/IZLT.E35113 Suitable For Use With A6T, JJS and JLLS Fuses Temperature Rating -40 to 302 °F UNSPSC 39121624 UPC 11 78433739534 UPC 12 78433739534 Stock Status NONSTOCK Brand Marathon® Manufacturer Marathon Special Products Amperage Rating 30 A Class T Type Reinforced Voltage Rating 600 VAC//VDC Wire Size 2 to 14 AWG/2 to 12 AWG 2 to 14 AWG copper/6 to 12 AWG aluminum wire Approved for 200000 A withstand rating -40 to 302 deg F UL RTI insulator base temperature rating UL 94 V-0 flammability rating of insulator base Tin-plated copper alloy fuse clip Tin-plated aluminum box connector Tin-plated steel reinforcing spring Phenolic insulator base Nickel-plated aluminum terminal set screws Zinc-plated steel connector mounting screws 9/16 in wire strip length NO 10 fastener, torque to 25 to 30 in-lb panel mountable
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | R6T30A3B |
| Connection Type | Box Lug |
| Country of Origin | USA |
| Dimensions | 3.38 in H x 4.69 in W x 1.28 in D |
| Fuse Diameter | 9/16 in |
| Fuse Length | 1-1/2 in |
| Gross Weight Per Pack | 1 lb |
| Material | Phenolic |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Standards | CSA C22.2 NO 39-M1987/LR21455IEC 60947-1RoHS CompliantUL 4248-1/4248-15/IZLT.E35113 |
| Suitable For Use With | A6T, JJS and JLLS Fuses |
| Temperature Rating | -40 to 302 °F |
| UNSPSC | 39121624 |
| UPC 11 | 78433739534 |
| UPC 12 | 78433739534 |
| Stock Status | NONSTOCK |
| Brand | Marathon® |
| Manufacturer | Marathon Special Products |
| Amperage Rating | 30 A |
| Class | T |
| Type | Reinforced |
| Voltage Rating | 600 VAC//VDC |
| Wire Size | 2 to 14 AWG/2 to 12 AWG |
| 2 to 14 AWG copper/6 to 12 AWG aluminum wire |
| Approved for 200000 A withstand rating |
| -40 to 302 deg F UL RTI insulator base temperature rating |
| UL 94 V-0 flammability rating of insulator base |
| Tin-plated copper alloy fuse clip |
| Tin-plated aluminum box connector |
| Tin-plated steel reinforcing spring |
| Phenolic insulator base |
| Nickel-plated aluminum terminal set screws |
| Zinc-plated steel connector mounting screws |
| 9/16 in wire strip length |
| NO 10 fastener, torque to 25 to 30 in-lb panel mountable |
