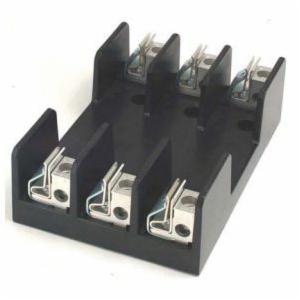

Marathon® R6F100A3B Reinforced Standard Fuse Block and Holder, 600 VAC/VDC, 100 A, 14 to 2/0 AWG Wire, 3 Poles
Special Purpose Fuse Blocks
28608
MFG #: R6F100A3B
Marathon®
295.66000
/ ea
Marathon® Fuse Block and Holder, Reinforced Standard, 600 VAC/VDC, 100 A, 3 Poles, Class: H/K, Box Lug, 14 to 2/0 AWG Wire, Panel Mount, 7-7/8 in Fuse Length, 1-11/32 in Fuse Dia, -40 to 302 deg F, Phenolic, 8.12 in H x 5.73 in W x 2.6 in D
- Features
| Features: ; Accessories: Cover: CHR630; Glass-Filled Polycarbonate (Thermoplastic); 125 ° C (UL RTI), Flammability Rating UL 94 V-0, UL Listed File No. JDVS2.181825; Wire Range: 2/0 - 14 AWG For Copper; 2/0 - 12 AWG For Aluminium; Fuse Size: 1-11/32 IN Diameter X 7-7/8 IN Length; Electrical Ratings: 61 - 100 AMP Max (Amperage Rating Based On Maximum Fuse Rating For That Physical Size); 600 VAC/DC; Approved For 10000 AMP Withstand Rating; Mechanical Ratings: Insulator Base Temperature Rating: -40 ° C/F To 150 ° C (302 ° F) UL RTI; Flammability Rating Of Insulator Base: UL 94 V-0; Touch Protection: IP-20 (IEC 60529) With Optional Cover CHR6100; Use Outside These Ratings Needs To Be Judged In The End-Use; Wire Strip Length: 1-5/16 IN; Number Of Poles: 3; Panel Mountable: 1/4 IN Fastener, Torque 30 - 40 IN-LB |
| 14 to 2/0 AWG copper/12 to 2/0 AWG aluminum |
| Copper alloy and tin plated fuse clip |
| High conductivity aluminum and tin plated box connector |
| Steel and nickel plated terminal set screws |
| Steel and zinc plated connector mounting screws |
| IP-20 touch protection |
| Commonly used fuses in this holder A6Y, CRS, NLS, NOS, NRS, OTS, RES, RFS, RLS |
| Flammability rating of insulator base UL94V-0 |
| Approved for 10000 A withstand rating |
