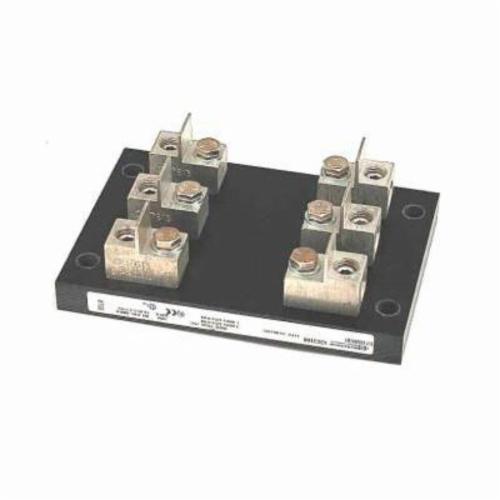

Marathon® 6T100A3B Fuse Block and Holder, 600 VAC/VDC, 100 A, 14 to 2/0 AWG Wire, 3 Poles
SKU28576
MFGR #6T100A3B
Your Cost: $239.53/ea
Marathon® Fuse Block and Holder, 600 VAC/VDC, 100 A, 3 Poles, Class: T, Box Lug, 14 to 2/0 AWG Wire, Panel Mount, 2-61/64 in Fuse Length, 13/16 in Fuse Dia, 266 deg F, Phenolic, 1.85 in H x 6.05 in W x 4.15 in D
Marathon® Fuse Block and Holder, 600 VAC/VDC, 100 A, 3 Poles, Class: T, Box Lug, 14 to 2/0 AWG Wire, Panel Mount, 2-61/64 in Fuse Length, 13/16 in Fuse Dia, 266 deg F, Phenolic, 1.85 in H x 6.05 in W x 4.15 in D
Catalog Number 6T100A3B Class T Connection Type Box Lug Country of Origin USA Dimensions 1.85 in H x 6.05 in W x 4.15 in D Fuse Diameter 13/16 in Fuse Length 2-61/64 in Gross Weight Per Pack 1 lb Material Phenolic Mounting Type Panel Number Of Poles 3 Standards UL Listed, CSA Certified, CE Certified, RoHS Compliant Temperature Rating 266 °F UNSPSC 39121624 UPC 11 78433739270 UPC 12 78433739270 Stock Status NONSTOCK Brand Marathon® Manufacturer Marathon Special Products Amperage Rating 100 A Voltage Rating 600 VAC/VDC Wire Size 14 to 2/0 AWG 14 to 2/0 AWG copper/12 to 2/0 AWG aluminum High conductivity aluminum and tin plated connector Phenolic laminate insulator base Aluminum and tin plated terminal set screws Steel and zinc plated connector mounting screws and belleville washer IP-20 touch protection Commonly used fuses in this holder A6T, JJS, JLLS Flammability rating of insulator base UL94V-0 Approved for 10000 A withstand rating Steel and nickel plated bolt
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Catalog Number | 6T100A3B |
Class | T |
Connection Type | Box Lug |
Country of Origin | USA |
Dimensions | 1.85 in H x 6.05 in W x 4.15 in D |
Fuse Diameter | 13/16 in |
Fuse Length | 2-61/64 in |
Gross Weight Per Pack | 1 lb |
Material | Phenolic |
Mounting Type | Panel |
Number Of Poles | 3 |
Standards | UL Listed, CSA Certified, CE Certified, RoHS Compliant |
Temperature Rating | 266 °F |
UNSPSC | 39121624 |
UPC 11 | 78433739270 |
UPC 12 | 78433739270 |
Stock Status | NONSTOCK |
Brand | Marathon® |
Manufacturer | Marathon Special Products |
Amperage Rating | 100 A |
Voltage Rating | 600 VAC/VDC |
Wire Size | 14 to 2/0 AWG |
14 to 2/0 AWG copper/12 to 2/0 AWG aluminum |
High conductivity aluminum and tin plated connector |
Phenolic laminate insulator base |
Aluminum and tin plated terminal set screws |
Steel and zinc plated connector mounting screws and belleville washer |
IP-20 touch protection |
Commonly used fuses in this holder A6T, JJS, JLLS |
Flammability rating of insulator base UL94V-0 |
Approved for 10000 A withstand rating |
Steel and nickel plated bolt |
