Marathon®

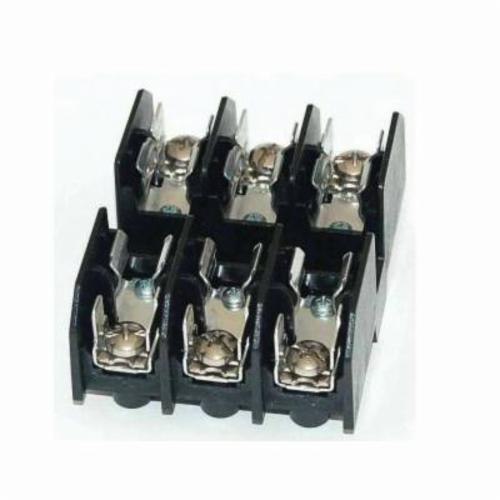

Marathon® 6M30A3SPQ Standard Fuse Block and Holder, 600 VAC/VDC, 30 A, 18 to 10 AWG Wire, 3 Poles
Marathon®
Marathon® 6M30A3SPQ Standard Fuse Block and Holder, 600 VAC/VDC, 30 A, 18 to 10 AWG Wire, 3 Poles
SKU28635
MFGR #6M30A3SPQ
Your Cost: $64.45/ea
Marathon® Fuse Block and Holder, Standard, 600 VAC/VDC, 30 A, 3 Poles, Class: M, Screw, 18 to 10 AWG Wire, Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 257 deg F, Thermoplastic, 3.13 in H x 2.35 in W x 1.29 in D
Marathon® Fuse Block and Holder, Standard, 600 VAC/VDC, 30 A, 3 Poles, Class: M, Screw, 18 to 10 AWG Wire, Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 257 deg F, Thermoplastic, 3.13 in H x 2.35 in W x 1.29 in D
Catalog Number 6M30A3SPQ Class M Connection Type Screw Country of Origin USA Dimensions 3.13 in H x 2.35 in W x 1.29 in D Fuse Diameter 13/32 in Fuse Length 1-1/2 in Gross Weight Per Pack 1 lb Material Thermoplastic Mounting Type Panel Number Of Poles 3 Standards UL Listed, CSA Certified, CE Certified, RoHS Compliant Temperature Rating -40 to 257 °F Type Standard UNSPSC 39121624 UPC 11 78433711750 UPC 12 78433711750 Stock Status NONSTOCK Brand Marathon® Manufacturer Marathon Special Products Amperage Rating 30 A Voltage Rating 600 VAC/VDC Wire Size 18 to 10 AWG 18 to 10 AWG copper Copper alloy and tin plated fuse clip High conductivity aluminum and tin plated box connector Straddle plate thread forming NO 10-32 screws steel, tin plated Steel and zinc plated fuse clip anchor screws IP-20 touch protection Commonly used fuses in this holder A13X-2, A25Z-2, A60Q-2, A6Y-2B, AGU, ATM, ATQ, BAF, BAN, BLF, BLN, BLS, FLA, FLM, FLQ, FNM, FNQ, GFN, GGO, KLK, KLKD, KLQ, KTK, OTM, TRM Flammability rating of insulator base UL94V-0 Approved for 10000 A withstand rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 6M30A3SPQ |
| Class | M |
| Connection Type | Screw |
| Country of Origin | USA |
| Dimensions | 3.13 in H x 2.35 in W x 1.29 in D |
| Fuse Diameter | 13/32 in |
| Fuse Length | 1-1/2 in |
| Gross Weight Per Pack | 1 lb |
| Material | Thermoplastic |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Standards | UL Listed, CSA Certified, CE Certified, RoHS Compliant |
| Temperature Rating | -40 to 257 °F |
| Type | Standard |
| UNSPSC | 39121624 |
| UPC 11 | 78433711750 |
| UPC 12 | 78433711750 |
| Stock Status | NONSTOCK |
| Brand | Marathon® |
| Manufacturer | Marathon Special Products |
| Amperage Rating | 30 A |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 18 to 10 AWG |
| 18 to 10 AWG copper |
| Copper alloy and tin plated fuse clip |
| High conductivity aluminum and tin plated box connector |
| Straddle plate thread forming NO 10-32 screws steel, tin plated |
| Steel and zinc plated fuse clip anchor screws |
| IP-20 touch protection |
| Commonly used fuses in this holder A13X-2, A25Z-2, A60Q-2, A6Y-2B, AGU, ATM, ATQ, BAF, BAN, BLF, BLN, BLS, FLA, FLM, FLQ, FNM, FNQ, GFN, GGO, KLK, KLKD, KLQ, KTK, OTM, TRM |
| Flammability rating of insulator base UL94V-0 |
| Approved for 10000 A withstand rating |
