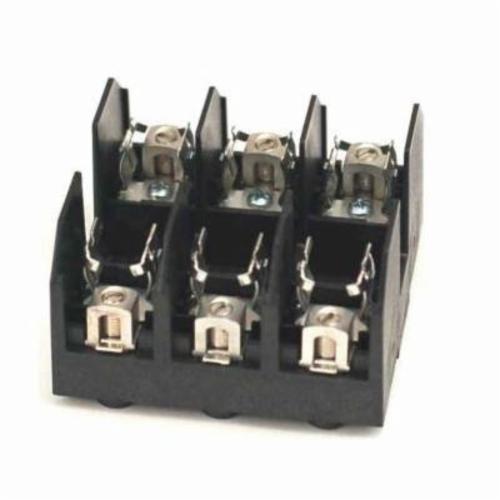

Marathon® 6J30A3B Standard Fuse Holder, 600 VAC, 30 A, 14 to 6 AWG Wire, 3 Poles
SKU28701
MFGR #6J30A3B
Your Cost: $146.49/ea
Marathon® Fuse Holder, Standard, 600 VAC, 30 A, 3 Poles, Class: J, 14 to 6 AWG Wire, Panel Mount, 2-1/4 in Fuse Length, 13/16 in Fuse Dia, -40 to 125 deg C, For Use With: A4J, AJT, JKS, JLS, JTD, JTD_ID, LPJ fuse, Thermoplastic
Marathon® Fuse Holder, Standard, 600 VAC, 30 A, 3 Poles, Class: J, 14 to 6 AWG Wire, Panel Mount, 2-1/4 in Fuse Length, 13/16 in Fuse Dia, -40 to 125 deg C, For Use With: A4J, AJT, JKS, JLS, JTD, JTD_ID, LPJ fuse, Thermoplastic
Catalog Number 6J30A3B Country of Origin USA Fuse Diameter 13/16 in Fuse Length 2-1/4 in Gross Weight Per Pack 1 lb Material Thermoplastic Mounting Type Panel Number Of Poles 3 Standards UL 4248-1, 4248-8, IZLT.E35113, CSA C22.2 No. 39 M1987, LR21455, CE IEC 60947-1, RoHS Compliant Suitable For Use With A4J, AJT, JKS, JLS, JTD, JTD_ID, LPJ fuse Temperature Rating -40 to 125 °C UNSPSC 39121624 UPC 11 78433780065 UPC 12 78433780065 Stock Status NONSTOCK Brand Marathon® Manufacturer Marathon Special Products Amperage Rating 30 A Class J Type Standard Voltage Rating 600 VAC Wire Size 14 to 6 AWG Features: ; Accessories: Cover: CJ630; Glass-Filled Polycarbonate (Thermoplastic); 125 ° C (UL RTI), Flammability Rating UL 94 V-0, UL Listed File No. JDVS2.181825; Expander Block (R6J30AEB); DIN Rail (35 X 7.5 Mm, 2 M Long, Slotted): MN35-2; Wire Range: - 14 AWG For Copper; Fuse Size: 13/16 IN Diameter X 2-1/4 IN; Electrical Ratings: 0 - 30 AMP Max (Amperage Rating Based On Maximum Fuse Rating For That Physical Size); Copper Wire Only; 600 VAC/DC; Approved For 200000 AMP Withstand Rating; Mechanical Ratings: Insulator Base Temperature Rating: -40 ° C/F To 125 ° C (257 ° F) UL RTI; Flammability Rating Of Insulator Base: UL 94 V-0; Touch Protection: IP-20 (IEC 60529) With Optional Cover CJ630; Use Outside These Ratings Needs To Be Judged In The End-Use Ap; Wire Strip Length: 7/16 IN; Number Of Poles: 3; Panel Mountable: #10 Fastener, Torque 25 - 30 IN-LB Flammability rating of insulator base is UL 94V-0 Copper alloy, tin plated fuse clip Box connector load termination Tested and approved for 200000 A withstand rating and short circuit current ratings (SCCR)
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 6J30A3B |
| Country of Origin | USA |
| Fuse Diameter | 13/16 in |
| Fuse Length | 2-1/4 in |
| Gross Weight Per Pack | 1 lb |
| Material | Thermoplastic |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Standards | UL 4248-1, 4248-8, IZLT.E35113, CSA C22.2 No. 39 M1987, LR21455, CE IEC 60947-1, RoHS Compliant |
| Suitable For Use With | A4J, AJT, JKS, JLS, JTD, JTD_ID, LPJ fuse |
| Temperature Rating | -40 to 125 °C |
| UNSPSC | 39121624 |
| UPC 11 | 78433780065 |
| UPC 12 | 78433780065 |
| Stock Status | NONSTOCK |
| Brand | Marathon® |
| Manufacturer | Marathon Special Products |
| Amperage Rating | 30 A |
| Class | J |
| Type | Standard |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 6 AWG |
| Features: ; Accessories: Cover: CJ630; Glass-Filled Polycarbonate (Thermoplastic); 125 ° C (UL RTI), Flammability Rating UL 94 V-0, UL Listed File No. JDVS2.181825; Expander Block (R6J30AEB); DIN Rail (35 X 7.5 Mm, 2 M Long, Slotted): MN35-2; Wire Range: - 14 AWG For Copper; Fuse Size: 13/16 IN Diameter X 2-1/4 IN; Electrical Ratings: 0 - 30 AMP Max (Amperage Rating Based On Maximum Fuse Rating For That Physical Size); Copper Wire Only; 600 VAC/DC; Approved For 200000 AMP Withstand Rating; Mechanical Ratings: Insulator Base Temperature Rating: -40 ° C/F To 125 ° C (257 ° F) UL RTI; Flammability Rating Of Insulator Base: UL 94 V-0; Touch Protection: IP-20 (IEC 60529) With Optional Cover CJ630; Use Outside These Ratings Needs To Be Judged In The End-Use Ap; Wire Strip Length: 7/16 IN; Number Of Poles: 3; Panel Mountable: #10 Fastener, Torque 25 - 30 IN-LB |
| Flammability rating of insulator base is UL 94V-0 |
| Copper alloy, tin plated fuse clip |
| Box connector load termination |
| Tested and approved for 200000 A withstand rating and short circuit current ratings (SCCR) |
