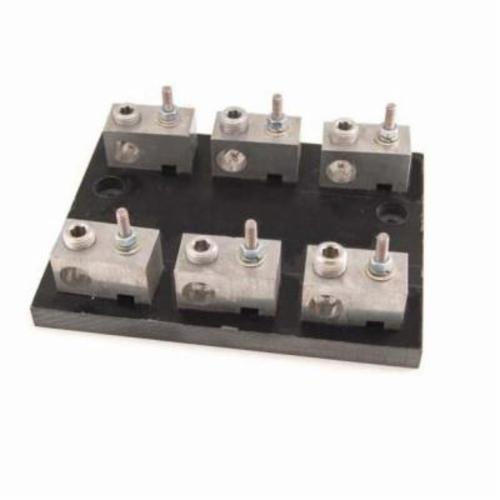

Marathon® 6J200A3BFBD Reinforced Fuse Holder, 600 VAC, 200 A, 250 MCM to 6 AWG Wire, 3 Poles
Marathon® 6J200A3BFBD Reinforced Fuse Holder, 600 VAC, 200 A, 250 MCM to 6 AWG Wire, 3 Poles
SKU646380
MFGR #6J200A3BFBD
Your Cost: $526.81/ea
Marathon® Fuse Holder, Reinforced, 600 VAC, 200 A, 3 Poles, Class: J, 250 kcmil to 6 AWG Wire, Panel Mount, 5-3/4 in Fuse Length, 1-5/8 in Fuse Dia, 130 deg C, For Use With: A4J, AJT, JKS, JLS, JTD, JTD_ID, LPJ fuse, Phenolic
Marathon® Fuse Holder, Reinforced, 600 VAC, 200 A, 3 Poles, Class: J, 250 kcmil to 6 AWG Wire, Panel Mount, 5-3/4 in Fuse Length, 1-5/8 in Fuse Dia, 130 deg C, For Use With: A4J, AJT, JKS, JLS, JTD, JTD_ID, LPJ fuse, Phenolic
Catalog Number 6J200A3BFBD Connection Type Screw Terminal Country of Origin USA Dimensions 2.85 in H x 6.5 in W x 9.05 in D Fuse Diameter 1-5/8 in Fuse Length 5-3/4 in Gross Weight Per Pack 1 lb Material Phenolic Mounting Type Panel Number Of Poles 3 Standards UL 512,IZLT2.E35113CSA C22.2 No. 39 M1987, LR21455, CE IEC 60947-1RoHS Compliant Suitable For Use With A4J, AJT, JKS, JLS, JTD, JTD_ID, LPJ fuse Temperature Rating 130 °C UNSPSC 39121624 UPC 11 78433762002 UPC 12 78433762002 Stock Status NONSTOCK Brand Marathon® Manufacturer Marathon Special Products Amperage Rating 200 A Class J Type Reinforced Voltage Rating 600 VAC Wire Size 6 AWG to 250 kcmil Flammability rating of insulator base is UL 94 HB Maximum insulator base temperature is 130 deg C Aluminum alloy, tin plated fuse clip Box connector load termination Approved for 200000 A withstand rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 6J200A3BFBD |
| Connection Type | Screw Terminal |
| Country of Origin | USA |
| Dimensions | 2.85 in H x 6.5 in W x 9.05 in D |
| Fuse Diameter | 1-5/8 in |
| Fuse Length | 5-3/4 in |
| Gross Weight Per Pack | 1 lb |
| Material | Phenolic |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Standards | UL 512,IZLT2.E35113CSA C22.2 No. 39 M1987, LR21455, CE IEC 60947-1RoHS Compliant |
| Suitable For Use With | A4J, AJT, JKS, JLS, JTD, JTD_ID, LPJ fuse |
| Temperature Rating | 130 °C |
| UNSPSC | 39121624 |
| UPC 11 | 78433762002 |
| UPC 12 | 78433762002 |
| Stock Status | NONSTOCK |
| Brand | Marathon® |
| Manufacturer | Marathon Special Products |
| Amperage Rating | 200 A |
| Class | J |
| Type | Reinforced |
| Voltage Rating | 600 VAC |
| Wire Size | 6 AWG to 250 kcmil |
| Flammability rating of insulator base is UL 94 HB |
| Maximum insulator base temperature is 130 deg C |
| Aluminum alloy, tin plated fuse clip |
| Box connector load termination |
| Approved for 200000 A withstand rating |
