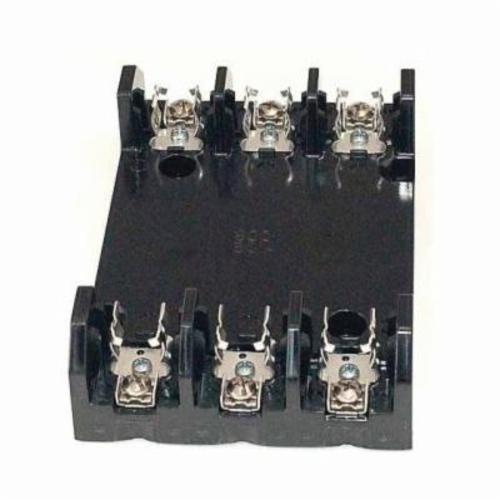

Marathon® 6F30A2SP Standard Fuse Block and Holder, 600 VAC/VDC, 30 A, 14 to 10 AWG Wire, 2 Poles
Special Purpose Fuse Blocks
28601
MFG #: 6F30A2SP
Marathon®
84.23000
/ ea
Marathon® Fuse Block and Holder, Standard, 600 VAC/VDC, 30 A, 2 Poles, Class: H, Screw, 14 to 10 AWG Wire, Panel Mount, 5 in Fuse Length, 13/16 in Fuse Dia, -40 to 302 deg F, Phenolic, 1.7 in H x 6.25 in W x 2.9 in D
- Features
| Features: ; Accessories: Cover: CHR630; Glass-Filled Polycarbonate (Thermoplastic); 125 ° C (UL RTI), Flammability Rating UL 94 V-0, UL Listed File No. JDVS2.181825; Wire Range: 10 - 14 AWG; Fuse Size: 13/16 IN Diameter X 5 IN Length; Electrical Ratings: 0 - 30 AMP Max (Amperage Rating Based On Maximum Fuse Rating For That Physical Size); Copper Wire Only; 600 VAC/DC; Approved For 10000 AMP Withstand Rating; Mechanical Ratings: Insulator Base Temperature Rating: -40 ° C/F To 150 ° C (302 ° F) UL RTI; Flammability Rating Of Insulator Base: UL 94 V-0; Touch Protection: IP-20 (IEC 60529) With Optional Cover CHR630; Use Outside These Ratings Needs To Be Judged In The End-Use A; Wire Strip Length: 7/16 IN; Number Of Poles: 2; Panel Mountable: 1/4 IN Fastener, Torque 30 - 40 IN-LB |
| 14 to 10 AWG copper |
| Copper alloy and tin plated fuse clip |
| Straddle plate thread forming NO 10-32 screws steel, tin plated |
| Steel and zinc plated fuse clip anchor screws |
| Phenolic insulator base |
| IP-20 touch protection |
| Commonly used fuses in this holder A6Y, CRS, NLS, NOS, NRS, OTS, RES, RFS, RLS |
| Flammability rating of insulator base UL94V-0 |
| Approved for 10000 A withstand rating |
