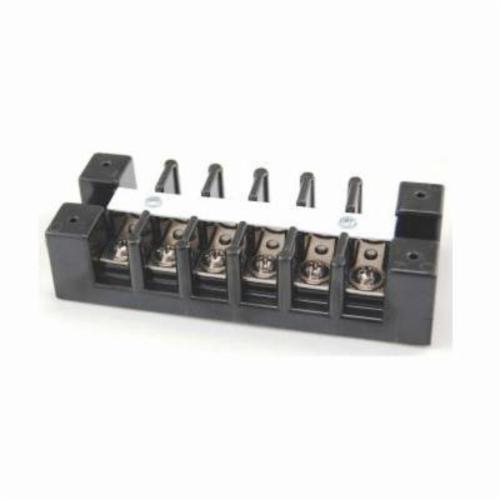

Marathon® 1612std 1600 Heavy Duty Barrier Terminal Block, 600 VAC/VDC, 75 A, 10 to 16 AWG Size

Barrier - Heavy Duty Terminal Blocks
28694 MFG #: 1612STD
51.80000 / ea
Marathon® Barrier Terminal Block, Heavy Duty, Series: 1600, 600 VAC/VDC, 75 A, 10 to 16 AWG Wire, 21/32 in Center Spacing, #10-32 Screw, 20 in-lb, Surface Mount, Screw, 150 deg C, Phenolic, 9 in L x 2 in W x 1.19 in D
  • Features
Features: Wire Range (With Unprepared Wire): 10 - 16 AWG Copper, Wire Range Will Vary With Lug Size; Electrical Ratings: 30 AMP (Unprepared Wire) (Based On NEC Table 310-16, 75 ° C Columns); 75 AMP (When Wired With Crimp Type Ring, Spade Or Fork Terminal) (Based On NEC Table 310-16, 75 ° C Columns); 600 Volts AC/DC (UL 1059 Class C, Use Group - General Industrial); Short Circuit Current Rated For 10,000 AMP; Factory And Field Wiring; Mechanical Ratings: Maximum Insulator Base Temperature Rating: 150 ° C (302 ° F) UL RTI; Storage And Transportation Temperature Range: -35 ° C To 125 ° C (-31 ° F To 257 ° F); Flammability Rating Of Insulator Base: UL 94 V-0; Use Outside These Ratings Needs To Be Judged In The End-Use Application; Materials: Connector: Brass, Nickel Plated; Insulator Base: Phenolic; Screws: Brass, Nickel Plated, 10-32 Marking Strip: V
12 poles
Nickel plate, brass connector
Spade or fork terminal
Accepts lugs with max width of 0.5 in
10,000 A short circuit current rating
Approved for factory and field wiring
UL 94V-0 flammability rating of insulator base
Phillips-slot, brass nickel plated screw
Use outside these ratings needs to be judged in the end-use application
-35 deg C to 125 deg C storage and transportation temperature range
Line-to-line spacing
Standard connector with serrations for anti-rotation
