Marathon®

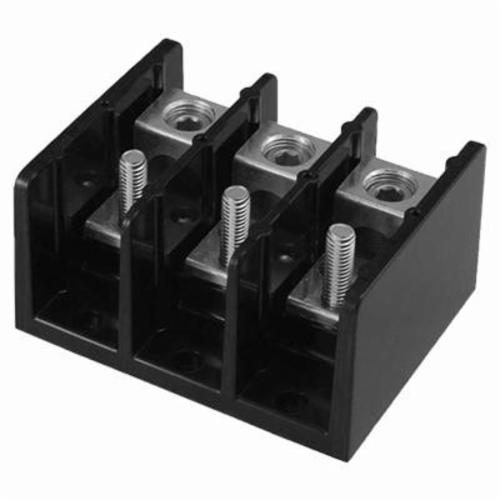

Marathon® 1443614 144 Stud Power Distribution Block, 600 VAC/VDC, 840 A, 3 Poles, 3/8 to 16 AWG Wire, Copper
Marathon®
Marathon® 1443614 144 Stud Power Distribution Block, 600 VAC/VDC, 840 A, 3 Poles, 3/8 to 16 AWG Wire, Copper
SKU353884
MFGR #1443614
Your Cost: $757.77/ea
Marathon® Power Distribution Block, Stud, Series: 144, 600 VAC/VDC, 840 A, 3 Poles, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 3/8 to 16 AWG Wire, 10 kA Short Circuit Current Rating, Copper, Tin Plated, Black, 4.75 in H x 6.03 in W x 2.91 in D
Marathon® Power Distribution Block, Stud, Series: 144, 600 VAC/VDC, 840 A, 3 Poles, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 3/8 to 16 AWG Wire, 10 kA Short Circuit Current Rating, Copper, Tin Plated, Black, 4.75 in H x 6.03 in W x 2.91 in D
Catalog Number 1443614 Color Black Country of Origin USA Dimensions 4.75 in H x 6.03 in W x 2.91 in D Finish Tin Plated Gross Weight Per Pack 1 lb Number Of Poles 3 Primary Connections|Pole 1 Secondary Connection|Pole 1 Series 144 Short Circuit Current Rating 10 kA Standards UL 1059 File No. XCFR2.E62806, CSA C22-2 No. 158, File No. LR19766, CE Certified to IEC 60947-7-1, RoHS Compliant Type Stud UNSPSC 39121410 UPC 11 78433743614 UPC 12 78433743614 Stock Status NONSTOCK Brand Marathon® Manufacturer Marathon Special Products Amperage Rating 840 A Material Copper Voltage Rating 600 VAC/VDC Wire Size 3/8 to 16 AWG Features: Wire Range: Line Side: Listed Ring Lugs Or Bus Bars; Load Side: Listed Ring Lug Or Bus Bars; Electrical Ratings:- 840 AMP; CE Rated Voltage (Ui): 1,000 V AC/DC Per IEC 60947-7-1 Material Group: IIIA; Pollution °: 3; 600 Volts AC/DC (UL 1059 Class C, User Group - General Industrial); Short Circuit Current Rating: 10,000 AMP (Default); Factory Wiring Only; Mechanical Ratings: Insulator Base Temperature Rating: -40 ° C/F To 150 ° C (302 DEG F)* UL RTI; Flammability Rating Of Insulator Base: UL 94V-0; Use Outside These Ratings Needs To Be Judged In The End-Use Application; Materials: Connector: High Conductivity Copper, Tin Plated; Insulator Base: Phenolic; Threaded Stud: Brass, Tin Plated; Hex Nut: Brass, Nickel Plated (1 Supplied Per Stud); Agency Approvals: UL Recognized, UL 1059 Terminal Block Standard, File No. XCFR2.E62806; CSA Certified, CSA Flexible stranded wire compliant Multiple wire rating Panel mountable UL 94 V-0 flammability -40 to 150 deg C (UL RTI) insulator base temperature rating Tin plated brass threaded stud 21.7 N-m line side and line side torque Phenolic insulator base, tin plated copper connector and nickel plated brass hex nut 1-1/2 in maximum lug/bar width 1 in stud LED 3/8 - 16 stud wire range for line and load side 75 deg C connector terminal rating with copper or aluminum wire
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 1443614 |
| Color | Black |
| Country of Origin | USA |
| Dimensions | 4.75 in H x 6.03 in W x 2.91 in D |
| Finish | Tin Plated |
| Gross Weight Per Pack | 1 lb |
| Number Of Poles | 3 |
| Primary Connections|Pole | 1 |
| Secondary Connection|Pole | 1 |
| Series | 144 |
| Short Circuit Current Rating | 10 kA |
| Standards | UL 1059 File No. XCFR2.E62806, CSA C22-2 No. 158, File No. LR19766, CE Certified to IEC 60947-7-1, RoHS Compliant |
| Type | Stud |
| UNSPSC | 39121410 |
| UPC 11 | 78433743614 |
| UPC 12 | 78433743614 |
| Stock Status | NONSTOCK |
| Brand | Marathon® |
| Manufacturer | Marathon Special Products |
| Amperage Rating | 840 A |
| Material | Copper |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 3/8 to 16 AWG |
| Features: Wire Range: Line Side: Listed Ring Lugs Or Bus Bars; Load Side: Listed Ring Lug Or Bus Bars; Electrical Ratings:- 840 AMP; CE Rated Voltage (Ui): 1,000 V AC/DC Per IEC 60947-7-1 Material Group: IIIA; Pollution °: 3; 600 Volts AC/DC (UL 1059 Class C, User Group - General Industrial); Short Circuit Current Rating: 10,000 AMP (Default); Factory Wiring Only; Mechanical Ratings: Insulator Base Temperature Rating: -40 ° C/F To 150 ° C (302 DEG F)* UL RTI; Flammability Rating Of Insulator Base: UL 94V-0; Use Outside These Ratings Needs To Be Judged In The End-Use Application; Materials: Connector: High Conductivity Copper, Tin Plated; Insulator Base: Phenolic; Threaded Stud: Brass, Tin Plated; Hex Nut: Brass, Nickel Plated (1 Supplied Per Stud); Agency Approvals: UL Recognized, UL 1059 Terminal Block Standard, File No. XCFR2.E62806; CSA Certified, CSA |
| Flexible stranded wire compliant |
| Multiple wire rating |
| Panel mountable |
| UL 94 V-0 flammability |
| -40 to 150 deg C (UL RTI) insulator base temperature rating |
| Tin plated brass threaded stud |
| 21.7 N-m line side and line side torque |
| Phenolic insulator base, tin plated copper connector and nickel plated brass hex nut |
| 1-1/2 in maximum lug/bar width |
| 1 in stud LED |
| 3/8 - 16 stud wire range for line and load side |
| 75 deg C connector terminal rating with copper or aluminum wire |
