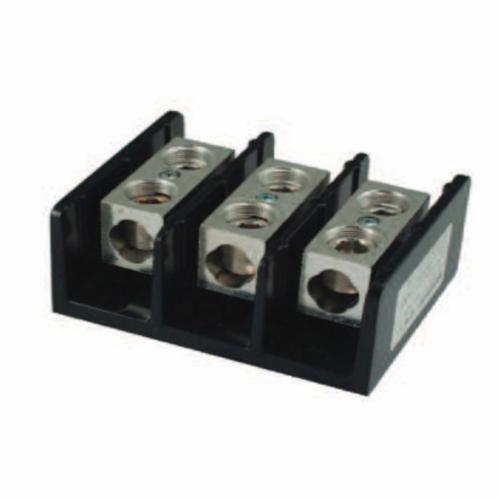

Marathon® 1441557 144 Power Splicer/Distribution Block, 600 VAC/VDC, 420 A, 1 Pole, 4 AWG to 600 kcmil Wire
Marathon® 1441557 144 Power Splicer/Distribution Block, 600 VAC/VDC, 420 A, 1 Pole, 4 AWG to 600 kcmil Wire
SKU208796
MFGR #1441557
Your Cost: $333.20/ea
Marathon® Power Splicer/Distribution Block, Series: 144, 600 VAC/VDC, 420 A, 1 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 4 AWG to 600 kcmil Wire, Class J/T/RK1/RK5/G/CC Fuse, 10 kA Short Circuit Current Rating, Black, 4.75 in H x 2.28 in W x 2.91 in D
Marathon® Power Splicer/Distribution Block, Series: 144, 600 VAC/VDC, 420 A, 1 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 4 AWG to 600 kcmil Wire, Class J/T/RK1/RK5/G/CC Fuse, 10 kA Short Circuit Current Rating, Black, 4.75 in H x 2.28 in W x 2.91 in D
Catalog Number 1441557 Color Black Country of Origin USA Dimensions 4.75 in H x 2.28 in W x 2.91 in D Fuse Type Class J/T/RK1/RK5/G/CC Gross Weight Per Pack 1 lb Number Of Poles 1 Primary Connections|Pole 1 Secondary Connection|Pole 1 Series 144 Short Circuit Current Rating 10 kA Standards UL QPQS.E309401 (UL 1953) Listed, UL XCFR2.E62806 (UL 1059), CSA LR19766 (CSA C22-2 No.158) Certified, CE (Component IEC 60947-7-1), RoHS Compliant UNSPSC 39121410 UPC 11 78433741557 UPC 12 78433741557 Stock Status NONSTOCK Brand Marathon® Manufacturer Marathon Special Products Amperage Rating 420 A Voltage Rating 600 VAC/VDC Wire Size 4 AWG to 600 kcmil Features: Wire Range: Line Side: (1) 600 KCMIL - 4 AWG; Load Side: (1) 600 KCMIL - 4 AWG; Electrical Ratings: 420 AMP Copper Wire, 340 AMP Aluminum Wire (Based On NEC Table 310-16, 75 ° C Columns); 600 Volts AC/DC (UL 1059 Class C, User Group - General Industrial); Factory And Field Wiring; Mechanical Ratings: Maximum Insulator Base Temperature: 150 ° C (302 ° F) UL RTI; Flammability Rating Of Insulator Base: UL 94 V-0; Use Outside These Ratings Needs To Be Judged In The End-Use Application; Materials: Connector: High Conductive Aluminum, Tin Plated; Insulator Base: Phenolic; Terminal Set Screws: Aluminum, Tin Plated; Connector Mounting Screw: Steel, Zinc Plated; Agency Approvals: UL Recognized, UL 1059 Terminal Block Standard, File No. XCFR2.E62806; CSA Certified, CSA C22.2 No. 158, File No. LR19766 (Wire Classes B & C Only)L CE Compliant To IEC 60947-7-1; Flexible stranded wire compliant Multiple wire rating Panel mountable UL94V-0 flammability 125 deg C (257 deg F) UL RTI temperature rating 56.5 N-m line side torque and load side torque Tin plated connector, terminal set screws and zinc plated connector mounting screws Phenolic insulator, tin plated aluminum connector 600 kcmil - 4 AWG line, 600 kcmil - 4 AWG load wire size
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 1441557 |
| Color | Black |
| Country of Origin | USA |
| Dimensions | 4.75 in H x 2.28 in W x 2.91 in D |
| Fuse Type | Class J/T/RK1/RK5/G/CC |
| Gross Weight Per Pack | 1 lb |
| Number Of Poles | 1 |
| Primary Connections|Pole | 1 |
| Secondary Connection|Pole | 1 |
| Series | 144 |
| Short Circuit Current Rating | 10 kA |
| Standards | UL QPQS.E309401 (UL 1953) Listed, UL XCFR2.E62806 (UL 1059), CSA LR19766 (CSA C22-2 No.158) Certified, CE (Component IEC 60947-7-1), RoHS Compliant |
| UNSPSC | 39121410 |
| UPC 11 | 78433741557 |
| UPC 12 | 78433741557 |
| Stock Status | NONSTOCK |
| Brand | Marathon® |
| Manufacturer | Marathon Special Products |
| Amperage Rating | 420 A |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 4 AWG to 600 kcmil |
| Features: Wire Range: Line Side: (1) 600 KCMIL - 4 AWG; Load Side: (1) 600 KCMIL - 4 AWG; Electrical Ratings: 420 AMP Copper Wire, 340 AMP Aluminum Wire (Based On NEC Table 310-16, 75 ° C Columns); 600 Volts AC/DC (UL 1059 Class C, User Group - General Industrial); Factory And Field Wiring; Mechanical Ratings: Maximum Insulator Base Temperature: 150 ° C (302 ° F) UL RTI; Flammability Rating Of Insulator Base: UL 94 V-0; Use Outside These Ratings Needs To Be Judged In The End-Use Application; Materials: Connector: High Conductive Aluminum, Tin Plated; Insulator Base: Phenolic; Terminal Set Screws: Aluminum, Tin Plated; Connector Mounting Screw: Steel, Zinc Plated; Agency Approvals: UL Recognized, UL 1059 Terminal Block Standard, File No. XCFR2.E62806; CSA Certified, CSA C22.2 No. 158, File No. LR19766 (Wire Classes B & C Only)L CE Compliant To IEC 60947-7-1; |
| Flexible stranded wire compliant |
| Multiple wire rating |
| Panel mountable |
| UL94V-0 flammability |
| 125 deg C (257 deg F) UL RTI temperature rating |
| 56.5 N-m line side torque and load side torque |
| Tin plated connector, terminal set screws and zinc plated connector mounting screws |
| Phenolic insulator, tin plated aluminum connector |
| 600 kcmil - 4 AWG line, 600 kcmil - 4 AWG load wire size |
