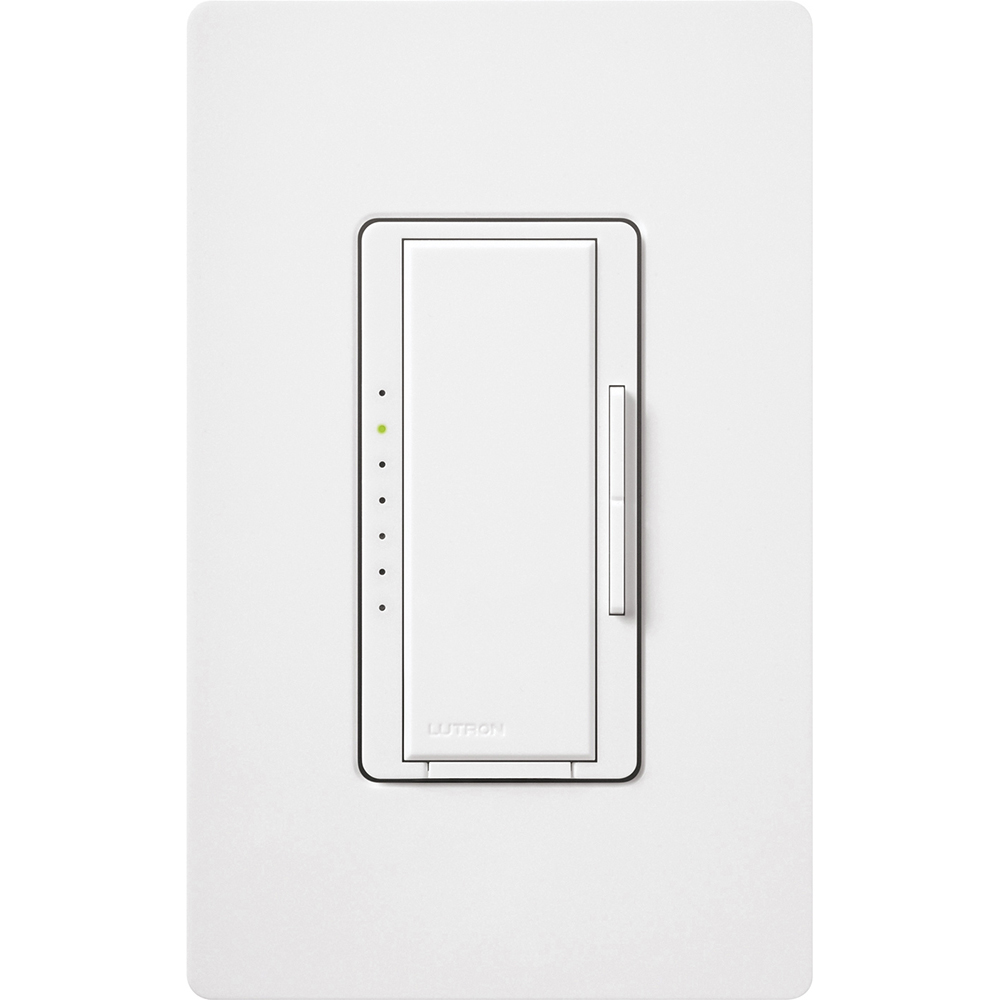

Maestro® MALV-1000-WH Digital Fade Magnetic Low Voltage Dimmer, 120 VAC, 1 Pole, On/Off Mode, White
Maestro® MALV-1000-WH Digital Fade Magnetic Low Voltage Dimmer, 120 VAC, 1 Pole, On/Off Mode, White
SKU65332
MFGR #MALV-1000-WH
Your Cost: $149.35/ea
Maestro® Low Voltage Dimmer, Digital Fade Magnetic, 120 VAC, 800 W, 60 Hz, 1 Pole, Preset Start, Operation Mode: On/Off, Tap/Touch Rocker, Wall Box Mount, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 0.3 in D
Maestro® Low Voltage Dimmer, Digital Fade Magnetic, 120 VAC, 800 W, 60 Hz, 1 Pole, Preset Start, Operation Mode: On/Off, Tap/Touch Rocker, Wall Box Mount, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 0.3 in D
Actuator Tapswitch Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number MALV-1000-WH Connection Screw Terminal Connection Type Screw Terminal Control Tap/Touch Rocker Country of Origin US Currency USD Dimensions 4.69 in H x 2.94 in W x 0.3 in D Enclosure Plastic Environmental Conditions 0 to 90% humidity, non-condensing EU RoHS Indicator N Face Material Metal;Plastic Frequency Rating 50-60 Hz Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.2700 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 4.50 in Height [Metric] 11.4300 cm Insulation Plastic Length 2.30 in Length [Metric] 5.8420 cm Material Metal/Plastic Mounting Wallbox Mounting Type Wall Box Number Of Poles 1 Operating Temperature 32 to 104 °F Power Rating 800 W Series MALV-1000 Size 4.69 x 2.94 in Standard UL, CSA, NOM, ISO 9001 Standards UL Listed, CSA, NOM Certified Start Type Pre-Set Sub Brand Maestro Switch Type Tapswitch Temperature Rating 0 to 40 °C Terminal Type Push-In/Screw Type Digital fade dimmer, multi-location/single-pole UNSPSC 39122206 UPC 11 02755768763 UPC 12 027557687638 Wattage 800 W Width 2.30 in Width [Metric] 5.8420 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Color White Operation Mode ON/OFF Voltage Rating 120 VAC Lighting Control Controls 1000 W (800 W) magnetic low-voltage loads. Provides true dimming from each location (with companion dimmers). True multi-location dimming from every location Tap on to preset level, tap off, tap twice for full on, touch rocker to adjust light level LEDs indicate light level and glow softly in the dark Delayed off provides light as you exit the room Line frequency compensation maintains stable light levels despite power line frequency and voltage variations Programming allows customized functions Gloss finish Mechanical air gap switch to disconnect load power 100% factory tested Includes Radio Frequency Interference suppression Front accessible service switch (FASSTM) to disconnect load power Electrostatic discharge tested Tap on to favorite level; tap off Tap twice for full on Press, hold and release for delayed fade-to-off Touch rocker to adjust light level Provides true dimming from each location (with companion dimmers) Gloss finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | Tapswitch |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MALV-1000-WH |
| Connection | Screw Terminal |
| Connection Type | Screw Terminal |
| Control | Tap/Touch Rocker |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.69 in H x 2.94 in W x 0.3 in D |
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| EU RoHS Indicator | N |
| Face Material | Metal;Plastic |
| Frequency Rating | 50-60 Hz |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.2700 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Insulation | Plastic |
| Length | 2.30 in |
| Length [Metric] | 5.8420 cm |
| Material | Metal/Plastic |
| Mounting | Wallbox |
| Mounting Type | Wall Box |
| Number Of Poles | 1 |
| Operating Temperature | 32 to 104 °F |
| Power Rating | 800 W |
| Series | MALV-1000 |
| Size | 4.69 x 2.94 in |
| Standard | UL, CSA, NOM, ISO 9001 |
| Standards | UL Listed, CSA, NOM Certified |
| Start Type | Pre-Set |
| Sub Brand | Maestro |
| Switch Type | Tapswitch |
| Temperature Rating | 0 to 40 °C |
| Terminal Type | Push-In/Screw |
| Type | Digital fade dimmer, multi-location/single-pole |
| UNSPSC | 39122206 |
| UPC 11 | 02755768763 |
| UPC 12 | 027557687638 |
| Wattage | 800 W |
| Width | 2.30 in |
| Width [Metric] | 5.8420 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Color | White |
| Operation Mode | ON/OFF |
| Voltage Rating | 120 VAC |
| Lighting Control |
| Controls 1000 W (800 W) magnetic low-voltage loads. Provides true dimming from each location (with companion dimmers). |
| True multi-location dimming from every location |
| Tap on to preset level, tap off, tap twice for full on, touch rocker to adjust light level |
| LEDs indicate light level and glow softly in the dark |
| Delayed off provides light as you exit the room |
| Line frequency compensation maintains stable light levels despite power line frequency and voltage variations |
| Programming allows customized functions |
| Gloss finish |
| Mechanical air gap switch to disconnect load power |
| 100% factory tested |
| Includes Radio Frequency Interference suppression |
| Front accessible service switch (FASSTM) to disconnect load power |
| Electrostatic discharge tested |
| Tap on to favorite level; tap off |
| Tap twice for full on |
| Press, hold and release for delayed fade-to-off |
| Touch rocker to adjust light level |
| Provides true dimming from each location (with companion dimmers) |
| Gloss finish |
