Lutron®

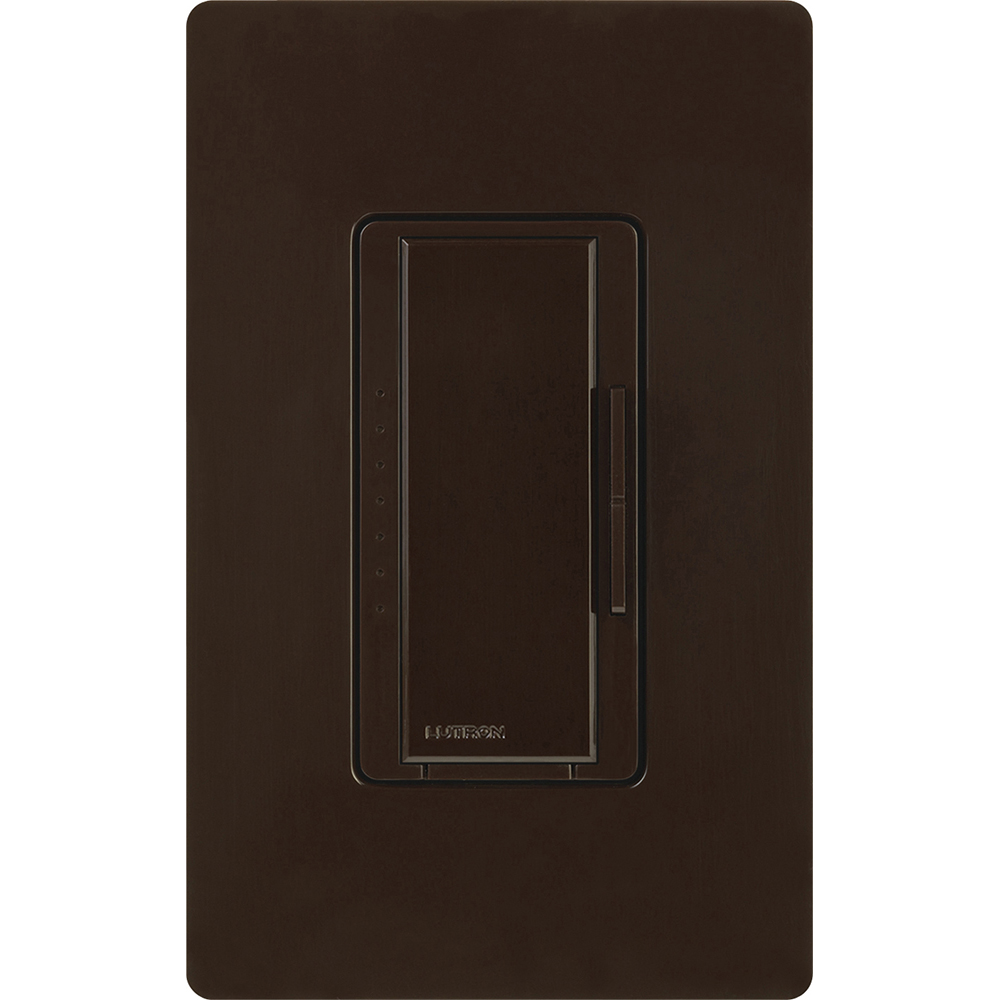

Maestro® MAELV-600-BR Electronic Multi-Location Low Voltage Dimmer, 120 VAC, 1 Pole, On/Off Mode, Brown
Lutron®
Maestro® MAELV-600-BR Electronic Multi-Location Low Voltage Dimmer, 120 VAC, 1 Pole, On/Off Mode, Brown
SKU644040
MFGR #MAELV-600-BR
Your Cost: $195.70/ea
The Maestro® dimmer features an advanced programming mode (APM) that allows the user to customize their dimmer to meet their specific needs. This document serves as a supplement to the instruction sheet. Before entering APM, it is important to have a good understanding of the features included.
The Maestro® dimmer features an advanced programming mode (APM) that allows the user to customize their dimmer to meet their specific needs. This document serves as a supplement to the instruction sheet. Before entering APM, it is important to have a good understanding of the features included.
Actuator Tapswitch Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number MAELV-600-BR Connection Screw Terminal Connection Type Screw Terminal Control Tap Country of Origin US Currency USD Dimensions 4.69 in H x 2.94 in W x 0.3 in D Enclosure Plastic Environmental Conditions 0 to 90% humidity, non-condensing EU RoHS Indicator N Face Material Metal;Plastic Frequency Rating 60 Hz Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.3800 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 4.50 in Height [Metric] 11.4300 cm Insulation Plastic Lamp Type LED Length 2.30 in Length [Metric] 5.8420 cm Material Metal/Plastic Mounting Wallbox Mounting Type Wall Box Number Of Poles 1 Operating Temperature 32 to 104 °F Power Rating 600 W Size 4.69 x 2.94 in Standard UL, CSA, NOM, ISO 9001 Standards UL Listed, CSA, NOM Certified Start Type Pre-Set Sub Brand Maestro Switch Type Tapswitch Temperature Rating 0 to 40 °C Type Digital fade dimmer, multi-location/single-pole UNSPSC 39122206 UPC 11 02755744308 UPC 12 027557443081 Wattage 600 W Width 2.30 in Width [Metric] 5.8420 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Color Brown Operation Mode ON/OFF Voltage Rating 120 VAC Lighting Control Controls 600 W electronic low-voltage loads. Provides true dimming from each location (with companion dimmers). For multi-location dimming, use one Maestro® smart dimmer with up to nine Maestro® smart remotes, MA-R Requires neutral wire connection Minimum load on dimmer is 5 W Derating required if ganged Not for use with mechanical 3-way or 4-way switches Gloss finish Programming allows customized functions Mechanical air gap switch to disconnect load power 100% factory tested
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | Tapswitch |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MAELV-600-BR |
| Connection | Screw Terminal |
| Connection Type | Screw Terminal |
| Control | Tap |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.69 in H x 2.94 in W x 0.3 in D |
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| EU RoHS Indicator | N |
| Face Material | Metal;Plastic |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.3800 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Insulation | Plastic |
| Lamp Type | LED |
| Length | 2.30 in |
| Length [Metric] | 5.8420 cm |
| Material | Metal/Plastic |
| Mounting | Wallbox |
| Mounting Type | Wall Box |
| Number Of Poles | 1 |
| Operating Temperature | 32 to 104 °F |
| Power Rating | 600 W |
| Size | 4.69 x 2.94 in |
| Standard | UL, CSA, NOM, ISO 9001 |
| Standards | UL Listed, CSA, NOM Certified |
| Start Type | Pre-Set |
| Sub Brand | Maestro |
| Switch Type | Tapswitch |
| Temperature Rating | 0 to 40 °C |
| Type | Digital fade dimmer, multi-location/single-pole |
| UNSPSC | 39122206 |
| UPC 11 | 02755744308 |
| UPC 12 | 027557443081 |
| Wattage | 600 W |
| Width | 2.30 in |
| Width [Metric] | 5.8420 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Color | Brown |
| Operation Mode | ON/OFF |
| Voltage Rating | 120 VAC |
| Lighting Control |
| Controls 600 W electronic low-voltage loads. Provides true dimming from each location (with companion dimmers). |
| For multi-location dimming, use one Maestro® smart dimmer with up to nine Maestro® smart remotes, MA-R |
| Requires neutral wire connection |
| Minimum load on dimmer is 5 W |
| Derating required if ganged |
| Not for use with mechanical 3-way or 4-way switches |
| Gloss finish |
| Programming allows customized functions |
| Mechanical air gap switch to disconnect load power |
| 100% factory tested |
