Lutron®

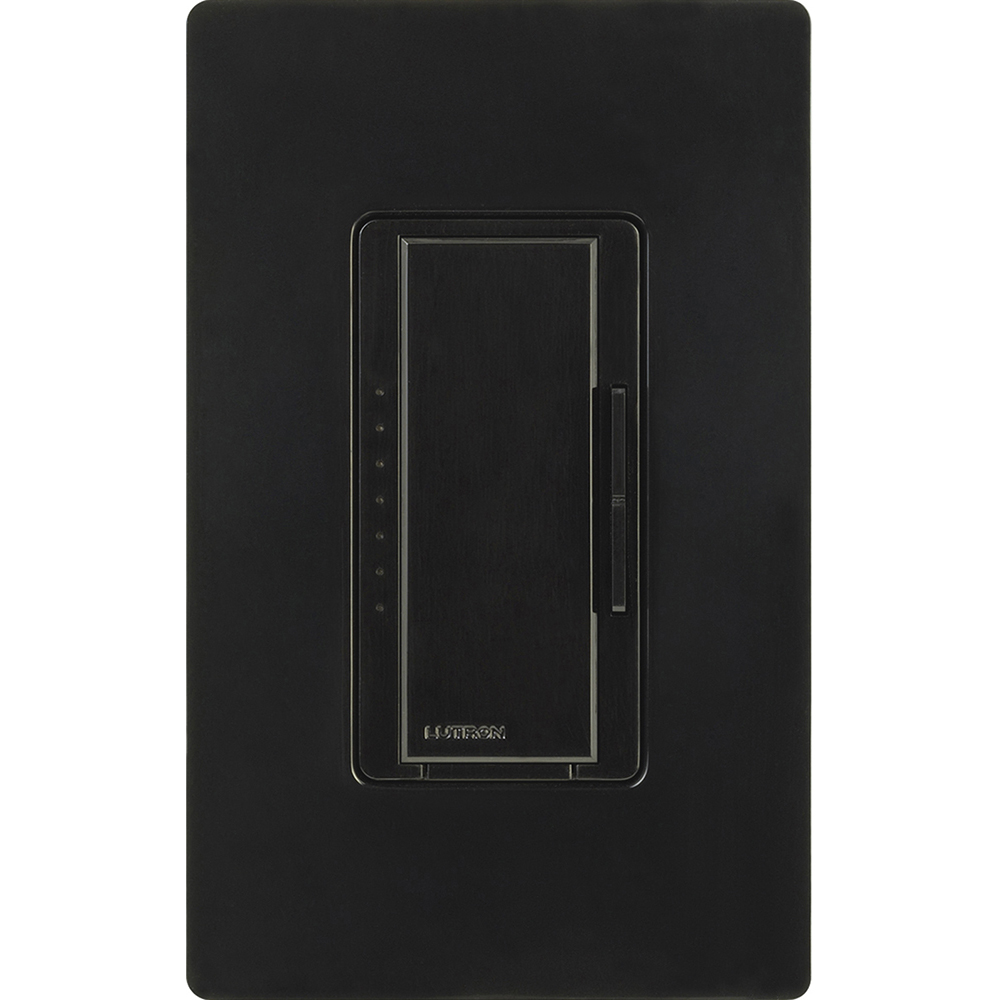

Maestro® MAELV-600-BL Electronic Multi-Location Low Voltage Dimmer, 120 VAC, 1 Pole, On/Off Mode, Black
Lutron®
Maestro® MAELV-600-BL Electronic Multi-Location Low Voltage Dimmer, 120 VAC, 1 Pole, On/Off Mode, Black
SKU334653
MFGR #MAELV-600-BL
Your Cost: $195.70/ea
The Maestro® dimmer features an advanced programming mode (APM) that allows the user to customize their dimmer to meet their specific needs. This document serves as a supplement to the instruction sheet. Before entering APM, it is important to have a good understanding of the features included.
The Maestro® dimmer features an advanced programming mode (APM) that allows the user to customize their dimmer to meet their specific needs. This document serves as a supplement to the instruction sheet. Before entering APM, it is important to have a good understanding of the features included.
Actuator Tapswitch Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number MAELV-600-BL Connection Screw Terminal Connection Type Screw Terminal Control Tap/Touch Rocker Country of Origin US Currency USD Dimensions 4.69 in H x 2.94 in W x 0.3 in D Enclosure Plastic Environmental Conditions 0 to 90% humidity, non-condensing EU RoHS Indicator N Face Material Metal;Plastic Frequency Rating 60 Hz Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.3800 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 4.50 in Height [Metric] 11.4300 cm Insulation Plastic Lamp Type LED Length 2.30 in Length [Metric] 5.8420 cm Material Metal/Plastic Mounting Wallbox Mounting Type Wall Number Of Poles 1 Operating Temperature 32 to 104 °F Power Rating 600 W Series MAELV-600 Size 4.69 x 2.94 in Standard UL, CSA, NOM, ISO 9001 Standards UL ListedCSA CertifiedNOM Certified Start Type Pre-Set Sub Brand Maestro Switch Type Tapswitch Temperature Rating 0 to 40 °C Terminal Type Push-In/Screw Type Digital fade dimmer, multi-location/single-pole UNSPSC 39122206 UPC 11 02755744309 UPC 12 027557443098 Wattage 600 W Width 2.30 in Width [Metric] 5.8420 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Color Black Operation Mode ON/OFF Voltage Rating 120 VAC Lighting Control Controls 600 W electronic low-voltage loads. Provides true dimming from each location (with companion dimmers). True multi-location dimming from every location Tap on to favorite level, tap off, tap twice for full on Touch rocker to adjust light level LEDs indicate light level and glow softly in the dark as a locator light Delayed off provides light as you exit the room Line frequency compensation maintains stable light levels despite power line frequency and voltage variations Programming allows customized functions Mechanical air gap switch to disconnect load power 100% factory tested
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | Tapswitch |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MAELV-600-BL |
| Connection | Screw Terminal |
| Connection Type | Screw Terminal |
| Control | Tap/Touch Rocker |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.69 in H x 2.94 in W x 0.3 in D |
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| EU RoHS Indicator | N |
| Face Material | Metal;Plastic |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.3800 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Insulation | Plastic |
| Lamp Type | LED |
| Length | 2.30 in |
| Length [Metric] | 5.8420 cm |
| Material | Metal/Plastic |
| Mounting | Wallbox |
| Mounting Type | Wall |
| Number Of Poles | 1 |
| Operating Temperature | 32 to 104 °F |
| Power Rating | 600 W |
| Series | MAELV-600 |
| Size | 4.69 x 2.94 in |
| Standard | UL, CSA, NOM, ISO 9001 |
| Standards | UL ListedCSA CertifiedNOM Certified |
| Start Type | Pre-Set |
| Sub Brand | Maestro |
| Switch Type | Tapswitch |
| Temperature Rating | 0 to 40 °C |
| Terminal Type | Push-In/Screw |
| Type | Digital fade dimmer, multi-location/single-pole |
| UNSPSC | 39122206 |
| UPC 11 | 02755744309 |
| UPC 12 | 027557443098 |
| Wattage | 600 W |
| Width | 2.30 in |
| Width [Metric] | 5.8420 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Color | Black |
| Operation Mode | ON/OFF |
| Voltage Rating | 120 VAC |
| Lighting Control |
| Controls 600 W electronic low-voltage loads. Provides true dimming from each location (with companion dimmers). |
| True multi-location dimming from every location |
| Tap on to favorite level, tap off, tap twice for full on |
| Touch rocker to adjust light level |
| LEDs indicate light level and glow softly in the dark as a locator light |
| Delayed off provides light as you exit the room |
| Line frequency compensation maintains stable light levels despite power line frequency and voltage variations |
| Programming allows customized functions |
| Mechanical air gap switch to disconnect load power |
| 100% factory tested |
