MORSE®

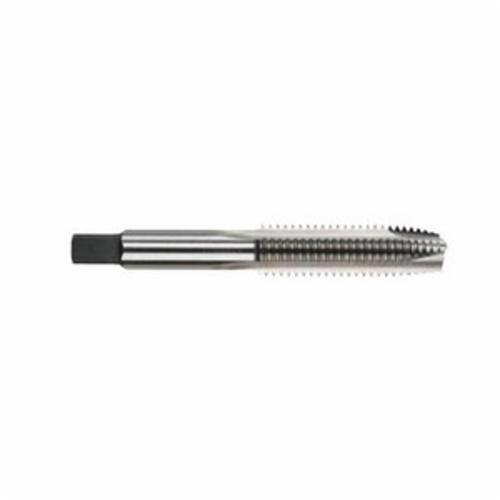

MORSE® 38509 7501 General Purpose Straight Flute Spiral Point Tap, Metric, M8x1.25, Ground, 2 Flutes, D5 Class of Fit, Plug Chamfer, HSS, Bright
MORSE®
MORSE® 38509 7501 General Purpose Straight Flute Spiral Point Tap, Metric, M8x1.25, Ground, 2 Flutes, D5 Class of Fit, Plug Chamfer, HSS, Bright
SKU568221
MFGR #38509
Your Cost: $10.41/ea
List: MORSE® Spiral Point Tap, General Purpose Straight Flute, Series: 7501, Measurement System: Metric, M8x1.25, Ground, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: D5, 1-1/8 in Thread Length, 2-23/32 in Overall Length
MORSE® Spiral Point Tap, General Purpose Straight Flute, Series: 7501, Measurement System: Metric, M8x1.25, Ground, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: D5, 1-1/8 in Thread Length, 2-23/32 in Overall Length
Catalog Number 38509 Country of Origin US Finish|Coating Bright Gross Weight Per Pack 0.0600 lb Measurement System Metric Overall Length 2-23/32 in Series 7501 Standards ISO 9001:2008 Thread Length 1-1/8 in Thread Standard Ground Type General Purpose UNSPSC 23241615 UPC 11 68612538509 UPC 12 68612538509 Stock Status NONSTOCK Brand MORSE® Manufacturer Morse Cutting Tools Chamfer Type Plug Material HSS Number of Flutes 2 Thread Limit D5 Thread Size M8x1.25 Spiral point taps are designed for machine tapping in through holes in a wide variety of materials The point ejects the chips ahead of the tap, eliminating chip disposal problems and thread damage Shallower flutes also result in greater tap core strength allowing for higher cutting speeds
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 38509 |
| Country of Origin | US |
| Finish|Coating | Bright |
| Gross Weight Per Pack | 0.0600 lb |
| Measurement System | Metric |
| Overall Length | 2-23/32 in |
| Series | 7501 |
| Standards | ISO 9001:2008 |
| Thread Length | 1-1/8 in |
| Thread Standard | Ground |
| Type | General Purpose |
| UNSPSC | 23241615 |
| UPC 11 | 68612538509 |
| UPC 12 | 68612538509 |
| Stock Status | NONSTOCK |
| Brand | MORSE® |
| Manufacturer | Morse Cutting Tools |
| Chamfer Type | Plug |
| Material | HSS |
| Number of Flutes | 2 |
| Thread Limit | D5 |
| Thread Size | M8x1.25 |
| Spiral point taps are designed for machine tapping in through holes in a wide variety of materials |
| The point ejects the chips ahead of the tap, eliminating chip disposal problems and thread damage |
| Shallower flutes also result in greater tap core strength allowing for higher cutting speeds |
