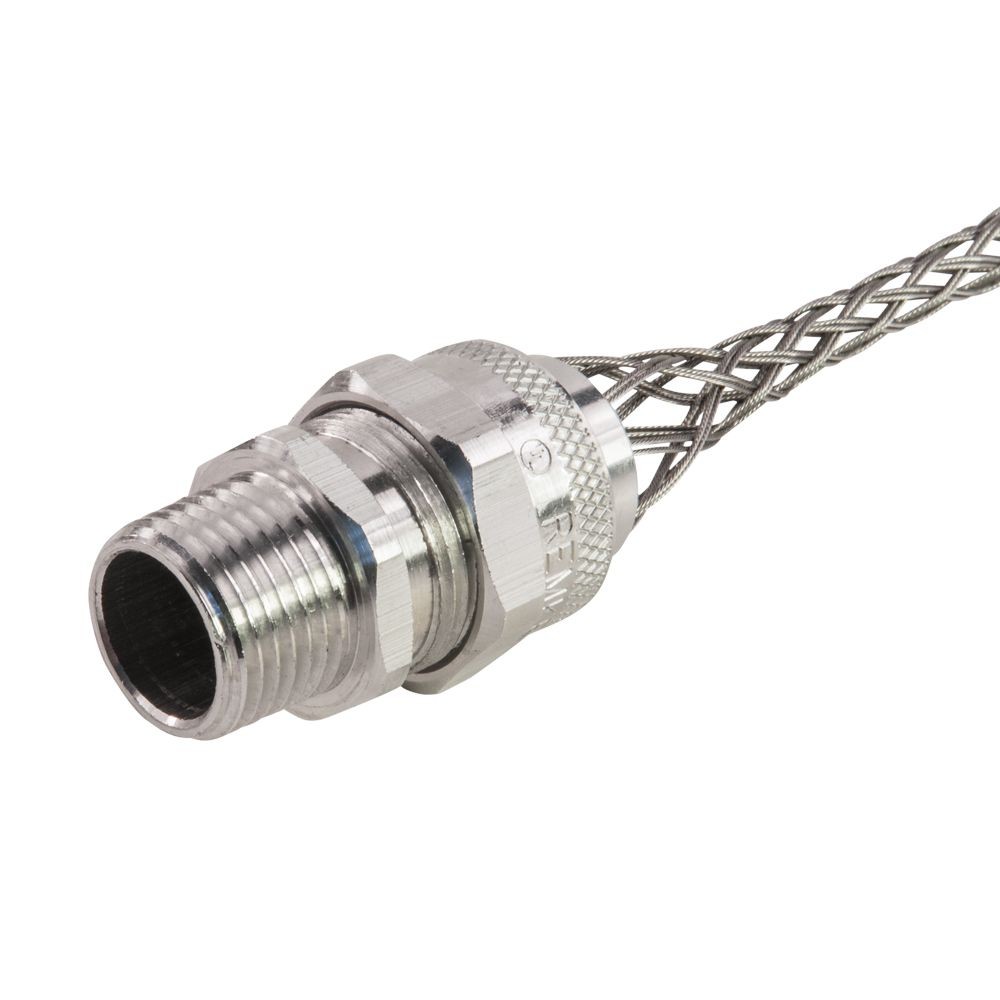

Tuff-Seal™
MESH GRIP ST CORD GRIP 2
Tuff-Seal™
MESH GRIP ST CORD GRIP 2
SKU361750
MFGR #RSR-6731-E
Your Cost: $459.71/ea
2IN CRD GRIP W/MESH
2IN CRD GRIP W/MESH
Application For use in indoor & outdoor applications to prevent cable pullout, control arc of bend, and to provide a tight seal against environmental elements such as dirt, moisture and coolants. ARRA Compliant C Buy American Compliant C Catalog Number RSR-6731-E Conductor Range 1.812 - 1.938 in Connection Male Threaded X Compression Connection Type Male Threaded x Compression Country of Origin US Currency USD Dimensions 4.2 in W Environmental Conditions Flammability: UL 94V-2 EU RoHS Indicator Y Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 3.32 in Height [Metric] 8.4328 cm Length 23.62 in Length [Metric] 59.9948 cm NEMA Rating NEMA 3, 3R, 4, 6, 12 Series RSR Size 2 in Standard RoHS Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantWEE CompliantRoHS 2011/65/EUCSA 28985UL 94-HB, UL 94-V-2 Flammability RatingClass I, Division 2, Class II, Division 1 and 2, and Class III, Division 1 and 2UL File No. E53599NEC Articles 400-10 Sub Brand Tuff-Seal™ Temperature Rating -40 to 250 °F Type Form Size 7 Straight UNSPSC 39121431 UPC 11 78541115134 UPC 12 78541115134 Width 4.20 in Width [Metric] 10.6680 cm Stock Status NONSTOCK Brand Tuff-Seal™ Manufacturer Remke Industries Cable Openings 1.812 to 1.938 in Material Aluminum Trade Size 2 in For use in indoor & outdoor applications to prevent cable pullout, control arc of bend, and to provide a tight seal against environmental elements such as dirt, moisture and coolants. Available in NPT, PG, Metric or ISO threads. With our without stainless steel wire mesh. A unique design with a combination tightening surface that includes both a hex area and knurled surface providing extra gripping for initial hand tightening Anti-friction washer that fits between the nut and bushing for easier compression Excellent durability and performance for most industrial applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For use in indoor & outdoor applications to prevent cable pullout, control arc of bend, and to provide a tight seal against environmental elements such as dirt, moisture and coolants. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | RSR-6731-E |
| Conductor Range | 1.812 - 1.938 in |
| Connection | Male Threaded X Compression |
| Connection Type | Male Threaded x Compression |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.2 in W |
| Environmental Conditions | Flammability: UL 94V-2 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 3.32 in |
| Height [Metric] | 8.4328 cm |
| Length | 23.62 in |
| Length [Metric] | 59.9948 cm |
| NEMA Rating | NEMA 3, 3R, 4, 6, 12 |
| Series | RSR |
| Size | 2 in |
| Standard | RoHS Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantWEE CompliantRoHS 2011/65/EUCSA 28985UL 94-HB, UL 94-V-2 Flammability RatingClass I, Division 2, Class II, Division 1 and 2, and Class III, Division 1 and 2UL File No. E53599NEC Articles 400-10 |
| Sub Brand | Tuff-Seal™ |
| Temperature Rating | -40 to 250 °F |
| Type | Form Size 7 Straight |
| UNSPSC | 39121431 |
| UPC 11 | 78541115134 |
| UPC 12 | 78541115134 |
| Width | 4.20 in |
| Width [Metric] | 10.6680 cm |
| Stock Status | NONSTOCK |
| Brand | Tuff-Seal™ |
| Manufacturer | Remke Industries |
| Cable Openings | 1.812 to 1.938 in |
| Material | Aluminum |
| Trade Size | 2 in |
| For use in indoor & outdoor applications to prevent cable pullout, control arc of bend, and to provide a tight seal against environmental elements such as dirt, moisture and coolants. |
| Available in NPT, PG, Metric or ISO threads. With our without stainless steel wire mesh. |
| A unique design with a combination tightening surface that includes both a hex area and knurled surface providing extra gripping for initial hand tightening |
| Anti-friction washer that fits between the nut and bushing for easier compression |
| Excellent durability and performance for most industrial applications |
