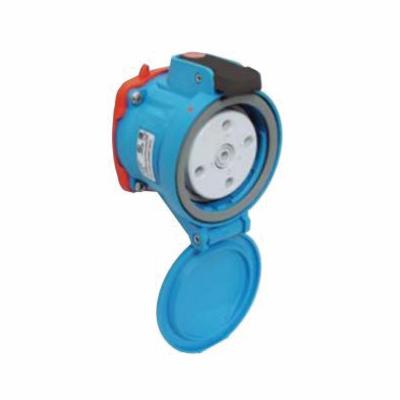

MELTRIC Decontactor™ 63-64043-843 DSN60 Female Receptacle With Padlock Pawl, 480 VAC, 60 A, 3 Poles, Blue
Custom_Product_Images_Illustration
MELTRIC Decontactor™ 63-64043-843 DSN60 Female Receptacle With Padlock Pawl, 480 VAC, 60 A, 3 Poles, Blue
SKU819927
MFGR #63-64043-843
Your Cost: $542.87/ea
List: MELTRIC Decontactor™ Receptacle, Female, Series: DSN60, 480 VAC, 60 A, 20 hp, 50 to 400 Hz, 3 Poles, NEMA 4X, IP66/67 Enclosure, -40 to 140 deg F, Screw Terminal, Thermoplastic Polyester, Blue, 2.27 in Dia
MELTRIC Decontactor™ Receptacle, Female, Series: DSN60, 480 VAC, 60 A, 20 hp, 50 to 400 Hz, 3 Poles, NEMA 4X, IP66/67 Enclosure, -40 to 140 deg F, Screw Terminal, Thermoplastic Polyester, Blue, 2.27 in Dia
Catalog Number 63-64043-843 Country of Origin USA Dimensions 4.3 in H x 3.64 in D Enclosure IP66/IP67/IP69k Frequency Rating 60 Hz Gross Weight Per Pack 0.9100 lb Horsepower 20 hp Material Polyester NEMA Rating NEMA 4X Number Of Poles 3 Series DSN60 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682/1682CSA 182.1 Temperature Rating -40 to 140 °F Terminal Type Screw Type Switch Rated UNSPSC 39121406 UPC 11 78447455134 UPC 12 78447455134 Stock Status NONSTOCK Brand MELTRIC Manufacturer Meltric Corporation Amperage Rating 60 A Color Blue Number of Wires 4 Voltage Rating 255/277/440/480 VAC Switch and hp rated (AC only) 100 kA short circuit rated Compact, lightweight design Up to 4 auxiliary contacts Spring assisted screw terminals patented design assures ''tighten and forget'' confidence Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations Lid provides additional protection from harsh environments OFF button press to de-energize and provides push button circuit disconnection Dead front/safety shutter assures safety by preventing user access to live parts 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240 VAC, 20 hp at 480/600 VAC 3-phase horsepower rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 63-64043-843 |
| Country of Origin | USA |
| Dimensions | 4.3 in H x 3.64 in D |
| Enclosure | IP66/IP67/IP69k |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 0.9100 lb |
| Horsepower | 20 hp |
| Material | Polyester |
| NEMA Rating | NEMA 4X |
| Number Of Poles | 3 |
| Series | DSN60 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682/1682CSA 182.1 |
| Temperature Rating | -40 to 140 °F |
| Terminal Type | Screw |
| Type | Switch Rated |
| UNSPSC | 39121406 |
| UPC 11 | 78447455134 |
| UPC 12 | 78447455134 |
| Stock Status | NONSTOCK |
| Brand | MELTRIC |
| Manufacturer | Meltric Corporation |
| Amperage Rating | 60 A |
| Color | Blue |
| Number of Wires | 4 |
| Voltage Rating | 255/277/440/480 VAC |
| Switch and hp rated (AC only) |
| 100 kA short circuit rated |
| Compact, lightweight design |
| Up to 4 auxiliary contacts |
| Spring assisted screw terminals patented design assures ''tighten and forget'' confidence |
| Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations |
| Lid provides additional protection from harsh environments |
| OFF button press to de-energize and provides push button circuit disconnection |
| Dead front/safety shutter assures safety by preventing user access to live parts |
| 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240 VAC, 20 hp at 480/600 VAC 3-phase horsepower rating |
