MELTRIC

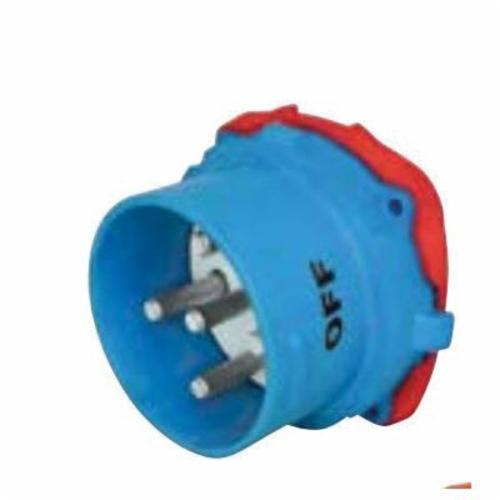

MELTRIC Decontactor™ 33-98143 DS100 Pin and Sleeve Inlet, 600 VAC, 100 A, 3 Poles, Blue
MELTRIC
MELTRIC Decontactor™ 33-98143 DS100 Pin and Sleeve Inlet, 600 VAC, 100 A, 3 Poles, Blue
SKU852810
MFGR #33-98143
Your Cost: $576.22/ea
List: DS series Decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DSs environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
DS series Decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DSs environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
Catalog Number 33-98143 Country of Origin USA Dimensions 4.45 in Dia x 2.8 in L Enclosure IP54/IP55 Frequency Rating 60 Hz Gross Weight Per Pack 2.0200 lb Material Polyester NEMA Rating NEMA 3R Number Of Poles 3 Series DS100 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682UL 1682CSA 182.1CE MarkedNOM CertifiedIEC CertifiedNFPA 70E Temperature Rating -40 to 140 °F Terminal Type Screw Type Switch Rated UNSPSC 39121402 UPC 11 78447412433 UPC 12 78447412433 Stock Status NONSTOCK Brand MELTRIC Manufacturer Meltric Corporation Amperage Rating 100 A Color Blue Number of Wires 4 Voltage Rating 347/600 VAC Enclosure NEMA 3R, IP54/IP55, Wiring Capacity 4 To 2/0 AWG, Polarity 3 Pole, Ground, Short Circuit Rating 65 KAMP Switch and horsepower rated (AC only 65 to 100 kA short circuit rated Up to 200 A amperage rating Up to 4 auxiliary contacts Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance 4 to 2/0 AWG wiring capacity 3 hp at 120 VAC, 7-1/2 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 30 hp at 480 VAC 3-phase horsepower rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Catalog Number | 33-98143 |
| Country of Origin | USA |
| Dimensions | 4.45 in Dia x 2.8 in L |
| Enclosure | IP54/IP55 |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 2.0200 lb |
| Material | Polyester |
| NEMA Rating | NEMA 3R |
| Number Of Poles | 3 |
| Series | DS100 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682UL 1682CSA 182.1CE MarkedNOM CertifiedIEC CertifiedNFPA 70E |
| Temperature Rating | -40 to 140 °F |
| Terminal Type | Screw |
| Type | Switch Rated |
| UNSPSC | 39121402 |
| UPC 11 | 78447412433 |
| UPC 12 | 78447412433 |
| Stock Status | NONSTOCK |
| Brand | MELTRIC |
| Manufacturer | Meltric Corporation |
| Amperage Rating | 100 A |
| Color | Blue |
| Number of Wires | 4 |
| Voltage Rating | 347/600 VAC |
| Enclosure NEMA 3R, IP54/IP55, Wiring Capacity 4 To 2/0 AWG, Polarity 3 Pole, Ground, Short Circuit Rating 65 KAMP |
| Switch and horsepower rated (AC only |
| 65 to 100 kA short circuit rated |
| Up to 200 A amperage rating |
| Up to 4 auxiliary contacts |
| Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions |
| Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance |
| 4 to 2/0 AWG wiring capacity |
| 3 hp at 120 VAC, 7-1/2 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 30 hp at 480 VAC 3-phase horsepower rating |
