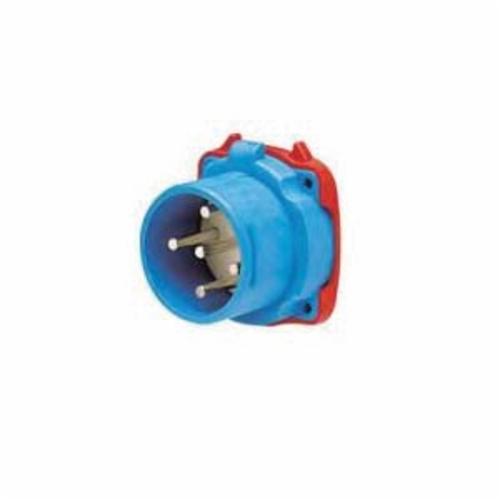

MELTRIC Decontactor™ 33-68043-4X DS60 Pin and Sleeve Inlet, 480 VAC, 60 A, 3 Poles, Blue
SKU1065307
MFGR #33-68043-4X
Your Cost: $286.94/ea
List: DS series decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DSs environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
DS series decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DSs environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
Catalog Number 33-68043-4X Country of Origin USA Dimensions 3.77 in H x 3.44 in D Enclosure IP54/IP55 Frequency Rating 60 Hz Horsepower 25 hp Material Polyester NEMA Rating NEMA 4X Number Of Poles 3 Series DS60 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682/1682CSA 182.1 Temperature Rating -40 to 140 °F Terminal Type Screw Type Switch Rated UNSPSC 39121402 UPC 11 78447464675 UPC 12 78447464675 Stock Status NONSTOCK Brand MELTRIC Manufacturer Meltric Corporation Amperage Rating 60 A Color Blue Number of Wires 4 Voltage Rating 255/277/440/480 VAC Switch and hp rated (AC only) 65 to 100 kA short circuit rated Amperage rating up to 200 A Up to 4 auxiliary contacts Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance 3 hp at 120 VAC, 5 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 25 hp at 480/600 VAC 3-phase horsepower rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 33-68043-4X |
| Country of Origin | USA |
| Dimensions | 3.77 in H x 3.44 in D |
| Enclosure | IP54/IP55 |
| Frequency Rating | 60 Hz |
| Horsepower | 25 hp |
| Material | Polyester |
| NEMA Rating | NEMA 4X |
| Number Of Poles | 3 |
| Series | DS60 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 2682/1682CSA 182.1 |
| Temperature Rating | -40 to 140 °F |
| Terminal Type | Screw |
| Type | Switch Rated |
| UNSPSC | 39121402 |
| UPC 11 | 78447464675 |
| UPC 12 | 78447464675 |
| Stock Status | NONSTOCK |
| Brand | MELTRIC |
| Manufacturer | Meltric Corporation |
| Amperage Rating | 60 A |
| Color | Blue |
| Number of Wires | 4 |
| Voltage Rating | 255/277/440/480 VAC |
| Switch and hp rated (AC only) |
| 65 to 100 kA short circuit rated |
| Amperage rating up to 200 A |
| Up to 4 auxiliary contacts |
| Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions |
| Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance |
| 3 hp at 120 VAC, 5 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 25 hp at 480/600 VAC 3-phase horsepower rating |
