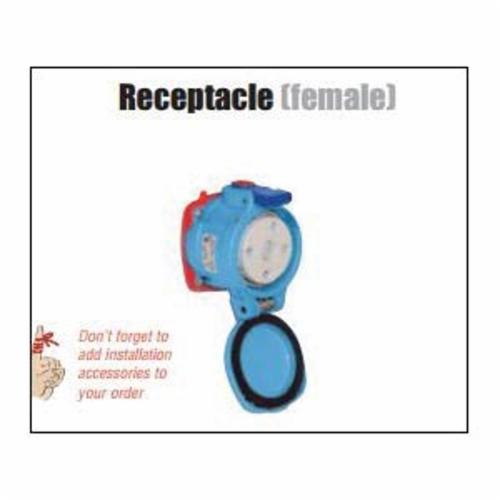

MELTRIC Decontactor™ 33-64173-C-K07 DS100C Pin and Sleeve Receptacle, 250 VAC, 100 A, 3 Poles, 4 Wires, Blue
Pin & Sleeve Receptacles
875698
MFG #: 33-64173-C-K07
MELTRIC
723.42000
/ ea
DS Series Decontactor™s provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
- Features
| With Ground, Short Circuit Rating 100 KAMP |
| Switch and hp rated (AC only) |
| 65 to 100 kA short circuit rated |
| Amperage rating up to 200 A |
| Up to 6 auxiliary contacts |
| Spring assisted screw terminals patented design assures ''tighten and forget'' confidence |
| Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations |
| Lid provides Type 3R water protection (4X optional) for additional protection in harsh environments |
| OFF button press to de-energize and provides push button circuit disconnection |
| Dead front/safety shutter assures safety by preventing user access to live parts |
| 5 hp at 120 VAC, 10 hp at 240 VAC 1-phase, 20 hp at 208/240 VAC, 50 hp at 480/600 VAC 3-phase horsepower rating |
