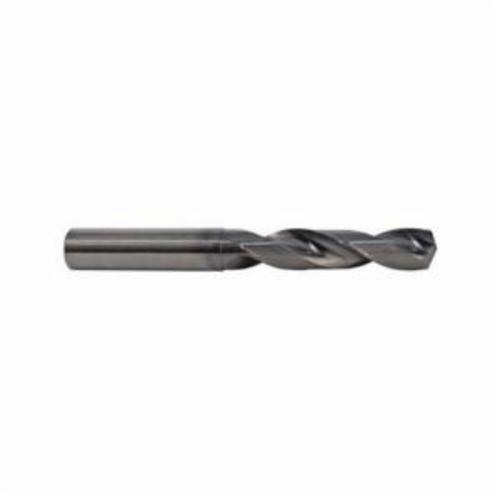

M.A. Ford® Twister® XD 2XDCS3701A Xtreme Stub Length High Performance Drill Bit With Coolant Fed, 9.4 mm Dia x 89 mm L
M.A. Ford® Twister® XD 2XDCS3701A Xtreme Stub Length High Performance Drill Bit With Coolant Fed, 9.4 mm Dia x 89 mm L
SKUPDW~7302419
MFGR #2XDCS3701A
Your Cost: $226.32/ea
M.A. Ford® Twister® XD High Performance Drill Bit, Xtreme Stub Length, Series: 2XDCS, 9.4 mm Dia, 89 mm Overall Length, 3XD Cutting Depth, 2 Flutes, 47 mm Flute Length, 10 mm Shank, Round Shank, 140/142 deg Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, ALtima® Coated, Applicable Materials: Steel, Cast Iron, Stainless Steel and Special Alloy
M.A. Ford® Twister® XD High Performance Drill Bit, Xtreme Stub Length, Series: 2XDCS, 9.4 mm Dia, 89 mm Overall Length, 3XD Cutting Depth, 2 Flutes, 47 mm Flute Length, 10 mm Shank, Round Shank, 140/142 deg Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, ALtima® Coated, Applicable Materials: Steel, Cast Iron, Stainless Steel and Special Alloy
Catalog Number 2XDCS3701A Country of Origin US Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Diameter Measurement System Imperial/Metric Flute Length 47 mm Flute Type Spiral Gross Weight Per Pack 1 lb Number of Flutes 2 Overall Length 89 mm Point Angle 140/142 ° Point Type Standard Series 2XDCS Shank Size 10 mm Shank Type Straight Standards ISO 9001:2008 Type Xtreme High Performance UNSPSC 23241605 UPC 11 69760404582 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Applicable Materials Steel, Cast Iron, Stainless Steel and Special Alloy Finish ALtima® Coated Material Solid Carbide Designed for high performance drilling in a broad range of materials Advanced active cut geometric design Redefined critical cut zone characteristics High efficiency flute profile State-of-the-art proprietary coating Stable low thrust point form Extended tool life Elevated metal removal rates (MRR) Lower cost per hole Improved hole/part quality Increased tool reliability Factory trained network of application and technical specialists Factory reconditioning service Ideal platform for modification or an engineered special tool Compatibility to a wide range of standard toolholder systems
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 2XDCS3701A |
| Country of Origin | US |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 47 mm |
| Flute Type | Spiral |
| Gross Weight Per Pack | 1 lb |
| Number of Flutes | 2 |
| Overall Length | 89 mm |
| Point Angle | 140/142 ° |
| Point Type | Standard |
| Series | 2XDCS |
| Shank Size | 10 mm |
| Shank Type | Straight |
| Standards | ISO 9001:2008 |
| Type | Xtreme High Performance |
| UNSPSC | 23241605 |
| UPC 11 | 69760404582 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Applicable Materials | Steel, Cast Iron, Stainless Steel and Special Alloy |
| Finish | ALtima® Coated |
| Material | Solid Carbide |
| Designed for high performance drilling in a broad range of materials |
| Advanced active cut geometric design |
| Redefined critical cut zone characteristics |
| High efficiency flute profile |
| State-of-the-art proprietary coating |
| Stable low thrust point form |
| Extended tool life |
| Elevated metal removal rates (MRR) |
| Lower cost per hole |
| Improved hole/part quality |
| Increased tool reliability |
| Factory trained network of application and technical specialists |
| Factory reconditioning service |
| Ideal platform for modification or an engineered special tool |
| Compatibility to a wide range of standard toolholder systems |
