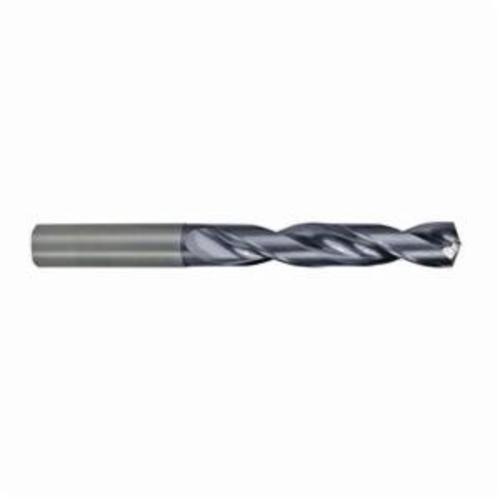

M.A. Ford® Twister® XD 2XDCR3438A Xtreme Regular Length High Performance Drill Bit With Coolant Fed, 11/32 in Dia
M.A. Ford® Twister® XD 2XDCR3438A Xtreme Regular Length High Performance Drill Bit With Coolant Fed, 11/32 in Dia
SKUPDW~7302247
MFGR #2XDCR3438A
Your Cost: $227.08/ea
M.A. Ford® Twister® XD High Performance Drill Bit, Xtreme Regular Length, Series: 2XDCR, 11/32 in Dia, 4.06 in Overall Length, 5XD Cutting Depth, 2 Flutes, 2.17 in Flute Length, 25/64 in Shank, 140/142 deg Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, ALtima® Coated, Applicable Materials: Steel, Cast Iron, Stainless Steel and Special Alloy
M.A. Ford® Twister® XD High Performance Drill Bit, Xtreme Regular Length, Series: 2XDCR, 11/32 in Dia, 4.06 in Overall Length, 5XD Cutting Depth, 2 Flutes, 2.17 in Flute Length, 25/64 in Shank, 140/142 deg Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, ALtima® Coated, Applicable Materials: Steel, Cast Iron, Stainless Steel and Special Alloy
Applicable Materials Cast Iron, Steels, Stainless Steels and Special Alloys Catalog Number 2XDCR3438A Country of Origin US Cutting Depth 5XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Diameter Measurement System Imperial Flute Length 2.17 in Flute Type Spiral Gross Weight Per Pack 1 lb Number of Flutes 2 Overall Length 4.06 in Point Type Standard Series 2XDCR Shank Size 25/64 in Shank Type Straight Standards ISO 9001:2008 Through Coolant [Yes|No] Yes Type Regular Length Xtreme High Performance UNSPSC 23241605 UPC 11 69760402712 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Finish ALtima® Coated Material Solid Carbide Point Angle 142 ° Advanced active cut geometric design Redefined critical cut zone characteristics High efficiency flute profile State-of-the-art proprietary coating Stable low thrust point form Extended tool life Elevated metal removal rates (MRR) Lower cost per hole Improved hole/part quality Increased tool reliability Factory trained network of application and technical specialists Factory reconditioning service Ideal platform for modification or an engineered special tool Compatibility to a wide range of standard toolholder systems
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Applicable Materials | Cast Iron, Steels, Stainless Steels and Special Alloys |
| Catalog Number | 2XDCR3438A |
| Country of Origin | US |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 2.17 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 1 lb |
| Number of Flutes | 2 |
| Overall Length | 4.06 in |
| Point Type | Standard |
| Series | 2XDCR |
| Shank Size | 25/64 in |
| Shank Type | Straight |
| Standards | ISO 9001:2008 |
| Through Coolant [Yes|No] | Yes |
| Type | Regular Length Xtreme High Performance |
| UNSPSC | 23241605 |
| UPC 11 | 69760402712 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Finish | ALtima® Coated |
| Material | Solid Carbide |
| Point Angle | 142 ° |
| Advanced active cut geometric design |
| Redefined critical cut zone characteristics |
| High efficiency flute profile |
| State-of-the-art proprietary coating |
| Stable low thrust point form |
| Extended tool life |
| Elevated metal removal rates (MRR) |
| Lower cost per hole |
| Improved hole/part quality |
| Increased tool reliability |
| Factory trained network of application and technical specialists |
| Factory reconditioning service |
| Ideal platform for modification or an engineered special tool |
| Compatibility to a wide range of standard toolholder systems |
