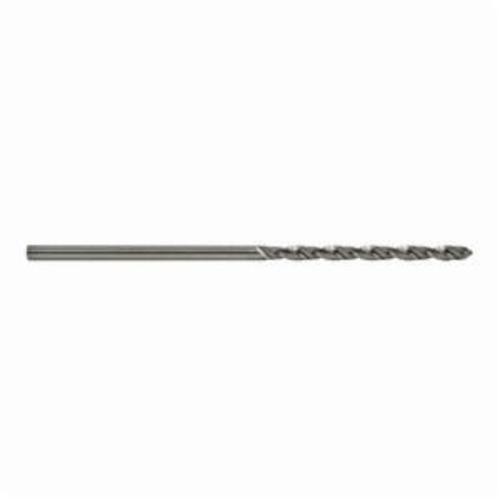

M.A. Ford® Twister® GP 30001970 Regular Length Specialty Drill Bit, 0.5 mm Dia x 38 mm L, Solid Carbide, Uncoated
M.A. Ford® Twister® GP 30001970 Regular Length Specialty Drill Bit, 0.5 mm Dia x 38 mm L, Solid Carbide, Uncoated
SKU1067998
MFGR #30001970
Your Cost: $13.56/ea
List: M.A. Ford® drills are designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels. Twister® GP drills are an excellent choice for all general purpose hole-making and provide these high performance benefits.
M.A. Ford® drills are designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels. Twister® GP drills are an excellent choice for all general purpose hole-making and provide these high performance benefits.
Applicable Materials Steel, Cast Iron and Non-Ferrous Metals Catalog Number 30001970 Country of Origin US Cutting Depth 5XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Diameter Measurement System Imperial/Metric Flute Length 9.5 mm Flute Type Spiral Number of Flutes 2 Overall Length 38 mm Point Type Normal Series 300 Shank Type Straight Standards ISO 9001:2008 Through Coolant [Yes|No] No Type General Purpose UPC 11 69760430021 UPC 12 69760430021 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Finish Bright Material Solid Carbide Point Angle 118 ° Designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels High feed rates with excellent chip evacuation Accurate hole size in a wide range of materials Pre-drilling and follow-up operations can often be eliminated because of the quality and performance of M.A. Ford® drills Minimal wander produces maximum precision, productivity and drill life Web-thinned drill designs are available for reduced power requirements, lower temperatures and extended drill life 3-flute geometries are available to reduce chip load/tooth and increase tool life in highly alloyed steels Designed for drilling soft metals as well as glass reinforced circuit boards, phenolic-epoxies and other abrasive, but easily machined materials
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Applicable Materials | Steel, Cast Iron and Non-Ferrous Metals |
| Catalog Number | 30001970 |
| Country of Origin | US |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 9.5 mm |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Overall Length | 38 mm |
| Point Type | Normal |
| Series | 300 |
| Shank Type | Straight |
| Standards | ISO 9001:2008 |
| Through Coolant [Yes|No] | No |
| Type | General Purpose |
| UPC 11 | 69760430021 |
| UPC 12 | 69760430021 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Finish | Bright |
| Material | Solid Carbide |
| Point Angle | 118 ° |
| Designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels |
| High feed rates with excellent chip evacuation |
| Accurate hole size in a wide range of materials |
| Pre-drilling and follow-up operations can often be eliminated because of the quality and performance of M.A. Ford® drills |
| Minimal wander produces maximum precision, productivity and drill life |
| Web-thinned drill designs are available for reduced power requirements, lower temperatures and extended drill life |
| 3-flute geometries are available to reduce chip load/tooth and increase tool life in highly alloyed steels |
| Designed for drilling soft metals as well as glass reinforced circuit boards, phenolic-epoxies and other abrasive, but easily machined materials |
