M.A. Ford®

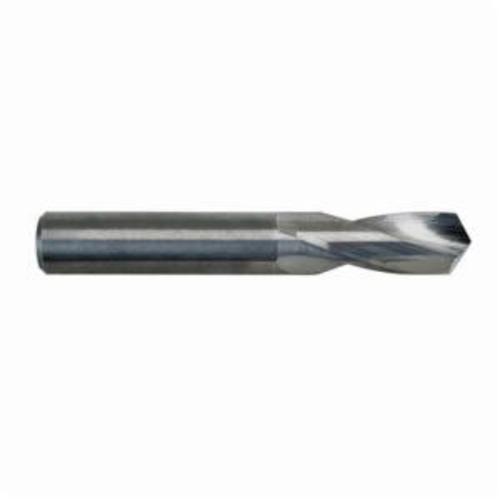

M.A. Ford® Twister® GP 22620080 Stub Length Screw Machine Drill Bit, 5.1 mm Dia x 62 mm L, Solid Carbide, Bright
M.A. Ford®
M.A. Ford® Twister® GP 22620080 Stub Length Screw Machine Drill Bit, 5.1 mm Dia x 62 mm L, Solid Carbide, Bright
SKU1010047
MFGR #22620080
Your Cost: $21.78/ea
List: M.A. Ford® drills are designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels. Twister® GP drills are an excellent choice for all general purpose hole-making and provide these high performance benefits.
M.A. Ford® drills are designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels. Twister® GP drills are an excellent choice for all general purpose hole-making and provide these high performance benefits.
Catalog Number 22620080 Country of Origin US Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Diameter Measurement System Imperial/Metric Flute Length 26 mm Flute Type Spiral Number of Flutes 2 Overall Length 62 mm Point Angle 118 ° Point Type 4-Facet Series 226 Shank Type Straight Standards DIN 6539 Type General Purpose UPC 11 69760426326 UPC 12 69760426326 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Applicable Materials Steel, Stainless Steel, Cast Iron, Aluminum, Bronze and Magnesium Alloy and Non-Ferrous Materials Finish Bright Material Solid Carbide Designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels High feed rates with excellent chip evacuation Accurate hole size in a wide range of materials Pre-drilling and follow-up operations can often be eliminated because of the quality and performance of M.A. Ford® drills Minimal wander produces maximum precision, productivity and drill life Web-thinned drill designs are available for reduced power requirements, lower temperatures and extended drill life Designed to allow high feed rates with good chip flow Four facet drill point minimizes drill wander and assures accurately sized holes Shorter length reduces deflection and vibration, increases drill accuracy and improves tool life
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 22620080 |
| Country of Origin | US |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 26 mm |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Overall Length | 62 mm |
| Point Angle | 118 ° |
| Point Type | 4-Facet |
| Series | 226 |
| Shank Type | Straight |
| Standards | DIN 6539 |
| Type | General Purpose |
| UPC 11 | 69760426326 |
| UPC 12 | 69760426326 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Aluminum, Bronze and Magnesium Alloy and Non-Ferrous Materials |
| Finish | Bright |
| Material | Solid Carbide |
| Designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels |
| High feed rates with excellent chip evacuation |
| Accurate hole size in a wide range of materials |
| Pre-drilling and follow-up operations can often be eliminated because of the quality and performance of M.A. Ford® drills |
| Minimal wander produces maximum precision, productivity and drill life |
| Web-thinned drill designs are available for reduced power requirements, lower temperatures and extended drill life |
| Designed to allow high feed rates with good chip flow |
| Four facet drill point minimizes drill wander and assures accurately sized holes |
| Shorter length reduces deflection and vibration, increases drill accuracy and improves tool life |
