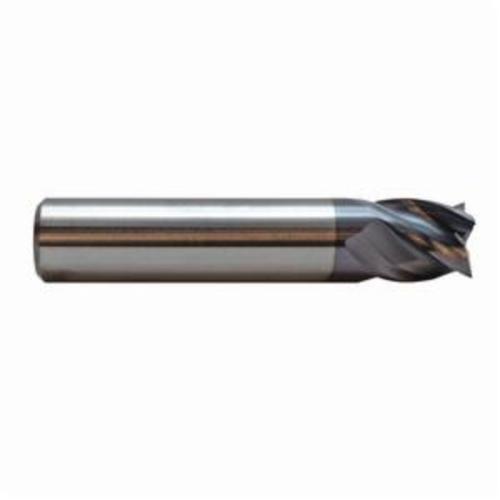

M.A. Ford® TuffCut® XR 17743700A Center Cutting Square End End Mill, 7/16 in, 7/16 in Max Depth of Cut, 4 Flutes, 7/16 in Shank, 2-1/2 in OAL
M.A. Ford® TuffCut® XR 17743700A Center Cutting Square End End Mill, 7/16 in, 7/16 in Max Depth of Cut, 4 Flutes, 7/16 in Shank, 2-1/2 in OAL
SKUPDW~7297911
MFGR #17743700A
Your Cost: $120.60/ea
M.A. Ford® TuffCut® End Mills perform better and last significantly longer than competitive products, minimizing process downtime and maximizing productivity and cost efficiency. Included in our product line are high performance end mills developed for specific applications such as stainless steels and high temperature alloys, hardened steel, titanium, composite material, aluminum and softer alloys.
M.A. Ford® TuffCut® End Mills perform better and last significantly longer than competitive products, minimizing process downtime and maximizing productivity and cost efficiency. Included in our product line are high performance end mills developed for specific applications such as stainless steels and high temperature alloys, hardened steel, titanium, composite material, aluminum and softer alloys.
Catalog Number 17743700A Country of Origin US Cutting Direction Right Hand Gross Weight Per Pack 1 lb Helix Angle 35/38 ° Material Carbide Series 177 Standards ISO 9001:2008 Type Center Cutting Square End UNSPSC 23242511 UPC 11 69760417717 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Cutter Diameter 7/16 in Finish ALtima® Coated Length of Cut 7/16 in Number of Flutes 4 Overall Length 2-1/2 in Shank Diameter 7/16 in Designed for extreme productivity Unique flute geometry reduces harmonics at increased feeds and speeds Uniquely designed heli-pitch grinding geometry promotes continual, vibration free cutting regardless of depth of cut or width of cut Whisper blend transition between OD and neck Reduced vibration harmonics Improved part finishes Maintains cutting edge strength and sharpness for improved tool life Slotting at 1X Dia deep ALtima® is the original high performance coating This coating allows tools to be run at higher speeds and feeds in a wide array of materials Also, it allows the option of running tools dry due to the high oxidation temperature of the coating +0.000/-0.003 in tolerance D2 +0.000/-0.003 in tolerance D1 3100 HV microhardness 2012 deg F maximum service 0.42 friction coefficient
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 17743700A |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 1 lb |
| Helix Angle | 35/38 ° |
| Material | Carbide |
| Series | 177 |
| Standards | ISO 9001:2008 |
| Type | Center Cutting Square End |
| UNSPSC | 23242511 |
| UPC 11 | 69760417717 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Cutter Diameter | 7/16 in |
| Finish | ALtima® Coated |
| Length of Cut | 7/16 in |
| Number of Flutes | 4 |
| Overall Length | 2-1/2 in |
| Shank Diameter | 7/16 in |
| Designed for extreme productivity |
| Unique flute geometry reduces harmonics at increased feeds and speeds |
| Uniquely designed heli-pitch grinding geometry promotes continual, vibration free cutting regardless of depth of cut or width of cut |
| Whisper blend transition between OD and neck |
| Reduced vibration harmonics |
| Improved part finishes |
| Maintains cutting edge strength and sharpness for improved tool life |
| Slotting at 1X Dia deep |
| ALtima® is the original high performance coating |
| This coating allows tools to be run at higher speeds and feeds in a wide array of materials |
| Also, it allows the option of running tools dry due to the high oxidation temperature of the coating |
| +0.000/-0.003 in tolerance D2 |
| +0.000/-0.003 in tolerance D1 |
| 3100 HV microhardness |
| 2012 deg F maximum service |
| 0.42 friction coefficient |
