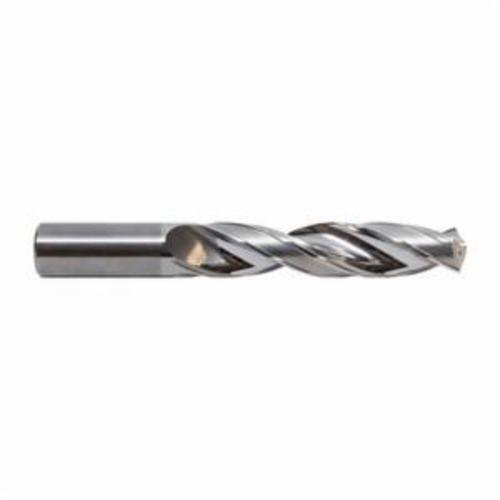

M.A. Ford® Cyclone CDACRM0510 Regular Length High Performance Drill Bit With Coolant Fed, 5.1 mm Dia x 82 mm L
M.A. Ford®
M.A. Ford® Cyclone CDACRM0510 Regular Length High Performance Drill Bit With Coolant Fed, 5.1 mm Dia x 82 mm L
SKU1039828
MFGR #CDACRM0510
Your Cost: $83.11/ea
List: M.A. Ford® Cyclone High Performance Drill Bit, Regular Length, Series: CDACR, 5.1 mm Dia, 82 mm Overall Length, 5XD Cutting Depth, 2 Flutes, 44 mm Flute Length, 6 mm Shank, 140/142 deg Point, Lower Thrust Point, Carbide Cutting Edge, Carbide, Applicable Materials: Aluminum and Non-Ferrous Materials
M.A. Ford® Cyclone High Performance Drill Bit, Regular Length, Series: CDACR, 5.1 mm Dia, 82 mm Overall Length, 5XD Cutting Depth, 2 Flutes, 44 mm Flute Length, 6 mm Shank, 140/142 deg Point, Lower Thrust Point, Carbide Cutting Edge, Carbide, Applicable Materials: Aluminum and Non-Ferrous Materials
Applicable Materials Non-Ferrous Materials Catalog Number CDACRM0510 Country of Origin US Cutting Depth 5XD Cutting Edge Material Carbide Drill Diameter Measurement System Imperial/Metric Flute Length 44 mm Flute Type Spiral Number of Flutes 2 Overall Length 82 mm Point Type Lower Thrust Series CDACR Shank Size 6 mm Shank Type Straight Standards DIN 6537L Through Coolant [Yes|No] Yes Type Double Margin High Performance UPC 11 69760407341 UPC 12 69760407341 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Finish Bright Material Carbide Point Angle 140/142 ° Lower thrust point geometry Enhanced double margin design Reduced cutting forces allowing for heavier feed rates Improved performance in non-ferrous materials Back margin location allows for quicker engagement in hole Improved hole finishes Improved location when drilling through cross holes Higher heat resistance means higher speed and feed capabilities
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Applicable Materials | Non-Ferrous Materials |
| Catalog Number | CDACRM0510 |
| Country of Origin | US |
| Cutting Depth | 5XD |
| Cutting Edge Material | Carbide |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 44 mm |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Overall Length | 82 mm |
| Point Type | Lower Thrust |
| Series | CDACR |
| Shank Size | 6 mm |
| Shank Type | Straight |
| Standards | DIN 6537L |
| Through Coolant [Yes|No] | Yes |
| Type | Double Margin High Performance |
| UPC 11 | 69760407341 |
| UPC 12 | 69760407341 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Finish | Bright |
| Material | Carbide |
| Point Angle | 140/142 ° |
| Lower thrust point geometry |
| Enhanced double margin design |
| Reduced cutting forces allowing for heavier feed rates |
| Improved performance in non-ferrous materials |
| Back margin location allows for quicker engagement in hole |
| Improved hole finishes |
| Improved location when drilling through cross holes |
| Higher heat resistance means higher speed and feed capabilities |
