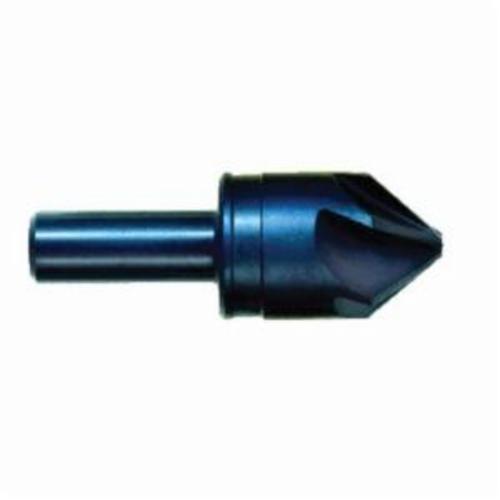

M.A. Ford® 79150003 79 Series Standard Chatterless Countersink With Tang Drive, 90 deg, 1-1/2 in Body, 6 Flutes, HSS
Custom_Product_Images_Illustration
M.A. Ford® 79150003 79 Series Standard Chatterless Countersink With Tang Drive, 90 deg, 1-1/2 in Body, 6 Flutes, HSS
SKU1162003
MFGR #79150003
Your Cost: $94.70/ea
List: All M.A. Ford® HSS countersinks are heat treated in an electronically controlled vacuum furnace. This assures precise hardening and eliminates the possibility of decarburization. All heat treating is done in our own facilities for maximum control and assurance of desired hardness and toughness. Most M.A. Ford® HSS countersinks receive an additional heat treat process known as the Steam Homogeneous Process. This process is like a final tempering, relieving internal grinding stresses. The result is a much tougher cutting edge that stays sharper, longer. Additionally, the Steam Homogeneous Process provides a tough, hard, porous oxide film on the tool that is sufficient enough to retain cutting oil, further reducing frictional heat and extending tool life.
All M.A. Ford® HSS countersinks are heat treated in an electronically controlled vacuum furnace. This assures precise hardening and eliminates the possibility of decarburization. All heat treating is done in our own facilities for maximum control and assurance of desired hardness and toughness. Most M.A. Ford® HSS countersinks receive an additional heat treat process known as the Steam Homogeneous Process. This process is like a final tempering, relieving internal grinding stresses. The result is a much tougher cutting edge that stays sharper, longer. Additionally, the Steam Homogeneous Process provides a tough, hard, porous oxide film on the tool that is sufficient enough to retain cutting oil, further reducing frictional heat and extending tool life.
Catalog Number 79150003 Centerline Angle 45 ° Country of Origin US Cutting Direction Right Hand Finish Uncoated Gross Weight Per Pack 1 lb Nose Diameter 0.43 in Overall Length 3-1/2 in Series 79 Series Shank Type Straight Standards ISO 9001:2008 Type General Purpose Single End Standard Chatterless UNSPSC 23241605 UPC 11 69760479306 UPC 12 69760479306 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Body Diameter 1-1/2 in Included Angle 90 ° Material HSS Minimum Cutting Diameter 0.43 in Number of Flutes 6 Shank Diameter 3/4 in - Steam homogeneous surface treatment (blackening) to prolong tool life and prevent galling.
Features
Because of the multiple flute design, chip loads are generally smaller Even at maximum speeds, chatter free machining is possible Steam homogeneous surface treatment (blackening) is used to prolong tool life and prevent galling Heat treated countersinks deliver increased productivity and tool life
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Catalog Number | 79150003 |
Centerline Angle | 45 ° |
Country of Origin | US |
Cutting Direction | Right Hand |
Finish | Uncoated |
Gross Weight Per Pack | 1 lb |
Nose Diameter | 0.43 in |
Overall Length | 3-1/2 in |
Series | 79 Series |
Shank Type | Straight |
Standards | ISO 9001:2008 |
Type | General Purpose Single End Standard Chatterless |
UNSPSC | 23241605 |
UPC 11 | 69760479306 |
UPC 12 | 69760479306 |
Stock Status | NONSTOCK |
Brand | M.A. Ford® |
Manufacturer | M.A. Ford |
Body Diameter | 1-1/2 in |
Included Angle | 90 ° |
Material | HSS |
Minimum Cutting Diameter | 0.43 in |
Number of Flutes | 6 |
Shank Diameter | 3/4 in |
Features |
Because of the multiple flute design, chip loads are generally smaller |
Even at maximum speeds, chatter free machining is possible |
Steam homogeneous surface treatment (blackening) is used to prolong tool life and prevent galling |
Heat treated countersinks deliver increased productivity and tool life |
