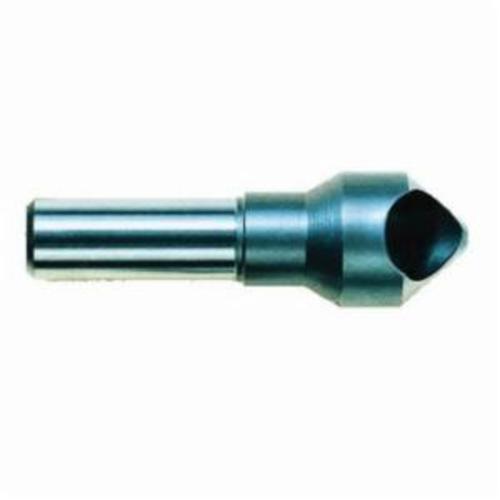

M.A. Ford® 67 Series Single End Zero Flute Countersink, 82 deg, 13/16 in Body, HSS, 1/2 in Shank
Custom_Product_Images_Illustration
M.A. Ford® 67 Series Single End Zero Flute Countersink, 82 deg, 13/16 in Body, HSS, 1/2 in Shank
SKU1061996
MFGR #67081202
All M.A. Ford® HSS countersinks are heat treated in an electronically controlled vacuum furnace. This assures precise hardening and eliminates the possibility of decarburization. All heat treating is done in our own facilities for maximum control and assurance of desired hardness and toughness. Most M.A. Ford® HSS countersinks receive an additional heat treat process known as the Steam Homogeneous Process. This process is like a final tempering, relieving internal grinding stresses. The result is a much tougher cutting edge that stays sharper, longer. Additionally, the Steam Homogeneous Process provides a tough, hard, porous oxide film on the tool that is sufficient enough to retain cutting oil, further reducing frictional heat and extending tool life.
All M.A. Ford® HSS countersinks are heat treated in an electronically controlled vacuum furnace. This assures precise hardening and eliminates the possibility of decarburization. All heat treating is done in our own facilities for maximum control and assurance of desired hardness and toughness. Most M.A. Ford® HSS countersinks receive an additional heat treat process known as the Steam Homogeneous Process. This process is like a final tempering, relieving internal grinding stresses. The result is a much tougher cutting edge that stays sharper, longer. Additionally, the Steam Homogeneous Process provides a tough, hard, porous oxide film on the tool that is sufficient enough to retain cutting oil, further reducing frictional heat and extending tool life.
Catalog Number 67081202 Centerline Angle 41 ° Country of Origin US Cutting Direction Right Hand Finish Uncoated Nose Diameter 0.25 to 0.78 in Overall Length 2-5/8 in Series 67 Series Shank Type Straight Standards ISO 9001:2008 Type General Purpose Single End Zero Flute UPC 11 69760467066 UPC 12 69760467066 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Body Diameter 13/16 in Included Angle 82 ° Material HSS Minimum Cutting Diameter 1/4 in Shank Diameter 1/2 in Efficient stock removal, chatter free finish Bright finish helps reduce chip build-up on cutting edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Catalog Number | 67081202 |
Centerline Angle | 41 ° |
Country of Origin | US |
Cutting Direction | Right Hand |
Finish | Uncoated |
Nose Diameter | 0.25 to 0.78 in |
Overall Length | 2-5/8 in |
Series | 67 Series |
Shank Type | Straight |
Standards | ISO 9001:2008 |
Type | General Purpose Single End Zero Flute |
UPC 11 | 69760467066 |
UPC 12 | 69760467066 |
Stock Status | NONSTOCK |
Brand | M.A. Ford® |
Manufacturer | M.A. Ford |
Body Diameter | 13/16 in |
Included Angle | 82 ° |
Material | HSS |
Minimum Cutting Diameter | 1/4 in |
Shank Diameter | 1/2 in |
Efficient stock removal, chatter free finish |
Bright finish helps reduce chip build-up on cutting edge |
