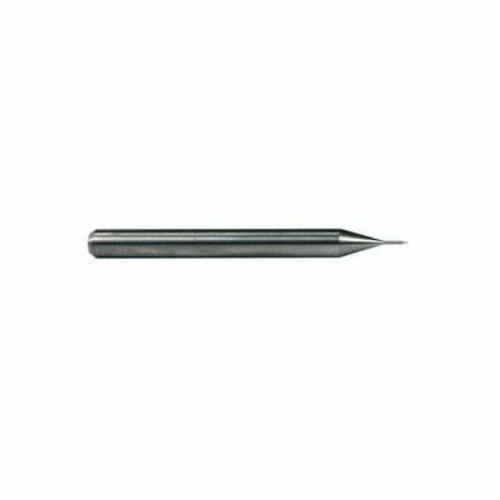

M.A. Ford® 30206700 Twister® GP 302 General Purpose, #51, 1-1/2 in L, 1/8 in Shank
Custom_Product_Images_Illustration
M.A. Ford® 30206700 Twister® GP 302 General Purpose, #51, 1-1/2 in L, 1/8 in Shank
SKUPDW~7303100
MFGR #30206700
Your Cost: $11.22/ea
M.A. Ford® Circuit Board Drill, General Purpose, Series: Twister® GP 302, #51, 1-1/2 in Overall Length, 5xD Cutting Depth, 0.48 in Flute Length, 1/8 in Shank, 130 deg Point, Solid Carbide Cutting Edge, Solid Carbide, Applicable Materials: Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal
M.A. Ford® Circuit Board Drill, General Purpose, Series: Twister® GP 302, #51, 1-1/2 in Overall Length, 5xD Cutting Depth, 0.48 in Flute Length, 1/8 in Shank, 130 deg Point, Solid Carbide Cutting Edge, Solid Carbide, Applicable Materials: Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal
Applicable Materials Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal Catalog Number 30206700 Cutting Depth 5XD Cutting Edge Material Solid Carbide Drill Size ~ Wire #51 Flute Length 0.48 in Gross Weight Per Pack 1 lb Material Solid Carbide Overall Length 1-1/2 in Point Angle 130 ° Series Twister® GP 302 Type General Purpose UPC 11 69760432365 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Shank Size 1/8 in - Solid carbide construction offers advantage of extra rigidity.
- Diameters .0625" to .125", may be supplied with a .480" flute length.
Features
Twister® GP drills are an excellent choice for all general purpose hole-making High feed rates with excellent chip evacuation Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials Minimal wander produces maximum precision, productivity and drill life non-coolant through 35 deg helix angle
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Applicable Materials | Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal |
| Catalog Number | 30206700 |
| Cutting Depth | 5XD |
| Cutting Edge Material | Solid Carbide |
| Drill Size ~ Wire | #51 |
| Flute Length | 0.48 in |
| Gross Weight Per Pack | 1 lb |
| Material | Solid Carbide |
| Overall Length | 1-1/2 in |
| Point Angle | 130 ° |
| Series | Twister® GP 302 |
| Type | General Purpose |
| UPC 11 | 69760432365 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Shank Size | 1/8 in |
Features |
| Twister® GP drills are an excellent choice for all general purpose hole-making |
| High feed rates with excellent chip evacuation |
| Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| Minimal wander produces maximum precision, productivity and drill life non-coolant through |
| 35 deg helix angle |
