M.A. Ford®

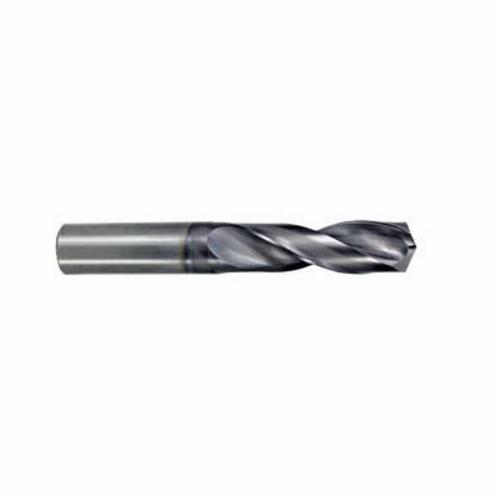

M.A. Ford® 2XDSS3125A Twister® XD/2XDSS Extreme Stub Length High Performance Drill, 5/16 in Dia x 3-1/4 in L, Solid Carbide
Custom_Product_Images_Illustration
M.A. Ford®
M.A. Ford® 2XDSS3125A Twister® XD/2XDSS Extreme Stub Length High Performance Drill, 5/16 in Dia x 3-1/4 in L, Solid Carbide
SKUPDW~7302720
MFGR #2XDSS3125A
Your Cost: $132.59/ea
M.A. Ford® High Performance Drill, Extreme Stub Length, Series: Twister® XD/2XDSS, 5/16 in Dia, 3-1/4 in Overall Length, 3XD Cutting Depth, Spiral Flute, 1-1/2 in Flute Length, 5/16 in Shank, Straight Shank, 142 deg Point, Standard Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, ALtima® Coated, Applicable Materials: Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal Materials
M.A. Ford® High Performance Drill, Extreme Stub Length, Series: Twister® XD/2XDSS, 5/16 in Dia, 3-1/4 in Overall Length, 3XD Cutting Depth, Spiral Flute, 1-1/2 in Flute Length, 5/16 in Shank, Straight Shank, 142 deg Point, Standard Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, ALtima® Coated, Applicable Materials: Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal Materials
Catalog Number 2XDSS3125A Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Diameter Measurement System Imperial Flute Length 1-1/2 in Flute Type Spiral Gross Weight Per Pack 1 lb Number of Flutes 2 Overall Length 3-1/4 in Point Angle 140/142 ° Point Type Standard Series 2XDCS Shank Size 5/16 in Shank Type Straight Type Xtreme High Performance UNSPSC 23241605 UPC 11 69760402214 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Applicable Materials Steel, Cast Iron, Stainless Steel and Special Alloy Finish ALtima® Coated Material Solid Carbide Designed for high performance drilling in a broad range of materials Advanced active cut geometric design Redefined critical cut zone characteristics High efficiency flute profile State-of-the-art proprietary coating Stable low thrust point form Extended tool life Elevated metal removal rates (MRR) Lower cost per hole Improved hole/part quality Increased tool reliability Factory trained network of application and technical specialists Factory reconditioning service Ideal platform for modification or an engineered special tool Compatibility to a wide range of standard toolholder systems
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 2XDSS3125A |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 1-1/2 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 1 lb |
| Number of Flutes | 2 |
| Overall Length | 3-1/4 in |
| Point Angle | 140/142 ° |
| Point Type | Standard |
| Series | 2XDCS |
| Shank Size | 5/16 in |
| Shank Type | Straight |
| Type | Xtreme High Performance |
| UNSPSC | 23241605 |
| UPC 11 | 69760402214 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Applicable Materials | Steel, Cast Iron, Stainless Steel and Special Alloy |
| Finish | ALtima® Coated |
| Material | Solid Carbide |
| Designed for high performance drilling in a broad range of materials |
| Advanced active cut geometric design |
| Redefined critical cut zone characteristics |
| High efficiency flute profile |
| State-of-the-art proprietary coating |
| Stable low thrust point form |
| Extended tool life |
| Elevated metal removal rates (MRR) |
| Lower cost per hole |
| Improved hole/part quality |
| Increased tool reliability |
| Factory trained network of application and technical specialists |
| Factory reconditioning service |
| Ideal platform for modification or an engineered special tool |
| Compatibility to a wide range of standard toolholder systems |
