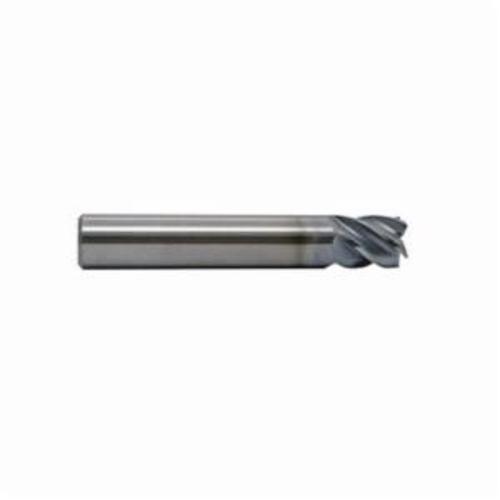

M.A. Ford® 27850007B TuffCut® XT 278 Center Cutting Square End Mill, 1/2 in, 5/8 in Max Depth of Cut, 5 Flutes, 1/2 in Shank
M.A. Ford® 27850007B TuffCut® XT 278 Center Cutting Square End Mill, 1/2 in, 5/8 in Max Depth of Cut, 5 Flutes, 1/2 in Shank
SKU1047815
MFGR #27850007B
Your Cost: $83.84/ea
List: M.A. Ford® TuffCut® XT 278 Center Cutting Square End Mill, 1/2 in, 5/8 in Max Depth of Cut, 5 Flutes, 1/2 in Shank
M.A. Ford® TuffCut® XT 278 Center Cutting Square End Mill, 1/2 in, 5/8 in Max Depth of Cut, 5 Flutes, 1/2 in Shank
Catalog Number 27850007B Country of Origin US Cutting Direction Right Hand Helix Angle 40 ° Material Carbide Series 278 Standards ISO 9001:2008 Type Center Cutting Square End UPC 11 69760497217 UPC 12 69760497217 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Cutter Diameter 1/2 in Finish ALtima® Blaze Coated Length of Cut 5/8 in Number of Flutes 5 Overall Length 3 in Shank Diameter 1/2 in Improved geometries Applicable for steel, stainless steel, cast iron, special alloys, 35-65Rc hardened steel and non-ferrous metals Enhanced corner protection necked, long and extra long lengths available Weldon shank flat options ALtima® Blaze is designed to allow higher material removal rates This coating has a higher oxidation temperature than a typical TiAlN coating It has shown very good results in nickel alloys, titanium, and other difficult to machine materials Tools coated with ALtima® Blaze can be used in dry machining Whisper blend transition between OD and neck Reduced vibration harmonics Improved part finishes Maintains cutting edge strength and sharpness for improved tool life Slotting at 1X Dia deep State of the art ALtima® Blaze PVD coating for superior tool life 0.09 in corner radius +0.000/-0.003 in tolerance D2 +0.000/-0.003 in tolerance D1 3200 HV microhardness 2012 deg F maximum service 0.35 friction coefficient
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 27850007B |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Helix Angle | 40 ° |
| Material | Carbide |
| Series | 278 |
| Standards | ISO 9001:2008 |
| Type | Center Cutting Square End |
| UPC 11 | 69760497217 |
| UPC 12 | 69760497217 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Cutter Diameter | 1/2 in |
| Finish | ALtima® Blaze Coated |
| Length of Cut | 5/8 in |
| Number of Flutes | 5 |
| Overall Length | 3 in |
| Shank Diameter | 1/2 in |
| Improved geometries |
| Applicable for steel, stainless steel, cast iron, special alloys, 35-65Rc hardened steel and non-ferrous metals |
| Enhanced corner protection necked, long and extra long lengths available |
| Weldon shank flat options |
| ALtima® Blaze is designed to allow higher material removal rates |
| This coating has a higher oxidation temperature than a typical TiAlN coating |
| It has shown very good results in nickel alloys, titanium, and other difficult to machine materials |
| Tools coated with ALtima® Blaze can be used in dry machining |
| Whisper blend transition between OD and neck |
| Reduced vibration harmonics |
| Improved part finishes |
| Maintains cutting edge strength and sharpness for improved tool life |
| Slotting at 1X Dia deep |
| State of the art ALtima® Blaze PVD coating for superior tool life |
| 0.09 in corner radius |
| +0.000/-0.003 in tolerance D2 |
| +0.000/-0.003 in tolerance D1 |
| 3200 HV microhardness |
| 2012 deg F maximum service |
| 0.35 friction coefficient |
