M.A. Ford®

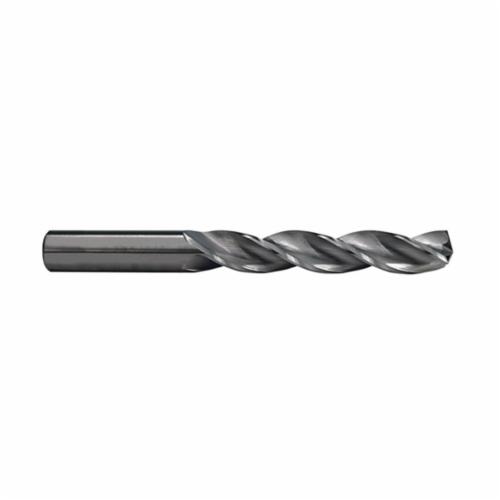

M.A. Ford® 22918750 Twister® AL 229 Jobber Length High Performance Drill, 3/16 in Dia x 2-3/4 in L, Solid Carbide
Custom_Product_Images_Illustration
M.A. Ford®
M.A. Ford® 22918750 Twister® AL 229 Jobber Length High Performance Drill, 3/16 in Dia x 2-3/4 in L, Solid Carbide
SKUPDW~7300146
MFGR #22918750
Your Cost: $116.22/ea
M.A. Ford® High Performance Drill, Jobber Length, Series: Twister® AL 229, 3/16 in Dia, 2-3/4 in Overall Length, 5XD Cutting Depth, 3 Flutes, Parabolic Flute, 1-5/8 in Flute Length, 3/16 in Shank, Straight Shank, 150 deg Point, Standard Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, Bright, Applicable Materials: Non-Ferrous Materials
M.A. Ford® High Performance Drill, Jobber Length, Series: Twister® AL 229, 3/16 in Dia, 2-3/4 in Overall Length, 5XD Cutting Depth, 3 Flutes, Parabolic Flute, 1-5/8 in Flute Length, 3/16 in Shank, Straight Shank, 150 deg Point, Standard Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, Bright, Applicable Materials: Non-Ferrous Materials
Applicable Materials Non-Ferrous Materials Catalog Number 22918750 Cutting Depth 5XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 3/16 in Drill Diameter Measurement System Imperial Flute Length 1-5/8 in Flute Type Parabolic Gross Weight Per Pack 1 lb Number of Flutes 3 Overall Length 2-3/4 in Point Type Standard Series 229 Shank Size 3/16 in Shank Type Straight Standards DIN 6537L Through Coolant No Type High Performance UNSPSC 23241605 UPC 11 69760422912 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Finish Bright Material Solid Carbide Point Angle 150 ° High performance 3-flute solid carbide drill was developed to obtain significantly increased speeds and feeds when drilling aluminum, cast iron and similar soft materials|3-flute parabolic flute design significantly improves chip evacuation for better hole quality, productivity and tool life|Drill 5X holes without pre-drilling or peck drilling|Drill point designed to be easily reground for maximum productive life Special 3 flute parabolic flute form for increased chip evacuation Solid carbide provides better rigidity than high speed steel It is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials Bright provides a smooth, polished finish on the tool Non-coolant through 30 deg Helix angle Web-thinned Tapered web configuration It increases chip flow in softer materials such as aluminum, wood and plastic Parabolic flutes are constructed with a wider flute shape for increased chip flow
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Applicable Materials | Non-Ferrous Materials |
| Catalog Number | 22918750 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 3/16 in |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 1-5/8 in |
| Flute Type | Parabolic |
| Gross Weight Per Pack | 1 lb |
| Number of Flutes | 3 |
| Overall Length | 2-3/4 in |
| Point Type | Standard |
| Series | 229 |
| Shank Size | 3/16 in |
| Shank Type | Straight |
| Standards | DIN 6537L |
| Through Coolant | No |
| Type | High Performance |
| UNSPSC | 23241605 |
| UPC 11 | 69760422912 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Finish | Bright |
| Material | Solid Carbide |
| Point Angle | 150 ° |
| High performance 3-flute solid carbide drill was developed to obtain significantly increased speeds and feeds when drilling aluminum, cast iron and similar soft materials|3-flute parabolic flute design significantly improves chip evacuation for better hole quality, productivity and tool life|Drill 5X holes without pre-drilling or peck drilling|Drill point designed to be easily reground for maximum productive life |
| Special 3 flute parabolic flute form for increased chip evacuation |
| Solid carbide provides better rigidity than high speed steel |
| It is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| Bright provides a smooth, polished finish on the tool |
| Non-coolant through |
| 30 deg Helix angle |
| Web-thinned |
| Tapered web configuration |
| It increases chip flow in softer materials such as aluminum, wood and plastic |
| Parabolic flutes are constructed with a wider flute shape for increased chip flow |
