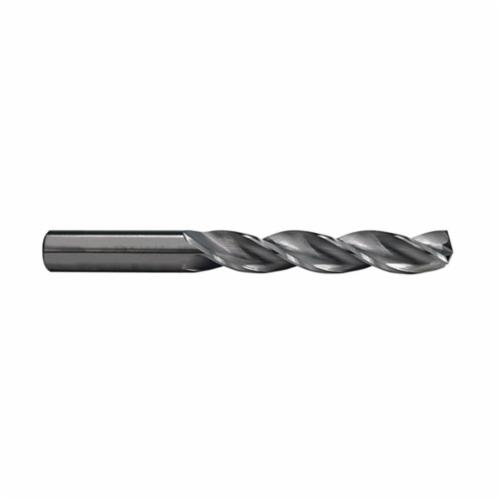

M.A. Ford® 22916950 Twister® AL 229 Jobber Length High Performance Drill, #18, 2-3/4 in L, Solid Carbide, Bright
Custom_Product_Images_Illustration
M.A. Ford® 22916950 Twister® AL 229 Jobber Length High Performance Drill, #18, 2-3/4 in L, Solid Carbide, Bright
SKU1042580
MFGR #22916950
Your Cost: $40.97/ea
List: M.A. Ford® High Performance Drill, Jobber Length, Series: Twister® AL 229, #18, 2-3/4 in Overall Length, 5XD Cutting Depth, 3 Flutes, Parabolic Flute, 1-5/8 in Flute Length, 0.1695 in Shank, Straight Shank, 150 deg Point, Standard Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, Bright, Applicable Materials: Non-Ferrous Materials
M.A. Ford® High Performance Drill, Jobber Length, Series: Twister® AL 229, #18, 2-3/4 in Overall Length, 5XD Cutting Depth, 3 Flutes, Parabolic Flute, 1-5/8 in Flute Length, 0.1695 in Shank, Straight Shank, 150 deg Point, Standard Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, Bright, Applicable Materials: Non-Ferrous Materials
Applicable Materials Non-Ferrous Materials Catalog Number 22916950 Cutting Depth 5XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Diameter Measurement System Imperial Drill Size ~ Wire #18 Flute Length 1-5/8 in Flute Type Parabolic Number of Flutes 3 Overall Length 2-3/4 in Point Type Standard Series 229 Shank Size 0.1695 in Shank Type Straight Standards DIN 6537L Through Coolant [Yes|No] No Type High Performance UPC 11 69760422948 UPC 12 69760422948 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Finish Bright Material Solid Carbide Point Angle 150 ° High performance 3-flute solid carbide drill was developed to obtain significantly increased speeds and feeds when drilling aluminum, cast iron and similar soft materials 3-flute parabolic flute design significantly improves chip evacuation for better hole quality, productivity and tool life Drill 5X holes without pre-drilling or peck drilling Drill point designed to be easily reground for maximum productive life Bright provides a smooth, polished finish on the tool Non-coolant through 30 deg Helix angle Web-thinned Tapered web configuration It increases chip flow in softer materials such as aluminum, wood and plastic Parabolic flutes are constructed with a wider flute shape for increased chip flow
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Applicable Materials | Non-Ferrous Materials |
| Catalog Number | 22916950 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Diameter Measurement System | Imperial |
| Drill Size ~ Wire | #18 |
| Flute Length | 1-5/8 in |
| Flute Type | Parabolic |
| Number of Flutes | 3 |
| Overall Length | 2-3/4 in |
| Point Type | Standard |
| Series | 229 |
| Shank Size | 0.1695 in |
| Shank Type | Straight |
| Standards | DIN 6537L |
| Through Coolant [Yes|No] | No |
| Type | High Performance |
| UPC 11 | 69760422948 |
| UPC 12 | 69760422948 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Finish | Bright |
| Material | Solid Carbide |
| Point Angle | 150 ° |
| High performance 3-flute solid carbide drill was developed to obtain significantly increased speeds and feeds when drilling aluminum, cast iron and similar soft materials |
| 3-flute parabolic flute design significantly improves chip evacuation for better hole quality, productivity and tool life |
| Drill 5X holes without pre-drilling or peck drilling |
| Drill point designed to be easily reground for maximum productive life |
| Bright provides a smooth, polished finish on the tool |
| Non-coolant through |
| 30 deg Helix angle |
| Web-thinned |
| Tapered web configuration |
| It increases chip flow in softer materials such as aluminum, wood and plastic |
| Parabolic flutes are constructed with a wider flute shape for increased chip flow |
