Lutron®

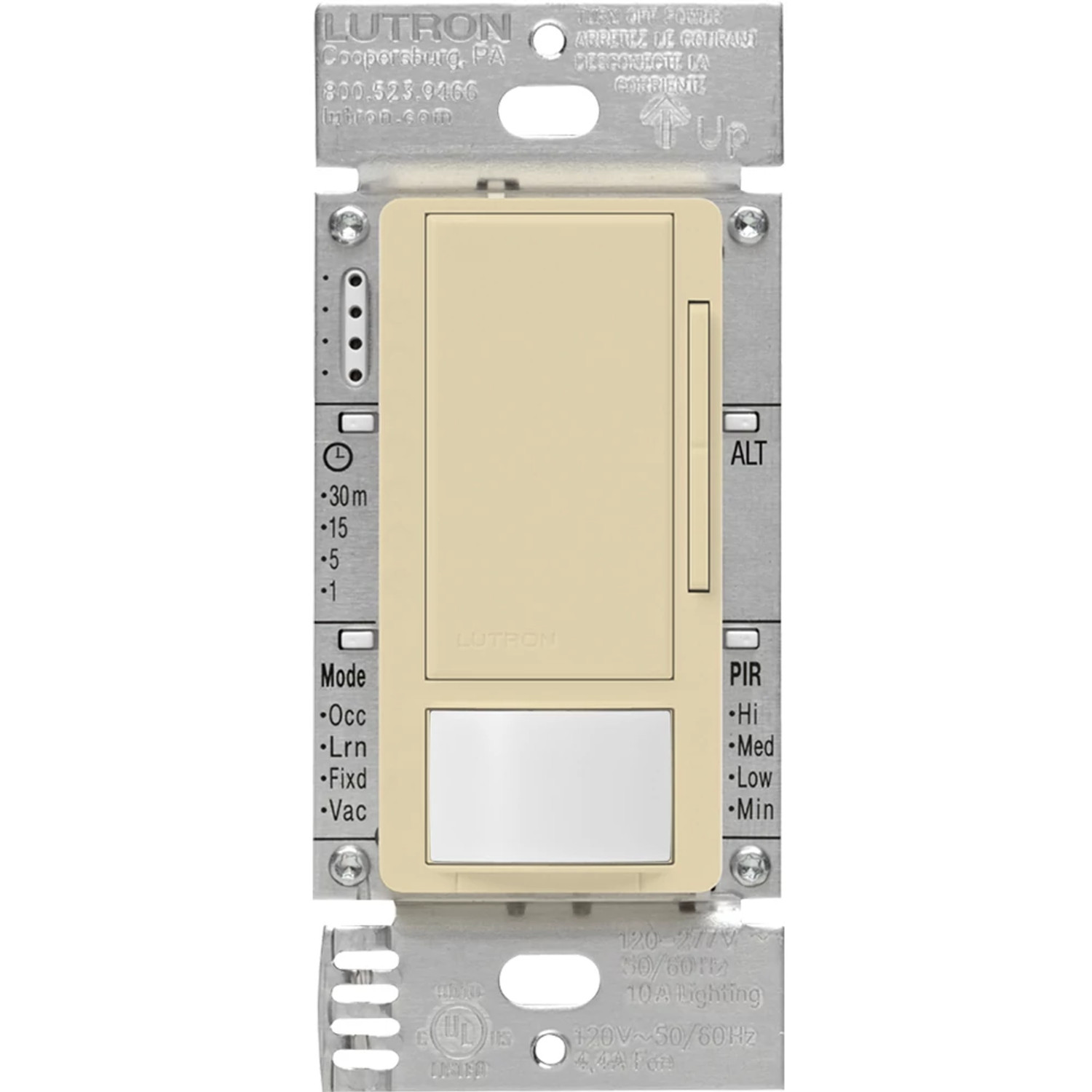

Lutron® MS-Z101-IV Maestro® MS-Z101 3-Way Occupancy Vacancy Sensor With 0 to 10 VAC Dimmer, 120 to 277 VAC, Passive Infrared Sensor
Custom_Product_Images_Illustration
Lutron®
Lutron® MS-Z101-IV Maestro® MS-Z101 3-Way Occupancy Vacancy Sensor With 0 to 10 VAC Dimmer, 120 to 277 VAC, Passive Infrared Sensor
SKU854351
MFGR #MS-Z101-IV
Your Cost: $90.00/ea
List: Lutron® Maestro™ 0 to 10 V dimmer sensors are lighting controls with passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. The Maestro™ 0-10 V dimmer sensor combines a Maestro™ 0 to 10 V dimmer with an occupancy orvacancy Sensor.
Lutron® Maestro™ 0 to 10 V dimmer sensors are lighting controls with passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. The Maestro™ 0-10 V dimmer sensor combines a Maestro™ 0 to 10 V dimmer with an occupancy orvacancy Sensor.
Amperage Rating 8 A Application Lighting Control ARRA Compliant N Body PLASTIC Brand Lutron® Buy American Compliant N Catalog Number MS-Z101-IV Color Ivory Connection Type Hard Wired Control Output Automatic ON/Automatic OFF/Manual ON/Automatic OFF Country of Origin CN Coverage 400 sq-ft Minor, 900 sq-ft Major Currency USD Dimensions 4-11/16 in H x 2-15/16 in W x 1-1/8 in D Enclosure Plastic Enclosure Type NEMA WD7 Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only. EU RoHS Indicator N Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.3200 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Height 4.50 in Height [Metric] 11.4300 cm Lamp Type Fluorescent/LED Length 2.40 in Length [Metric] 6.0960 cm Load 8 A/0-10VDC Manufacturer Lutron Electronics Co., Inc Mounting Wallbox Mounting Type Wall Operating Temperature 32 to 104 °F Response Frequency 50/60 Hz Sensing Range 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage Sensor Yes Sensor Type Passive Infrared Series MS-Z101 Standard UL, cUL, Title 20/24 certified Standards cULus ListedTitle 20/24 Compliant Stock Status NONSTOCK Sub Brand Maestro Supply Voltage 120 to 277 VAC Temperature Rating 32 to 104 °F Time Delay 10 s Type Occupancy/Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V UNSPSC 39122236 UPC 11 78427609986 UPC 12 784276099868 Viewing Angle 180 ° Voltage Rating 120 to 277 VAC Width 3.40 in Width [Metric] 8.6360 cm Lighting Control Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert Controls 0 to 10 VDC electronic fluorescent ballasts or LED driver load types Passive infrared motion detection with exclusive Lutron® XCT™ technology for fine motion detection Up to 30 x 30 ft (9 x 9 m) [900 sq-ft (81 sq-m)] major motion coverage and 20 x 20 ft (6 x 6 m) [400 sq-ft (36 sq-m)] minor motion coverage Adjustable settings for auto-on light level (occupied level) 100%, 50%, last light level or locked preset light level High, medium, low, minimum adjustable sensitivity level Off warning fades lights to off over a period of 10 s Adaptive switching algorithm for extended relay life Smart ambient light detection (ALD) High end trim and low end trim to adjust maximum and minimum light levels Selectable dimming curve linear or square law
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Amperage Rating | 8 A |
| Application | Lighting Control |
| ARRA Compliant | N |
| Body | PLASTIC |
| Brand | Lutron® |
| Buy American Compliant | N |
| Catalog Number | MS-Z101-IV |
| Color | Ivory |
| Connection Type | Hard Wired |
| Control Output | Automatic ON/Automatic OFF/Manual ON/Automatic OFF |
| Country of Origin | CN |
| Coverage | 400 sq-ft Minor, 900 sq-ft Major |
| Currency | USD |
| Dimensions | 4-11/16 in H x 2-15/16 in W x 1-1/8 in D |
| Enclosure | Plastic |
| Enclosure Type | NEMA WD7 |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.3200 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Lamp Type | Fluorescent/LED |
| Length | 2.40 in |
| Length [Metric] | 6.0960 cm |
| Load | 8 A/0-10VDC |
| Manufacturer | Lutron Electronics Co., Inc |
| Mounting | Wallbox |
| Mounting Type | Wall |
| Operating Temperature | 32 to 104 °F |
| Response Frequency | 50/60 Hz |
| Sensing Range | 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage |
| Sensor | Yes |
| Sensor Type | Passive Infrared |
| Series | MS-Z101 |
| Standard | UL, cUL, Title 20/24 certified |
| Standards | cULus ListedTitle 20/24 Compliant |
| Stock Status | NONSTOCK |
| Sub Brand | Maestro |
| Supply Voltage | 120 to 277 VAC |
| Temperature Rating | 32 to 104 °F |
| Time Delay | 10 s |
| Type | Occupancy/Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V |
| UNSPSC | 39122236 |
| UPC 11 | 78427609986 |
| UPC 12 | 784276099868 |
| Viewing Angle | 180 ° |
| Voltage Rating | 120 to 277 VAC |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Lighting Control |
| Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert |
| Controls 0 to 10 VDC electronic fluorescent ballasts or LED driver load types |
| Passive infrared motion detection with exclusive Lutron® XCT™ technology for fine motion detection |
| Up to 30 x 30 ft (9 x 9 m) [900 sq-ft (81 sq-m)] major motion coverage and 20 x 20 ft (6 x 6 m) [400 sq-ft (36 sq-m)] minor motion coverage |
| Adjustable settings for auto-on light level (occupied level) 100%, 50%, last light level or locked preset light level |
| High, medium, low, minimum adjustable sensitivity level |
| Off warning fades lights to off over a period of 10 s |
| Adaptive switching algorithm for extended relay life |
| Smart ambient light detection (ALD) |
| High end trim and low end trim to adjust maximum and minimum light levels |
| Selectable dimming curve linear or square law |
