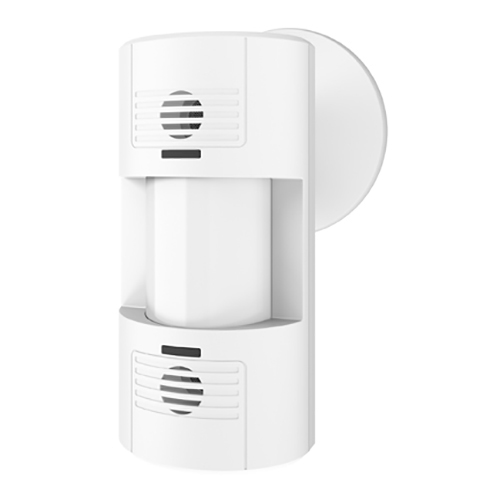

Lutron® LOS-WDT-R-WH LOS-W Occupancy Sensor, 20 to 24 VDC, Ultrasonic/Passive Infrared Sensor, 1600 sq-ft Coverage, 110 deg
Wall Mount Occupancy Sensors
531392
MFG #: LOS-WDT-R-WH
Lutron®
202.50000
/ ea
The LOS W series wall mount occupancy sensors are used in spaces with pendant fixtures, ceiling fans, or high ceilings. The passive infrared (PIR) version is well suited for major motion. The dual-technology versions detects minor motion via ultrasonic (US) technology to ensure optimal power savings and occupancy detection.
- Brochure URL - 10977_PXFSYGNADOBL6IVC.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - Sensor-Lutron-Wall_Mount-Occupancy-12ft-LOS-WDT.rfa(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 10977_JDRW26FZ4N9CX1GI.pdf(Install Instructions 1 URL)
- http://www.lutron.com(Seller Home Page URL)
- Spec Sheet URL - 10977_0XYFC1ZKDPOW2NIL.pdf(Spec Sheet URL)
- Install Instructions URL - 031259a.pdf(Install Instructions URL)
- Tech Drawing URL - CADDownloads.aspx(Tech Drawing URL)
- Warranty URL - 369-119_Wallbox_Warranty.pdf(Warranty URL)
- Warranty URL - 10977_FACWP0X3TQZG6S52.pdf(Warranty URL)
- Spec Sheet URL - LOS-WDT%20Series.pdf(Spec Sheet URL)
- Applications
- Features
| Lighting Control |
| Can be mounted to a wall or ceiling for use in spaces with pendant fixtures, ceiling fans, or high ceilings (higher than 12 ft (3.7 m). The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product. Designed to meet the challenges found in a wide variety of spaces, the sensor works well in spaces with overhead fans and space heaters. Ideal for use in work areas, storage facilities, storerooms, indoor garages, and rooms with pendant fixtures. Intelligent, continually adapting sensor. Ultrasonic (US) combined with Passive Infrared (PIR) sensing provides high sensitivity, high noise immunity, and excellent false tripping immunity. The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors. Suited for complex environments that are difficult to control with single-technology sensors. Flexible base mounting on wall or ceiling. Aim and lock: base mount permits fast alignment. Non-volatile memory: settings saved in protected memory are not lost during power outages. 1600 ft2 (148 m2) coverage when used where the ceiling height is between 8 to 12 ft (2.4 to 3.7 m). Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system. |
| Features self-adaptive technology that eliminates the need for manual range adjustment |
| After proper mounting, the sensors automatically adjust sensitivity and timing to prevent false-off and false-on conditions |
| Can control other building systems such as HVAC or security systems |
| Range of 1600 sq-ft if mounted at 8 to 12 ft from floor |
| 8 second test mode to easily confirm proper operation |
| Model with additional output (dry contact closure), non-volatile memory (saved changes are stored during loss of power) |
| Integrate with Lutron® systems (no power pack needed) or function as stand alone controls using a Lutron® power pack |
| 20-24 VDC, class 2 (PELV) low-voltage wiring, dual-technology (PIR and US) with second output |
| Self-adaptive sensors automatically adjust sensitivity and timing |
| Dual technology sensor |
| 4 to 30 min (manual), 8 sec (test) time delay |
