Lutron®

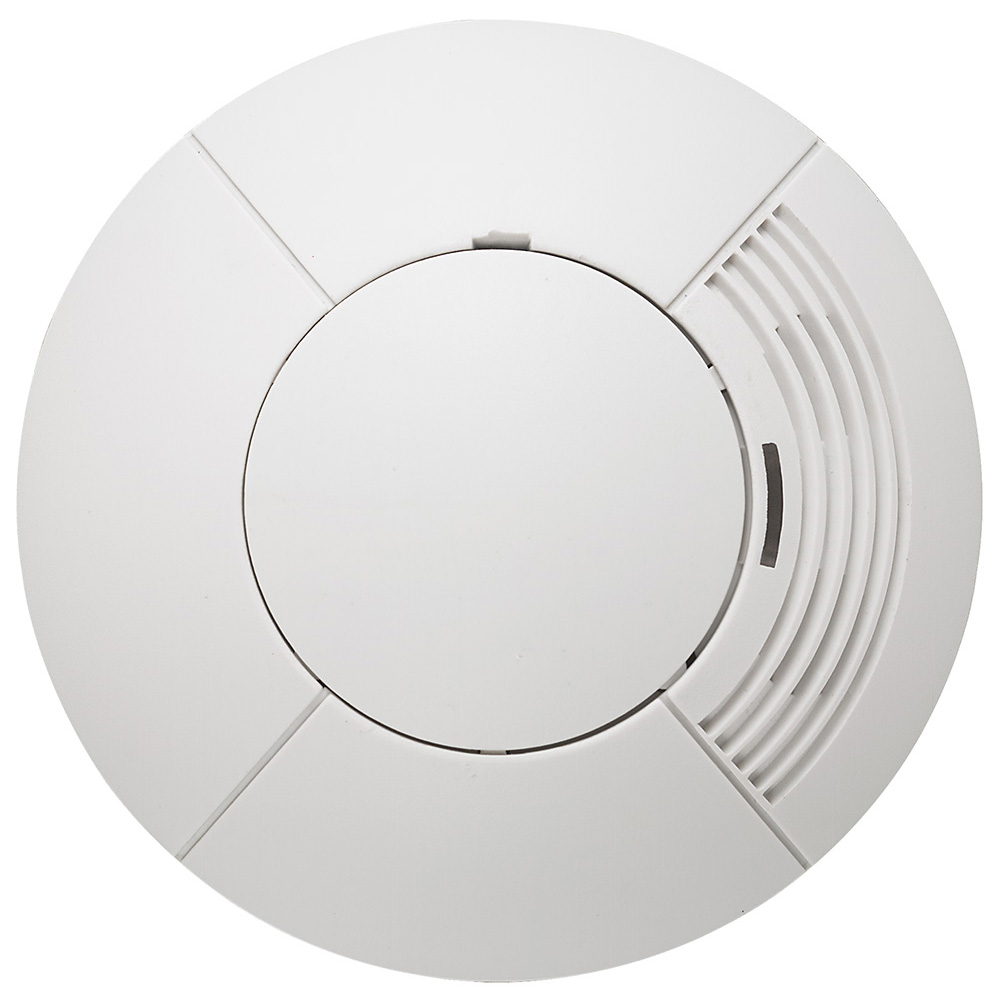

Lutron® LOS-CUS-500-WH LOS-CUS Occupancy Sensor, 20 to 24 VDC, Dual (Ultrasonic and Passive Infrared) Sensor, 500 sq-ft Coverage
Lutron®
Lutron® LOS-CUS-500-WH LOS-CUS Occupancy Sensor, 20 to 24 VDC, Dual (Ultrasonic and Passive Infrared) Sensor, 500 sq-ft Coverage
SKU442019
MFGR #LOS-CUS-500-WH
Price Not Available
List: The LOS-CUS series ultrasonic ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. Any movement within the range of the sensor causes a shift in the original emitted frequency. The receiver on the sensor identifies any change in frequency as motion and either turns the lights on or keeps the lights on.
The LOS-CUS series ultrasonic ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. Any movement within the range of the sensor causes a shift in the original emitted frequency. The receiver on the sensor identifies any change in frequency as motion and either turns the lights on or keeps the lights on.
Amperage Rating 33 mA Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number LOS-CUS-500-WH Color White Connection Type 6 in Lead Wire Control Output 20 to 24 VDC Country of Origin CN Currency USD Dimensions 4.5 in Dia x 1.4 in D Enclosure Plastic Environmental Conditions Relative humidity less than 95 percent, non-condensing. For indoor use only EU RoHS Indicator N Gross Volume Per Pack 0.07 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.5300 lb Gross Weight per Pack Metric 0.27 Gross Weight UOM Metric kg Height 7.10 in Height [Metric] 18.0340 cm Length 5.70 in Length [Metric] 14.4780 cm Material Plastic Mounting Ceiling Operating Temperature 32 to 104 °F Sensing Range 500 ft2 (46 m2), 180 degree field of view Series LOS-CUS Standard UL, cUL Standards UL, cUL Listed Sub Brand LOS-CUS series Supply Voltage 20 to 24 VDC Temperature Rating 32 to 104 °F Time Delay 8 to 30 min Manual, 8 sec Test Type Ultrasonic ceiling-mount sensor UNSPSC 39122230 UPC 11 02755718197 UPC 12 027557181976 Width 2.90 in Width [Metric] 7.3660 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Coverage 500 ft² Mounting Type Ceiling Sensor Type Passive/Ultrasonic Infrared Viewing Angle 180 ° Voltage Rating 20 to 24 VDC Lighting Control Can integrate into Lutron system or function as a stand-alone control using Lutron power pack. Any movement within the range of the sensor causes a shift in the original emitted frequency. The receiver on the sensor identifies any change in frequency as motion and either turns the lights on or keeps the lights on. Intelligent, continually adapting ultrasonic sensor technology eliminates manual sensitivity and time adjustments during installation and over the life of the product. Snap-locks to ceiling-mounted cover plate. Excellent minor motion sensitivity. Non-volatile memory: settings saved in protected memory are not lost during power outages. 500 ft2 to 2000 ft2 (46 m2 to 185 m2) coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling. Afford choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system. Provides reliable detection with high minor motion detection. The internal microprocessor analyzes the information from the ultrasonic technology and determines the optimum setting to use in order to properly cover the space. Should the room be reconfigured (e.g. new furniture), the software will adapt to continue to provide correct time out for the lights. Intelligent, continually adapting ultrasonic sensor provides reliable detection with high minor motion detection The intelligent, continually adapting sensor technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product The internal microprocessor analyzes the information from the ultrasonic technology and determines the optimum setting to use in order to properly cover the space Snap locks to ceiling mounted cover plate Excellent minor motion sensitivity Non-volatile memory, settings saved in protected memory are not lost during power outages 500 to 2000 sq-ft coverage when mounted on an 8 to 12 ft ceiling Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system Injection molded plastic
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 33 mA |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LOS-CUS-500-WH |
| Color | White |
| Connection Type | 6 in Lead Wire |
| Control Output | 20 to 24 VDC |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.5 in Dia x 1.4 in D |
| Enclosure | Plastic |
| Environmental Conditions | Relative humidity less than 95 percent, non-condensing. For indoor use only |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 0.07 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.5300 lb |
| Gross Weight per Pack Metric | 0.27 |
| Gross Weight UOM Metric | kg |
| Height | 7.10 in |
| Height [Metric] | 18.0340 cm |
| Length | 5.70 in |
| Length [Metric] | 14.4780 cm |
| Material | Plastic |
| Mounting | Ceiling |
| Operating Temperature | 32 to 104 °F |
| Sensing Range | 500 ft2 (46 m2), 180 degree field of view |
| Series | LOS-CUS |
| Standard | UL, cUL |
| Standards | UL, cUL Listed |
| Sub Brand | LOS-CUS series |
| Supply Voltage | 20 to 24 VDC |
| Temperature Rating | 32 to 104 °F |
| Time Delay | 8 to 30 min Manual, 8 sec Test |
| Type | Ultrasonic ceiling-mount sensor |
| UNSPSC | 39122230 |
| UPC 11 | 02755718197 |
| UPC 12 | 027557181976 |
| Width | 2.90 in |
| Width [Metric] | 7.3660 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Coverage | 500 ft² |
| Mounting Type | Ceiling |
| Sensor Type | Passive/Ultrasonic Infrared |
| Viewing Angle | 180 ° |
| Voltage Rating | 20 to 24 VDC |
| Lighting Control |
| Can integrate into Lutron system or function as a stand-alone control using Lutron power pack. Any movement within the range of the sensor causes a shift in the original emitted frequency. The receiver on the sensor identifies any change in frequency as motion and either turns the lights on or keeps the lights on. Intelligent, continually adapting ultrasonic sensor technology eliminates manual sensitivity and time adjustments during installation and over the life of the product. Snap-locks to ceiling-mounted cover plate. Excellent minor motion sensitivity. Non-volatile memory: settings saved in protected memory are not lost during power outages. 500 ft2 to 2000 ft2 (46 m2 to 185 m2) coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling. Afford choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system. Provides reliable detection with high minor motion detection. The internal microprocessor analyzes the information from the ultrasonic technology and determines the optimum setting to use in order to properly cover the space. Should the room be reconfigured (e.g. new furniture), the software will adapt to continue to provide correct time out for the lights. |
| Intelligent, continually adapting ultrasonic sensor provides reliable detection with high minor motion detection |
| The intelligent, continually adapting sensor technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product |
| The internal microprocessor analyzes the information from the ultrasonic technology and determines the optimum setting to use in order to properly cover the space |
| Snap locks to ceiling mounted cover plate |
| Excellent minor motion sensitivity |
| Non-volatile memory, settings saved in protected memory are not lost during power outages |
| 500 to 2000 sq-ft coverage when mounted on an 8 to 12 ft ceiling |
| Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system |
| Injection molded plastic |
